FMVSS305

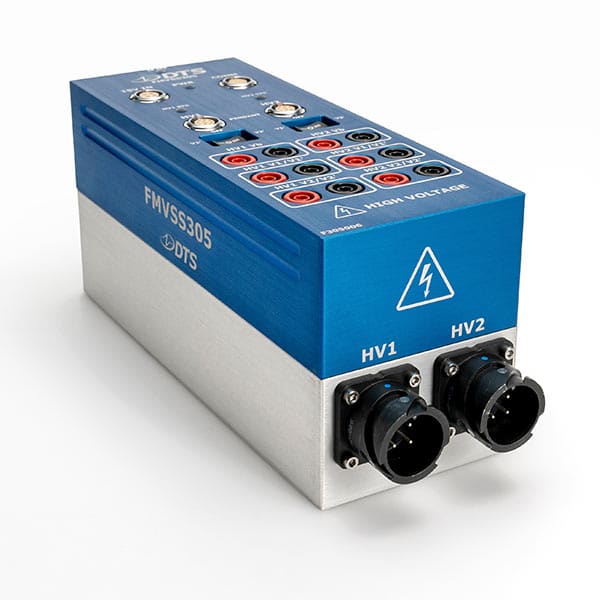

This crashworthy, high-voltage recording device provides a safe and reliable way to capture battery and drive system voltages for testing EV and Hybrid new energy vehicles (NEVs). The FMVSS305 can operate standalone or with DTS SLICE data acquisition systems and software.
FMVSS305
SPECIFICATIONS

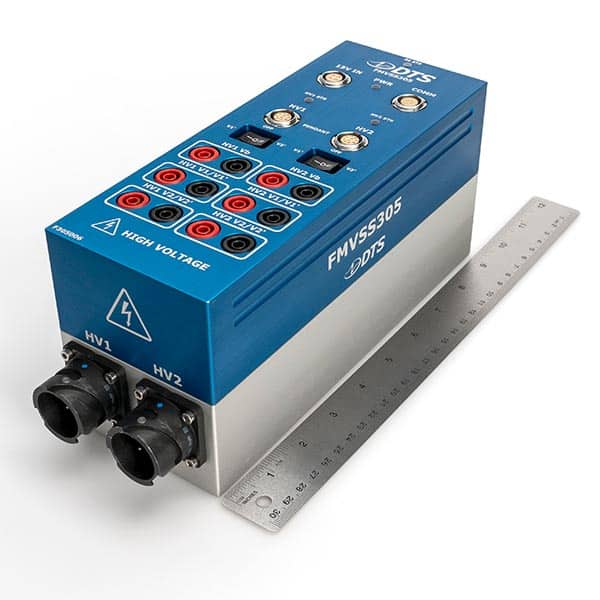

| Physical | 262 x 90 x 110 mm, 2.7 kg |

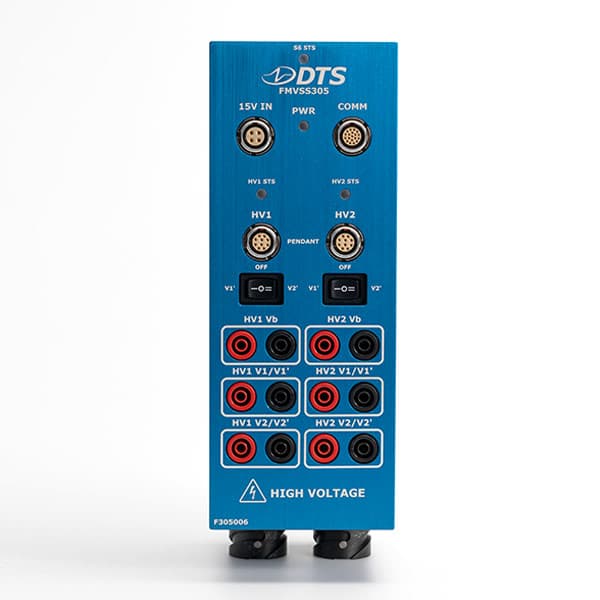

| Features | Rugged; LED status indicators for HV inputs, system power, and SLICE6 DAQ measurements, standalone or DTS solutions |
| DAQ |
Built-in, 6-channel SLICE6 data acquisition module records measurement during dynamic test |
| Shock Rating | 100 g |
| Data Storage | Data writes to 16 GB non-volatile flash memory |
| Voltage Inputs | Fully isolated inputs up to ±1,200 volts |
| Environmental | 10° to 40°C, ESD(8kV) |
| Software Interface |
DataPRO software with SLICE & TDAS data acquisition systems Works standalone, includes FMVSS-compliant manual test switches |
| Mounting | Compatible with SLICE PRO mounting plates |
FMVSS305 RESOURCES
FEATURES
FEATURES
|
High Performance
|
• Crashworthy, factory testing to 100 g |
| • Fully isolated inputs up to ±1,200 volts via non-conductive connectors | |
| • Fully isolated voltage monitoring outputs with 1,000 to 1 dividers | |
|
Versatile
|
• Captures crucial voltage data during crash tests |
| • Collects key HV1′ and HV2′ measurements both before and after the event |
|
|
Custom Configurable
|
• Integrates with SLICE or TDAS data acquisition systems |
| • Standalone option | |
| • FMVSS305-compliant manually operated test switches |
|
|
Comprehensive Software
|
• DTS DataPRO set-up, control, and data viewing software |
| • Advanced test set-up features and diagnostics tools |

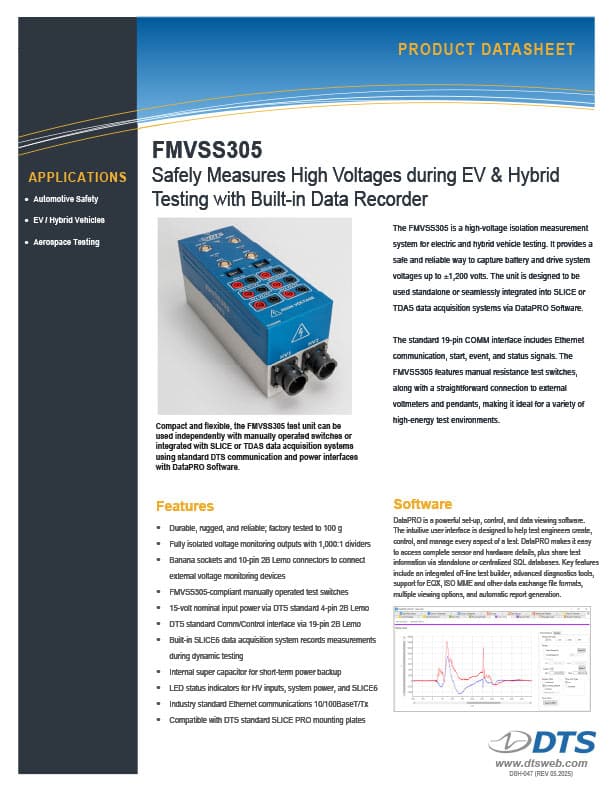

DATASHEET
PRODUCT DOCUMENTATION
PRODUCT DOCUMENTATION
FMVSS305 APPLICATIONS
Crash Test Top Banner Photo Credit: IIHS
