TSR AIR
The TSR AIR is a universal data logger with built-in 6DOF (6 degree-of-freedom) for shock and vibration testing. The ultra-small, rugged TSR AIR features real-time streaming making it ideal for shock testing, inertial measurements, vibration modalities and asset tracking.
TSR AIR
SPECIFICATIONS
| Physical | 43 x 43 x 15 mm, 50 grams |
| Features | Standalone, 11 built-in sensors, onboard memory, plus real-time streaming capabilities |
| Sampling | 100 to 20k sps, programmable (Recording or Streaming Mode) |
| Sensors |
Low-g Accelerometers (Vibration) High-g Accelerometers (Shock) Angular Rate Sensors (Angular Velocity) Environmental Sensors (Temperature & Pressure) |
| Shock Rating | 500 g |
| Data Storage | Data writes to 16 GB non-volatile flash memory |
| Synchronization | IEEE 1588 PTP, IRIG-B122, GPS/1PPS, RTC |
| Environmental | -40° to 60°C, IP67 |
| Software | DataPRO, API |
| Calibration | NIST traceable, ISO 17025 (A2LA Accredited) |
TSR AIR RESOURCES
FEATURES
FEATURES
|
Low SWaP
|
• Ultra-low Size, Weight and Power (SWaP) |
| • Quick installation and easy test set-up |
|
| • Battery operated, advanced power management system |
|
| • Doesn’t alter test dynamics even on small test articles | |
|
High Performance
|
• “Sleep & Wake” feature extends battery life up to months |
| • Programmable sampling rates; synchronization options |
|
| • High shock rated for dynamic test environments | |
|
Flexible
|
• Works standalone, networked or integrated into existing FTI systems, as well as with SLICE6 AIR |
| • Onboard recording and real-time streaming capabilities |
|
| • Embedded sensors: accelerometers, angular rate, temperature, pressure |
|
|
Comprehensive Software
|
• Simple, intuitive Windows software for set-up, control and data viewing |
| • Includes test set-up features and diagnostics tools | |
| • API for user-developed application support |

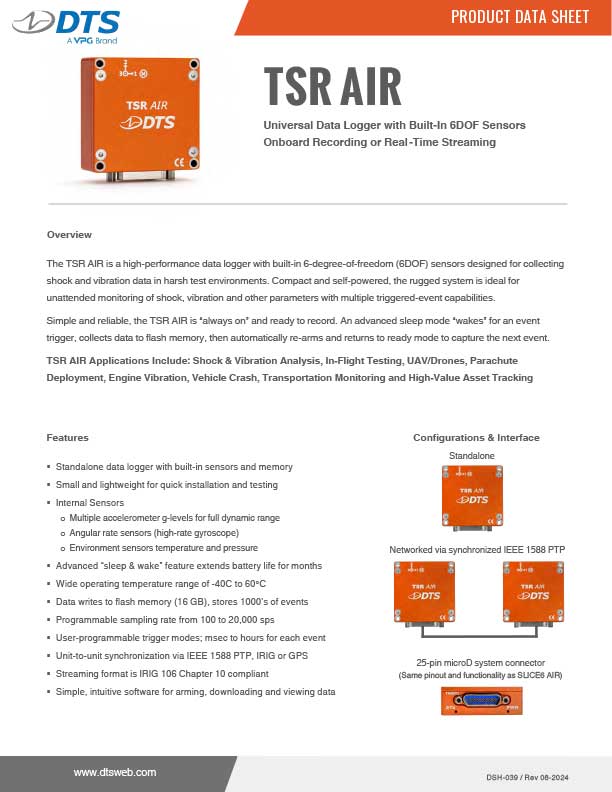

DATASHEET
DATASHEET
SOFTWARE
SOFTWARE
DataPRO Software
Easy-to-use Windows application designed specifically to support TSR AIR; includes sensor database, diagnostics, arming, downloading, data viewing and PSD analysis
Click here for more info on DataPRO
DataPRO Software
Easy-to-use Windows application designed specifically to support TSR AIR; includes sensor database, diagnostics, arming, downloading, data viewing and PSD analysis.
Click here for more info on DataPRO
ACCESSORIES
ACCESSORIES
CLICK FOR FULL SIZE IMAGE
TSR AIR End-of-Chain Device Cable Kit
The End-of-Chain connects directly to the TSR AIR system connector to control onboard recording functions:
• On/off switch
• Start record
• Event/T=0
• Status LED
Kit includes: End-of-Chain (EOC) Interface, EOC Cable, Ethernet (RJ45) to USB 3.0 Adapter and Power Supply.
CLICK FOR FULL SIZE IMAGE
TSR AIR Test Device Cable Kit
The Test Device connects directly to the TSR AIR system connector to support time synchronization (1588 PTPv2, IRIG-B, GPS/1PPS) and control onboard recording functions:
• On/off switch
• Start record
• Event/T=0
• Status LED
Kit includes: TSR AIR Test Device and Power Supply.
