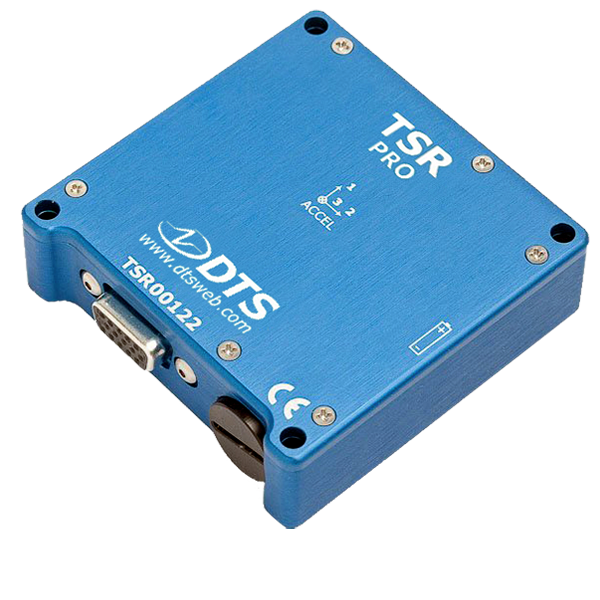

TSR PRO
Rugged compact triaxial accelerometer data logger for unattended shock and vibration monitoring in dynamic test environments.
View Product Manual

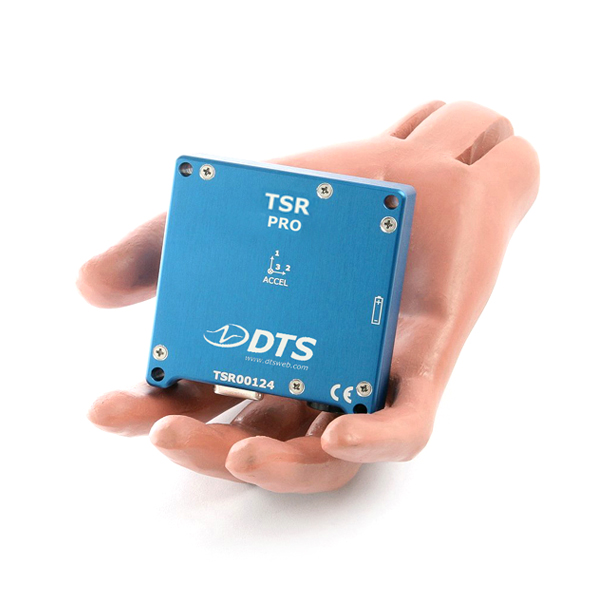

Small Size
Rugged
Versatile
Onboard
Availability
Support
FEATURES
- Size: 72 x 72 x 22 mm, 237 g
- Sensors: 3 built-in accelerometers, multiple sensor ranges
- Sampling rate: 1,000 to 20,000 sps/channel, programmable
- Shock rating: 500 g operating; 2000 g survivable
- Environmental: -20°C to 60°/85°C, IP67
- Data storage: 1 GB non-volatile flash memory, stores up to 2,000 events
- Power: Internal rechargeable or primary battery options
- Communication: USB
Highlights
Simple Operation & Setup
TSR PRO packages sensing, power, signal conditioning, and storage into one compact data logger. It’s simple to set up for short-duration tests and long-term unattended monitoring, including NASA’s Artemis 1 Mission to the moon.
Event Capacity for Repeat Testing
With storage for up to 2,000 events and extended continuous recording capability, the TSR PRO time-stamps and date-stamps each event, making it ideal as a backup redundancy unit.
Rugged Portable Package

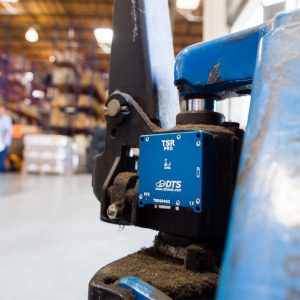

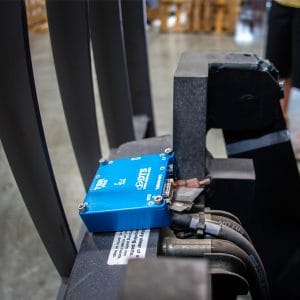

The sealed IP67 high-shock-rated enclosure makes the TSR PRO suitable for field, transport, and onboard measurements in harsh test environments.
Power Options
TSR PRO is self-powered and offers two battery options: a lithium USB-rechargeable battery or a non-rechargeable battery. External battery packs are also available to support extended use cases.

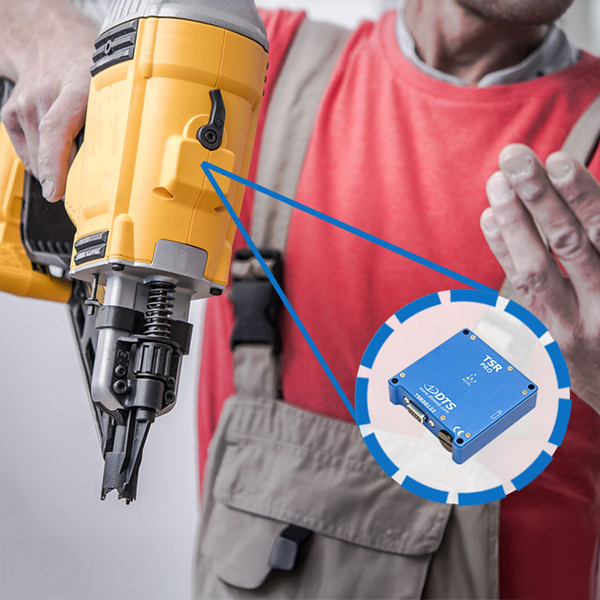

Applications
TSR PRO is suited to shock and vibration programs that need a self-powered recorder with fast setup and repeatable acceleration data. It works well in test environments where engineers want reliable event capture without the size, wiring, or infrastructure of a larger data acquisition system.
Applications include:
SOFTWARE
TSR Control

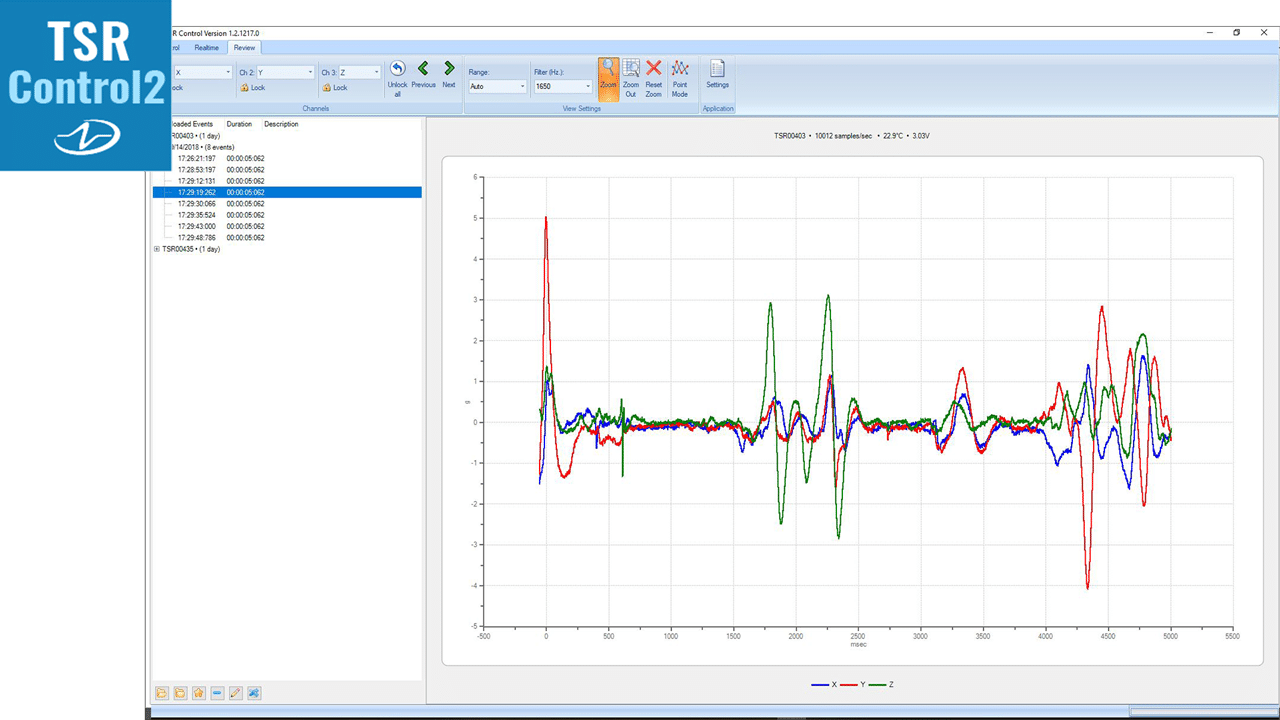

TSR Control is the user-friendly set-up, control and viewing software for the entire line of TSR data loggers. An intuitive interface makes it easy to configure the recorder, view real-time sensor output and review time-history data. Via a PC, users can set the record time (seconds), trigger threshold (g) per axis, and download individual or multiple events stored in flash memory. TSR Control also includes tools for zoom, filtering and Head Injury Criteria (HIC) calculations.
- MODELS
- ACCESSORIES

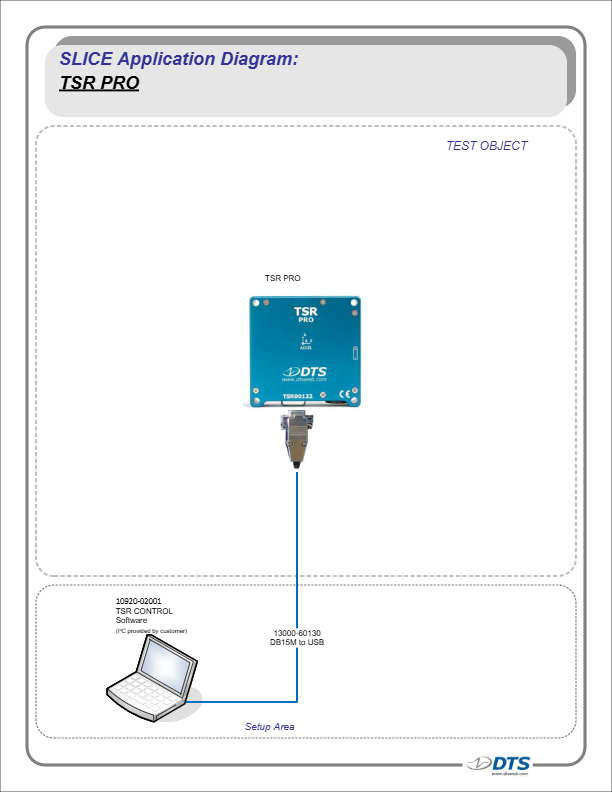

- APPLICATION DIAGRAMS
TSR PRO

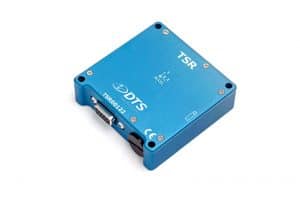

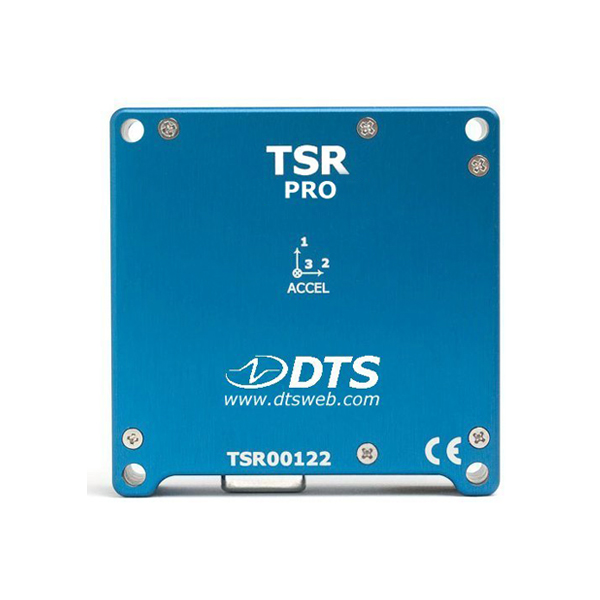

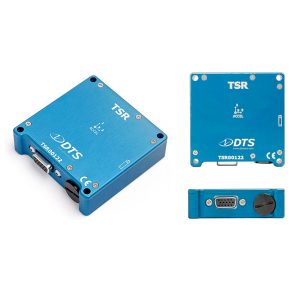

TSR PRO is a compact, rugged data logger with built-in triaxial accelerometers. Designed to measure acceleration forces in dynamic test environments, it is Ideal for both short-duration tests and long-term monitoring. TSR PRO is rugged and crashworthy.
SEE PRODUCT OPTIONS →
TSR Control Software
TSR Control Software is an intuitive setup, control, and viewing software for TSR data loggers. The user interface makes it easy to configure the recorder, view real-time sensor output, and review time-history data.
SEE ACCESSORY OPTIONS →
