Miniature Data Acquisition Systems
DTS data acquisition systems are built to capture reliable, measurements in harsh testing environments. Designed for automotive crash testing, aerospace, defense testing, and industrial applications, DTS DAQ solutions measure critical sensor data such as shock, vibration, acceleration, force, strain, pressure, temperature, and voltage. With miniature, rugged, SWaP-optimized designs for onboard testing, and vehicle-based setups, Diversified Technical Systems helps engineers reduce cable complexity, improve data quality, and capture measurements in critical moments.

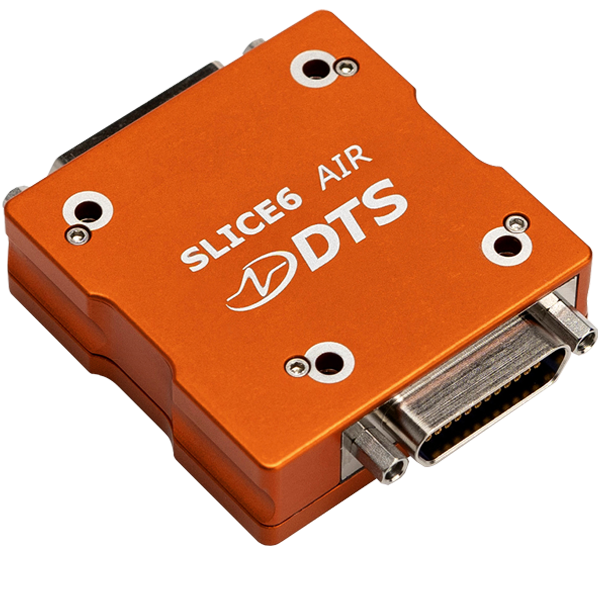

SLICE6 AIR
- SWaP-optimized Ethernet-based data acquisition unit
- Universal analog sensor support, standalone or network
- Real-time streaming and/or onboard recording

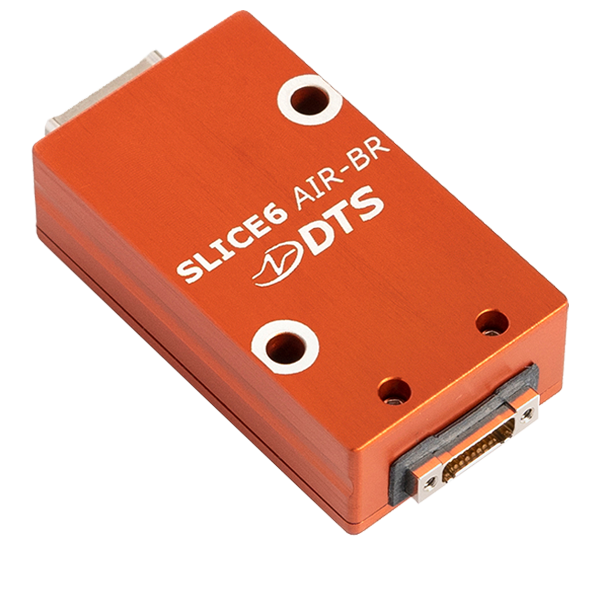

SLICE6 AIR-BR
- Industry’s smallest Ethernet-based data acquisition unit
- Strain, voltage, piezo-resistive sensor support
- Real-time streaming and/or onboard recording
SLICE6 AIR-TC
- 24-channel Ethernet-based data acquisition unit
- Supports Type K, S, T & E thermocouples
- Real-time streaming
SLICE6 LEO
- Radiation-tolerant data acquisition unit; SWaP-optimized
- Universal analog sensor support, standalone or network
- Real-time streaming and/or onboard recording

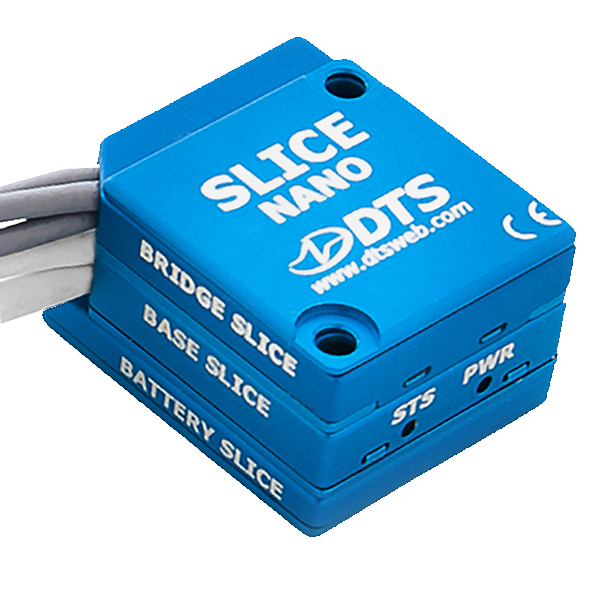

SLICE NANO
- Smallest expandable, USB-based data acquisition system
- Analog sensor support, stack battery option available
- Onboard recording to non-volatile flash memory

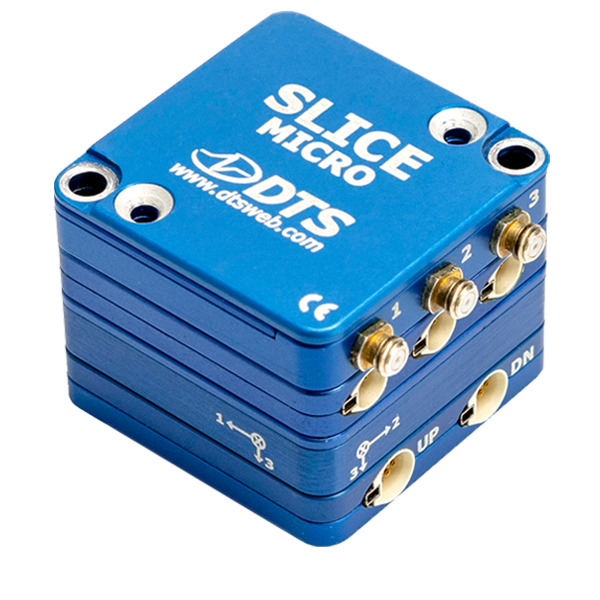

SLICE MICRO
- Expandable, USB-based data acquisition system
- Analog & embedded sensor support, IP68 option available
- Onboard recording to non-volatile flash memory

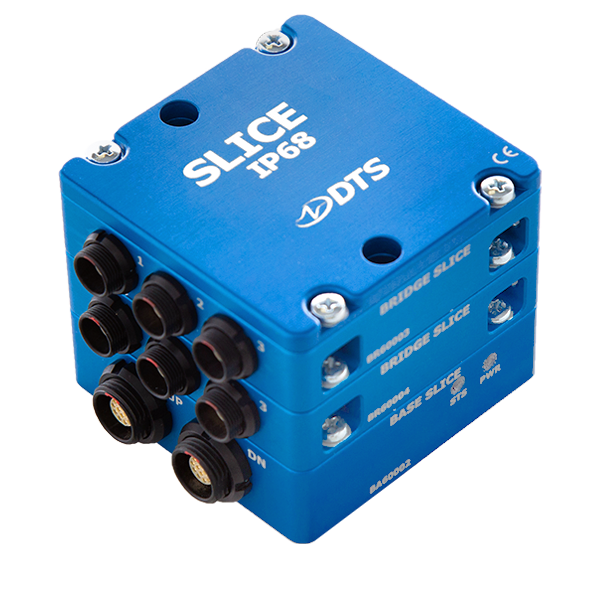

SLICE IP68
- Waterproof, expandable, USB-based data acquisition system
- Analog sensor support, embedded sensor options
- Onboard recording, plus optional Power Pack available

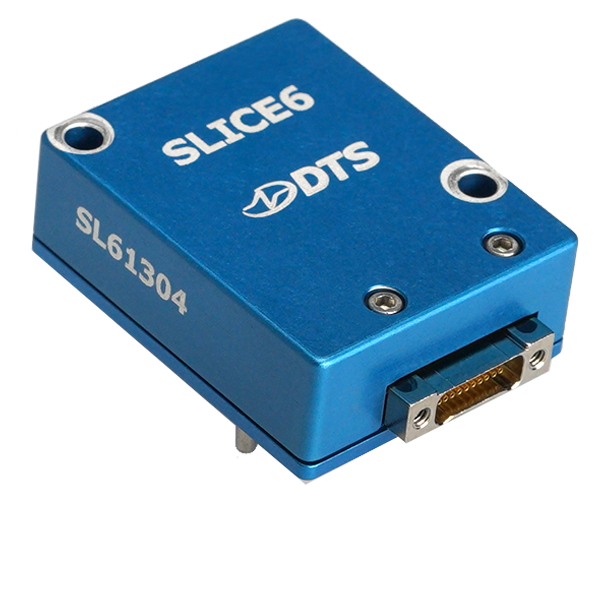

SLICE6 / SLICE6 HB
- Ethernet-based data acquisition for in-dummy/ATD applications
- Distributed solution
- Direct-mount options for load cells, 6DOF & traditional sensor interface

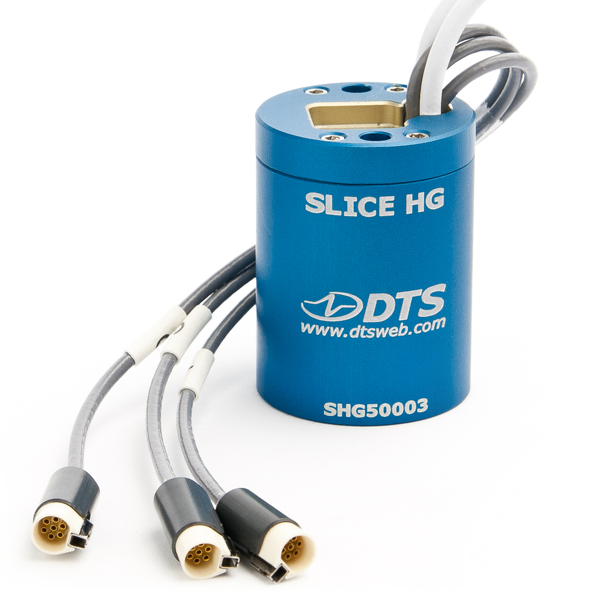

SLICE HG
- Highest rated miniature shock/blast data acquisition system
- 20,000 g shock survivable package, 500 ksps/channel
- Onboard recording to non-volatile flash memory

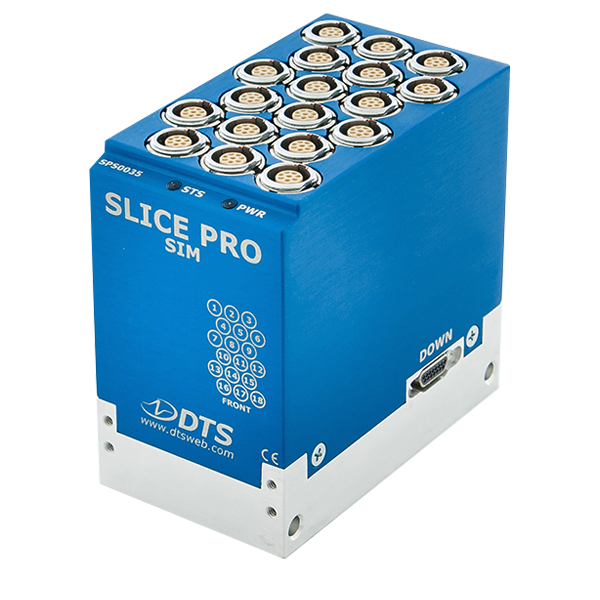

SLICE PRO
- Modular family of onboard data acquisition solutions
- Configurable modules: sensor & digital inputs, timed outputs, trigger distribution, Ethernet & USB controllers

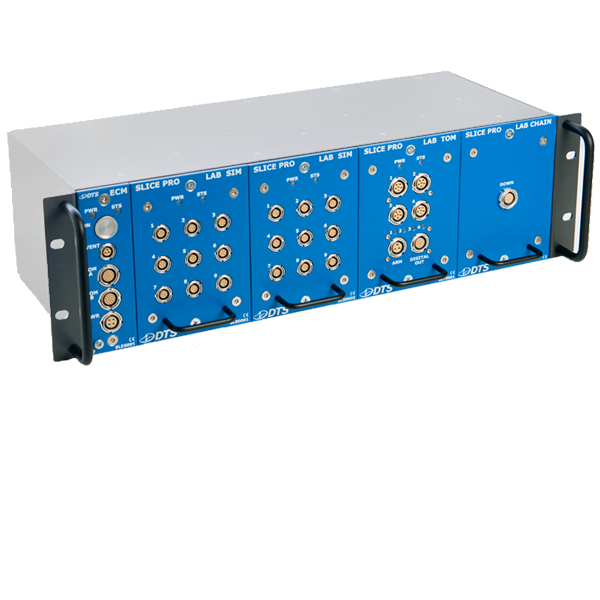

SLICE PRO LAB
- Laboratory, non-rugged DAS solution
- Configurable modules: sensor & digital inputs, timed outputs, plus Ethernet controller
- Fits standard 19″ rack

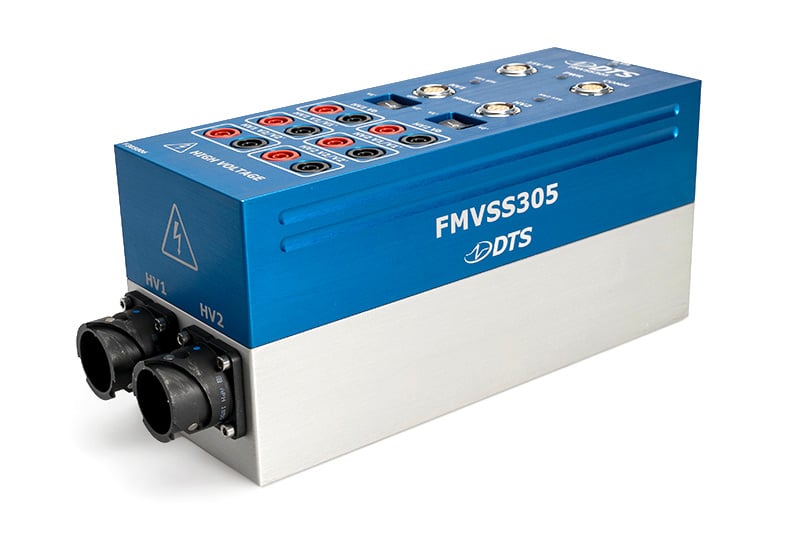

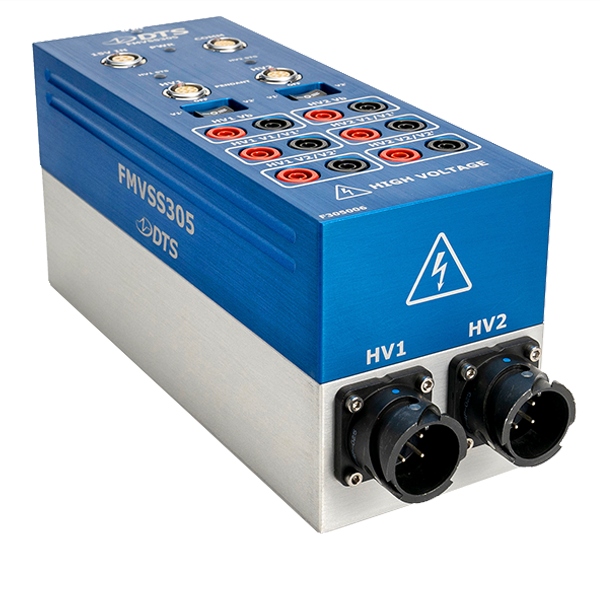

FMVSS305
- High-voltage isolation battery testing device for EV testing
- Fully isolated inputs up to ±1,200 volts
- Built-in 6-channel data recorder, onboard memory

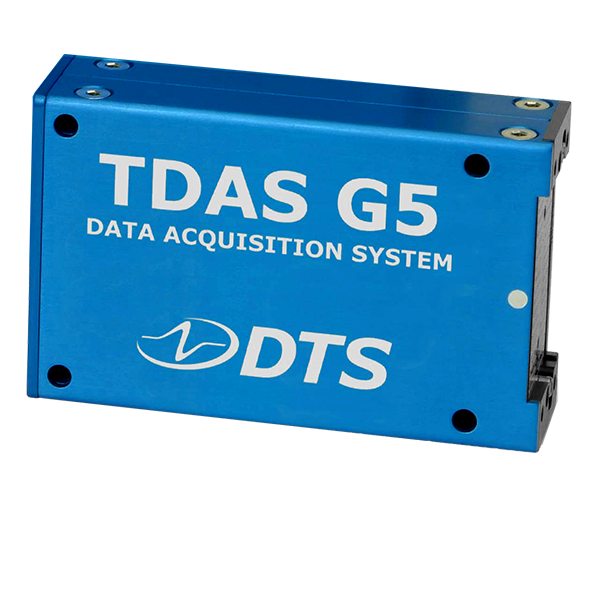

TDAS G5
- 32-channel data acquisition module for in-dummy/ATD solutions
- Centralized solution, integrates with Vehicle Docking Station & iPort for load cell walls and crash barriers

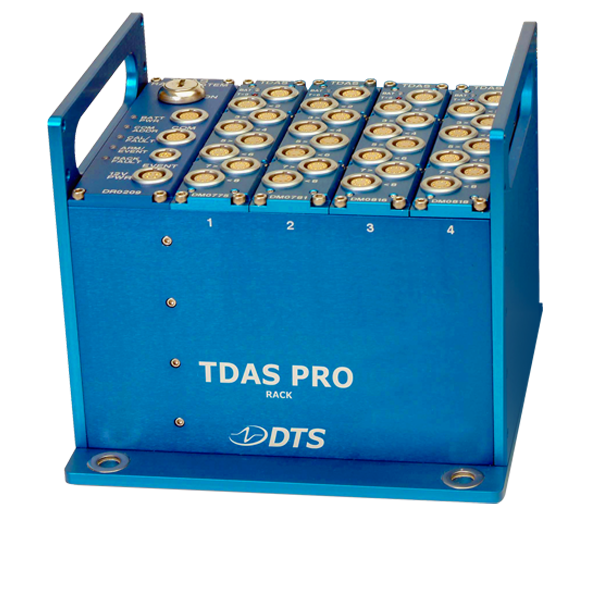

TDAS PRO
- Original DTS modular data acquisition
- Configurable modules: sensor & digital inputs, timed outputs
- Rugged & laboratory systems are serviced, but no longer in production
