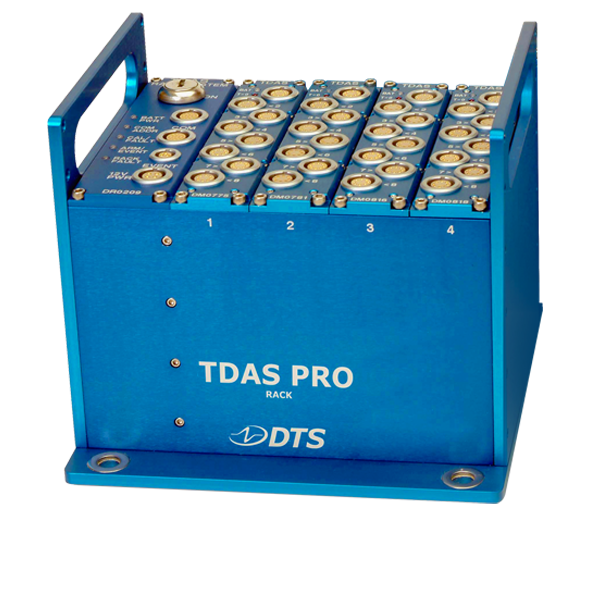

TDAS PRO
Rugged modular legacy data acquisition system with scalable channel counts, broad sensor support, and continued worldwide DTS service support.
View Product Manual
Small Size
Rugged
Versatile
Onboard
Availability
Support
FEATURES
- Size: 13.7 x 12.2 x 3.4 cm module

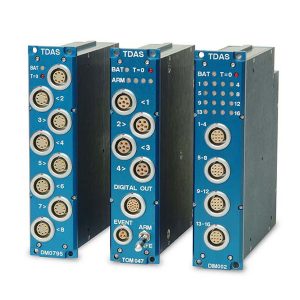

- Modular: Sensor Input Module (SIM), Timed Input Module (TOM)
- Channels: 8 channels per SIM, 8 digital outputs per TOM
- Sampling rate: 1 M samples/channel
- Shock rating: 100 g, Laboratory option also available
- Data storage: Battery-backed SRAM
- Communication: RS-232, Ethernet, and wireless options
- Environmental: 0-50°C
- Sensor support: acceleration, strain, voltage, temperature, load cells, and MEMS inputs
Highlights
Rugged Modular Architecture

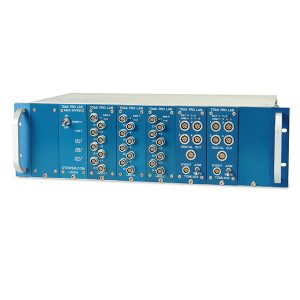

TDAS PRO is a configurable, rack-based system for critical tests requiring scalable channel counts, standalone operation, and dependable analog signal handling.
Broad Sensor Flexibility
Integrated excitation, signal conditioning, and adjustable filters support a wide range of transducers for dynamic test programs.

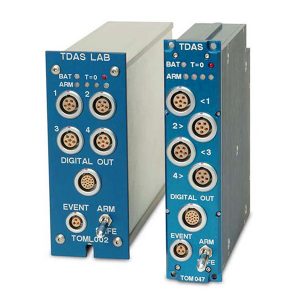

Crashworthy and Laboratory Ready
TDAS PRO supports both crash and laboratory testing, providing engineers with a single, flexible platform for impact measurements, validation, and R&D.
Ongoing Service & Support
Although TDAS PRO is no longer in production, DTS continues to support, repair, and calibrate systems worldwide, which is critical for organizations with active legacy fleets.
Applications

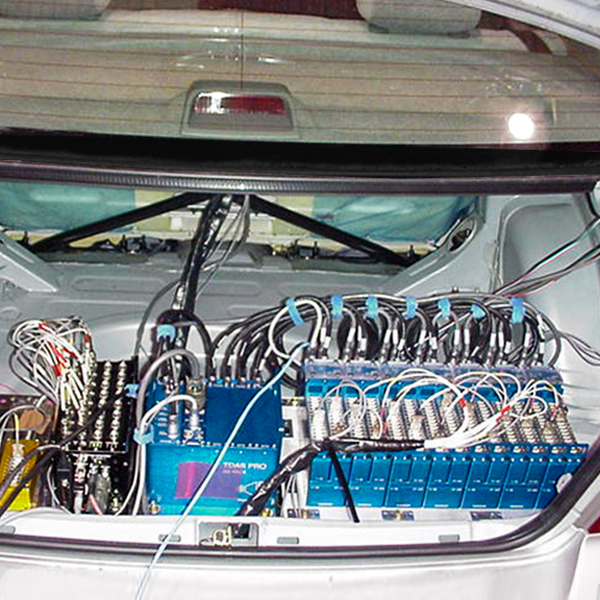

TDAS PRO systems are used daily by organizations worldwide. Its modular rack-based approach supports repeatable data collection in critical programs that still rely on legacy DTS workflows.
Applications include:

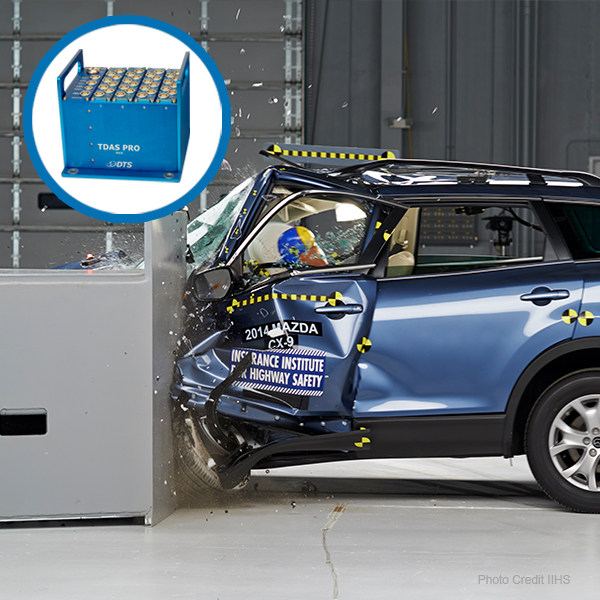

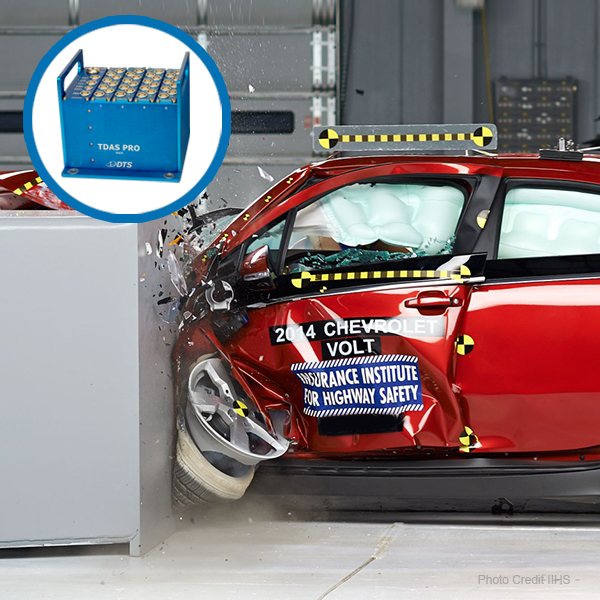

Crash Testing
Airbag & Squib Fire
Pretensioner Testing
SOFTWARE
TDAS Control
TDAS Control is the original set-up, control, viewing and export software developed by DTS. TDAS Control provides easy-to-use tools for configuring output timing, as well as advanced features such as automatic sensor assignment, detailed channel diagnostics, real-time display and squib fire for airbag testing. TDAS Control only works with TDAS G5 and TDAS PRO.
DataPRO
The ultimate DTS hardware control and data management software. Configurable for lowchannel count tests to high-channel count tests with multiple users and client-server-based systems.
- System setup, control, and configuration
- Real-time display and monitoring
- Sensor/channel configuration
- Data recording and review
- Advanced diagnostics and reports
- Automatic sensor assignment
DataPRO Highlights
- Offline test builder
- SQL database integration
- ISO MME & EQX data formats
- Multiple data view
- ACCESSORIES

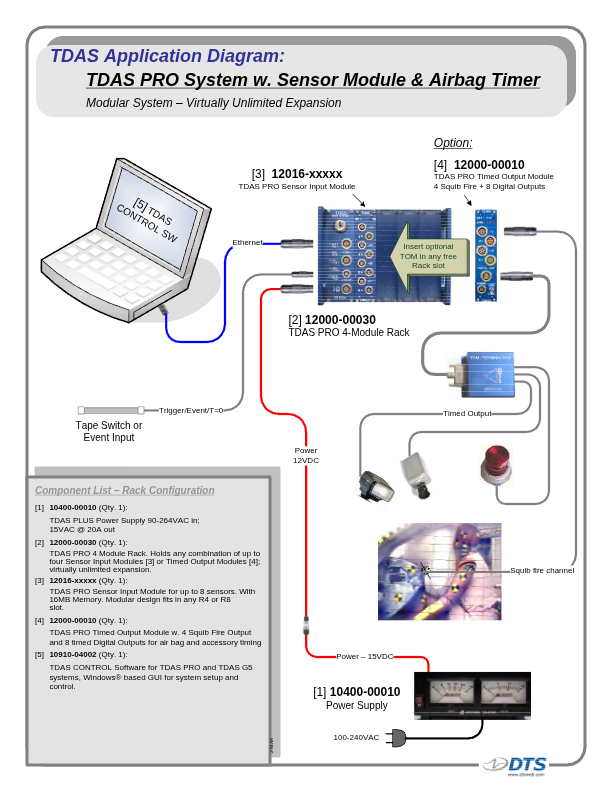

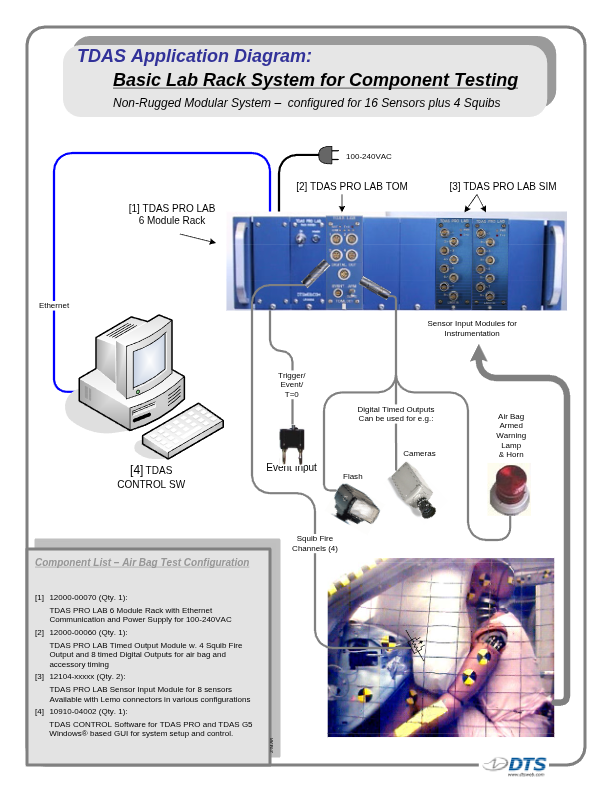

- APPLICATION DIAGRAMS
DataPRO Software
DataPRO Software is a powerful setup, control, and data viewing software for DTS acquisition systems. The intuitive user interface is designed to help test engineers create, control, and manage every aspect of a test.
SEE ACCESSORY OPTIONS →
POWER PRO Onboard Battery
POWER PRO Onboard Battery is a rugged, ultra-compact battery that provides primary power and back-up power for high-channel count tests for up to 1 hour or more. Features a wide input voltage range 18-36 V and outputs 15 VDC nominal. POWER PRO Onboard Battery is rugged and crashworthy.
SEE ACCESSORY OPTIONS →
TDAS PLUS Mini Distributor
TDAS PLUS Mini Distributor is a rugged onboard solution that integrates power, communication, status, and event signal distribution functions. Supports large multi-system test set-ups and in-dummy test solutions for a variety of DTS data acquisition systems. Input range options: 18-36 V, 36-60 V, 36-60 V. Available with Crashlink or Amphenol connectors. TDAS PLUS Mini Distributor is rugged and crashworthy.
SEE ACCESSORY OPTIONS →
