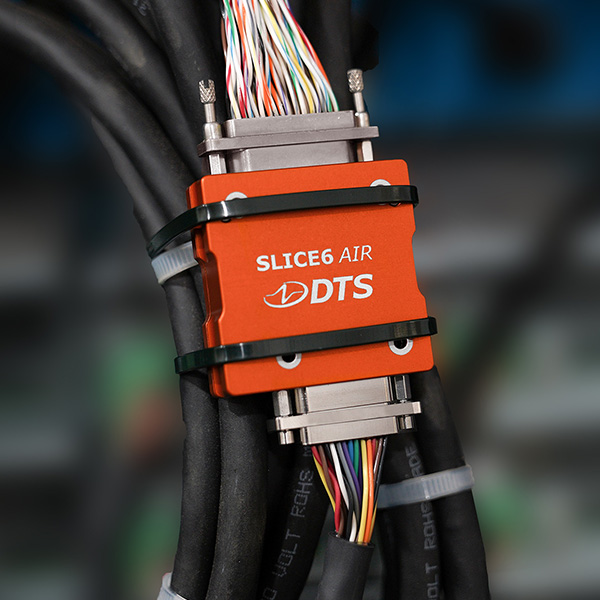

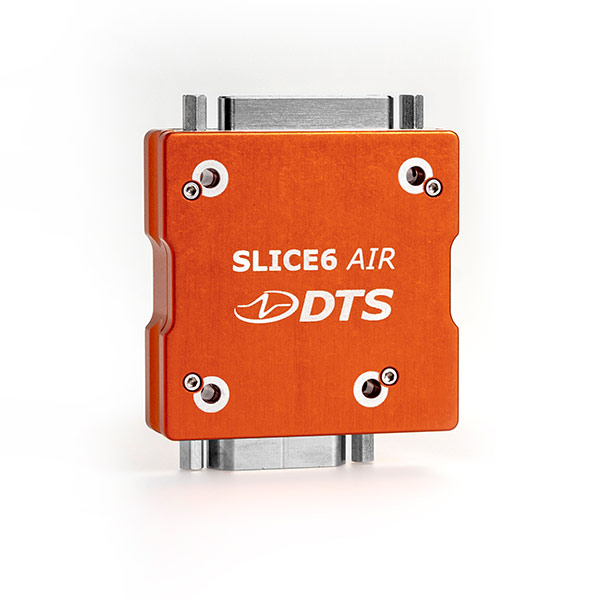

SLICE6 AIR
Compact Ethernet-based data acquisition unit with universal analog sensor support, onboard recording, and real-time streaming for airborne and onboard testing.

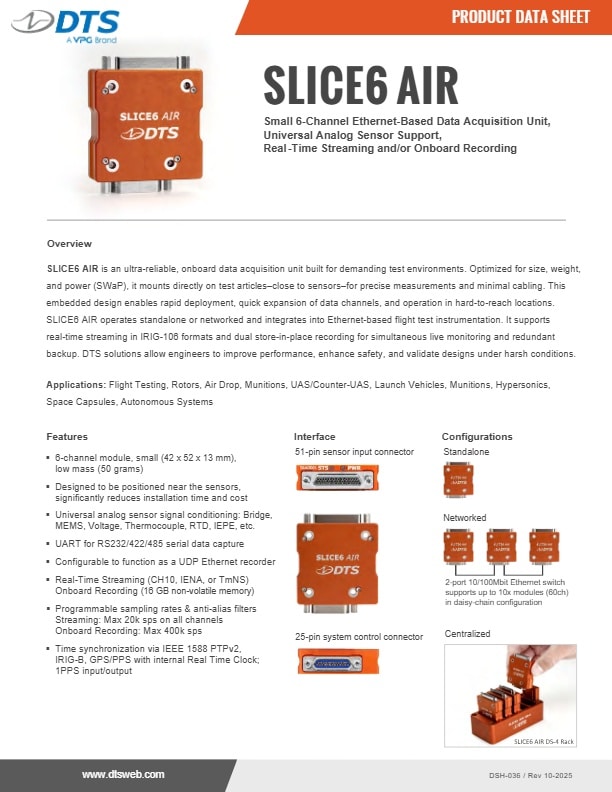

View Product Manual
Rugged
Versatile
Onboard
Small Size
Availability
Support
FEATURES

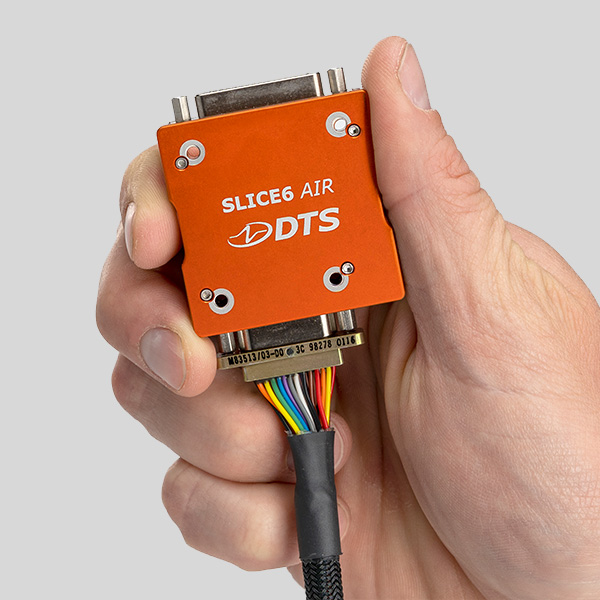

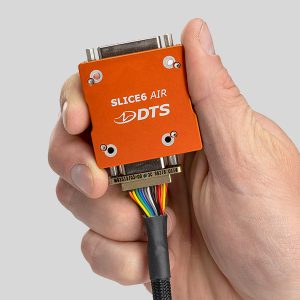

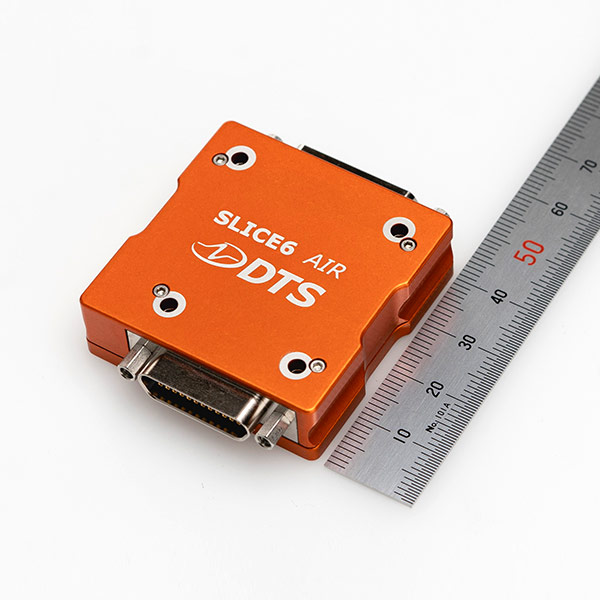

- Size: 42 x 42 x 13 mm, 50 grams
- Channels: 6-channel module; standalone, networked, or FTI-integrated deployments
- Record: 400k sps/channel, 16 GB non-volatile flash memory
- Stream: 20k sps/channel; IRIG 106 Chapter 10, IENA or TmNS
- Shock rating: 500 g
- UART: RS232/422/485 serial data capture
- Communication: 100M bps Ethernet
- Time Synchronization: IEEE 1588 PTPv2, IRIG-B, and GPS/1PPS
- Environmental: -40 C to 80 C, IP64, MIL-STD-810G, and MIL-STD-461G
- Sensor support: Bridge, IEPE, MEMS, voltage, thermocouple, RTD, etc.
Highlights
Low SWaP Package
Small size, low mass, and integrated signal conditioning allow SLICE6 AIR data acquisition units to be mounted close to sensors, which reduces cable runs, installation setup time, and costs.
Dual Streaming and Recording
SLICE6 AIR records to non-volatile flash memory, streams real-time, or both to support data security, access restrictions, high-risk test environments, or non-recoverable test articles.
Time Synchronization
An IEEE 1588-compliant Ethernet switch supports PTPv2 daisy-chaining, making it easier to build synchronized distributed systems across multiple airborne or onboard measurement points.
Standalone, Network, or Integrate
SLICE6 AIR data acquisition units are designed to work standalone, networked for high-channel count tests, or integrated into existing Ethernet-based flight test instrumentation.

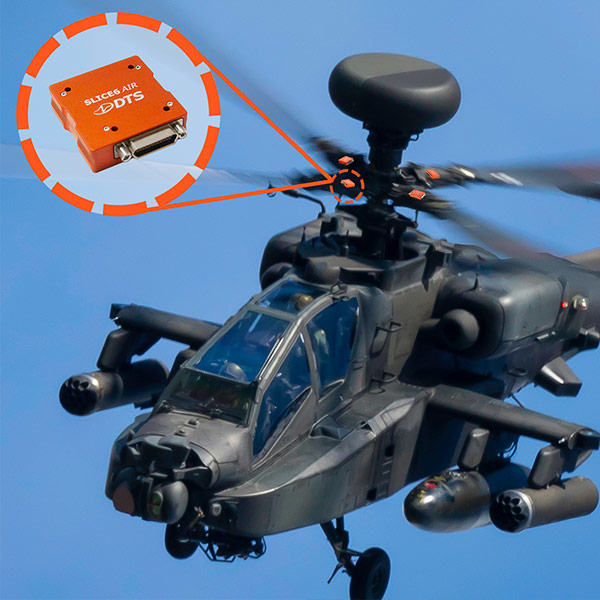

Applications

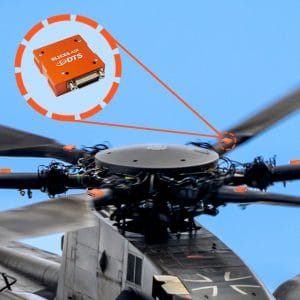

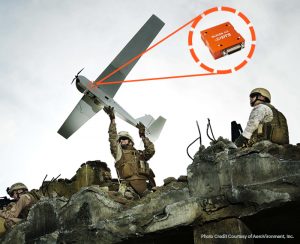

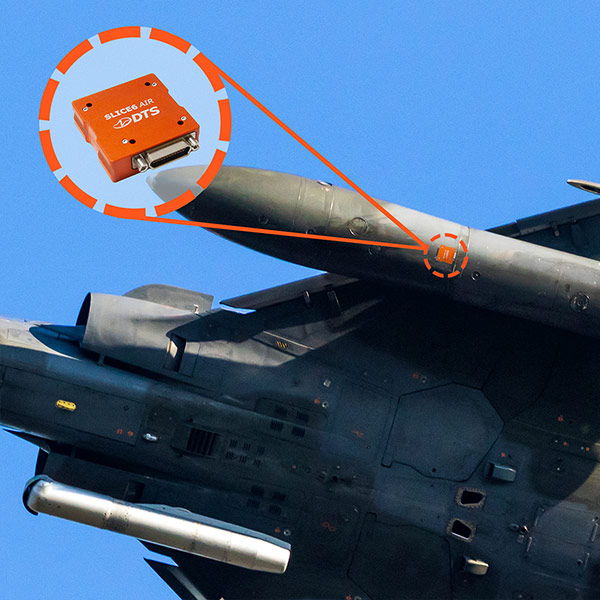

SLICE6 AIR is SWaP-optimized for size, weight, and power, making it ideal for tests that require accurate analog data in remote or non-recoverable locations. Its combination of onboard recording, streaming, and time synchronization makes it well suited for a wide range of airborne test applications.
Applications include:
SOFTWARE
DataPRO
The ultimate DTS hardware control and data management software. Configurable for lowchannel count tests to high-channel count tests with multiple users and client-server-based systems.
- System setup, control, and configuration
- Real-time display and monitoring
- Sensor/channel configuration
- Data recording and review
- Advanced diagnostics and reports
- Automatic sensor assignment
DataPRO Highlights
- Offline test builder
- SQL database integration
- ISO MME & EQX data formats
- Multiple data view
Additional Software Options:
Application Programming Interface (API)
IRIG Chapter 10/IENA/TmNS Streaming
LabVIEW (Display Only)
- MODELS
- ACCESSORIES

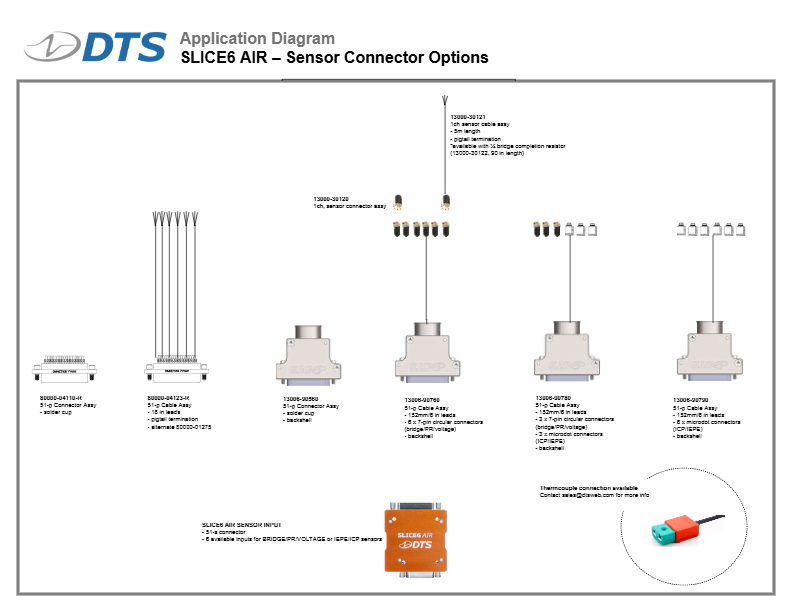

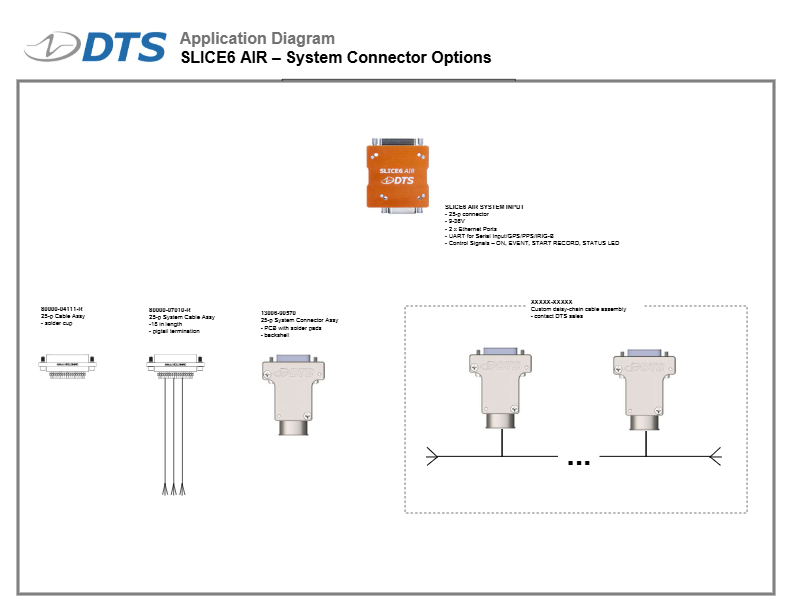

- APPLICATION DIAGRAMS

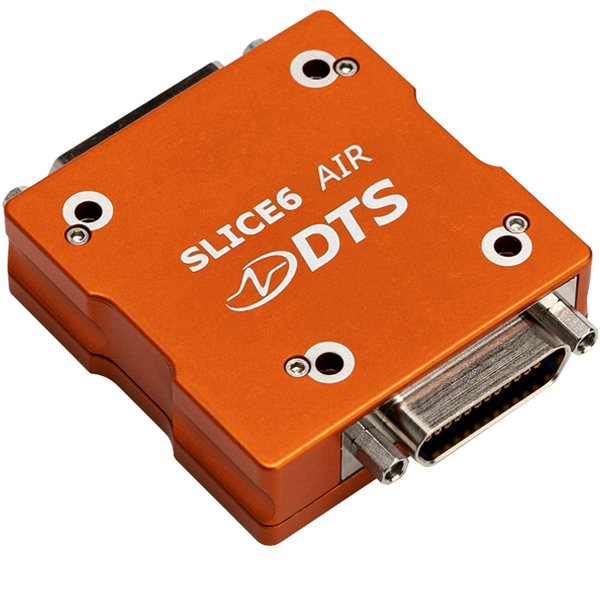

SLICE6 AIR
SLICE6 AIR is a compact 6-channel Ethernet-based data acquisition unit. SWaP-optimized for size, weight, and power. SLICE6 AIR features universal analog sensor support, real-time streaming, and/or onboard recording. Also available in a 5,000 g high-shock rated option. SLICE6 AIR is rugged and crashworthy.
SEE PRODUCT OPTIONS →
Thermocouple Adapters
Thermocouple Adapters offer a simple plug-n-play solution for integrating temperature data with other measurement signals when using DTS SLICE data acquisition systems. Supports Type K thermocouples. Available in two temperature range options: -100 to +400 °C; 0 to 1250 °C.
SEE ACCESSORY OPTIONS →

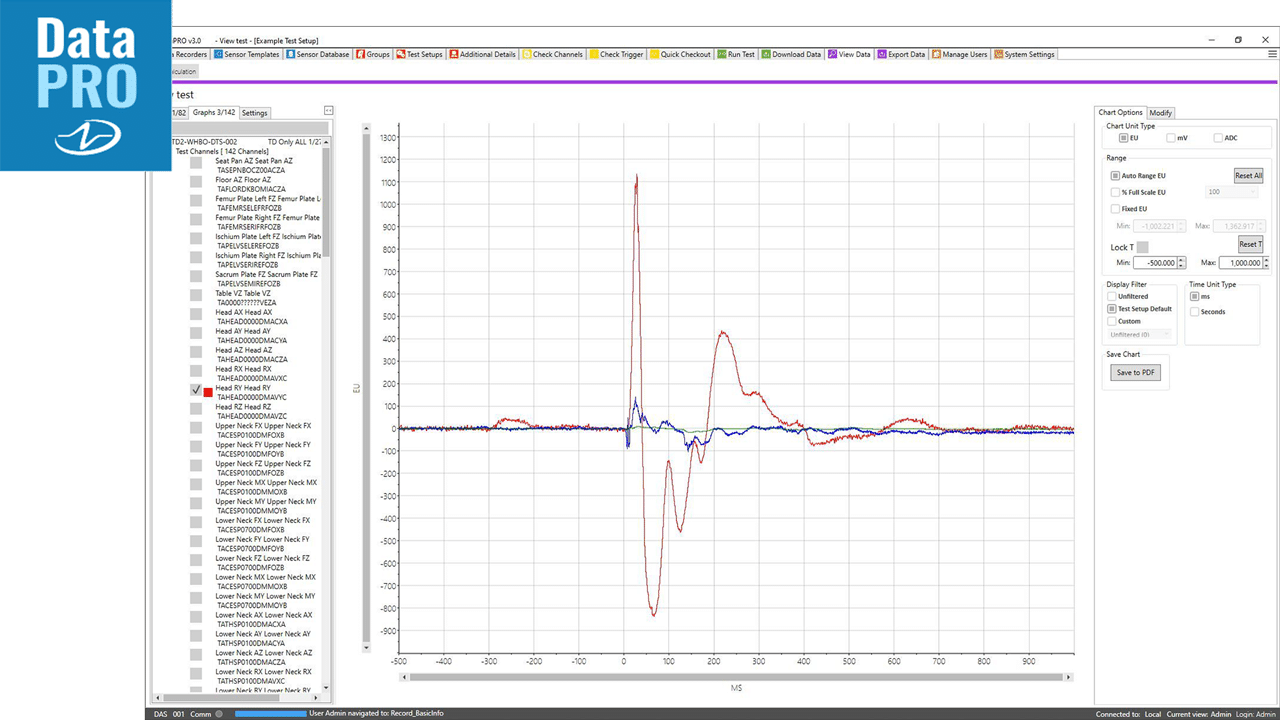

DataPRO Software
DataPRO Software is a powerful setup, control, and data viewing software for DTS acquisition systems. The intuitive user interface is designed to help test engineers create, control, and manage every aspect of a test.
SEE ACCESSORY OPTIONS →
Range Expanders
Range Expanders are an adapter cable that allow DTS data acquisition systems to safely record voltage signals exceeding the standard input range. Available in ±20 V, ±40 V, ±60 V and ±800 V ranges. Various connector options available (LEMO, Omnetics, Tajimi).
SEE ACCESSORY OPTIONS →

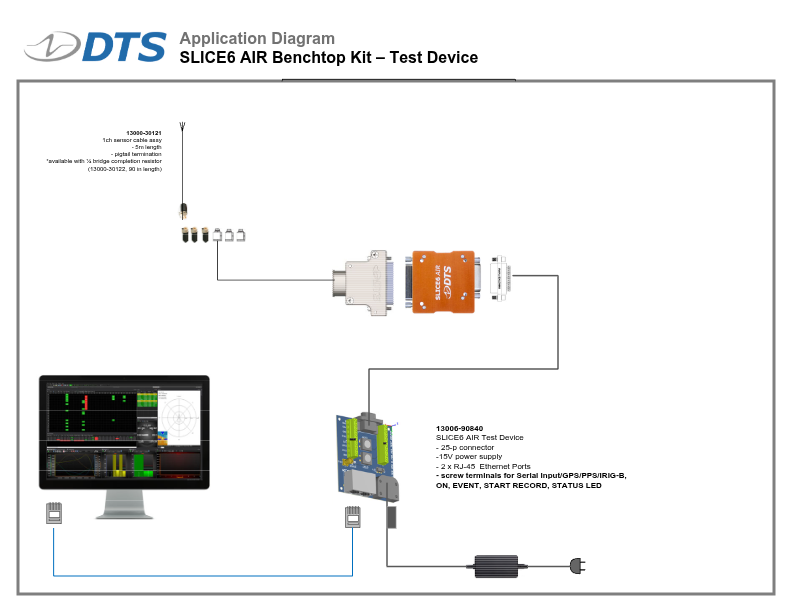

SLICE6 AIR/SLICE6 AIR-BR/TSR AIR Test Device
SLICE6 AIR/SLICE6 AIR-BR/TSR AIR Test Device connects directly to the system connector to support time synchronization (1588 PTPv2, IRIG-B, GPS/1PPS) and control onboard recording functions: • On/off switch • Start record • Event/T=0 • Status LED The SLICE6 AIR/SLICE6 AIR-BR/TSR AIR Test Device Kit includes: SLICE6 AIR Test Device and a Power Supply.
SEE ACCESSORY OPTIONS →

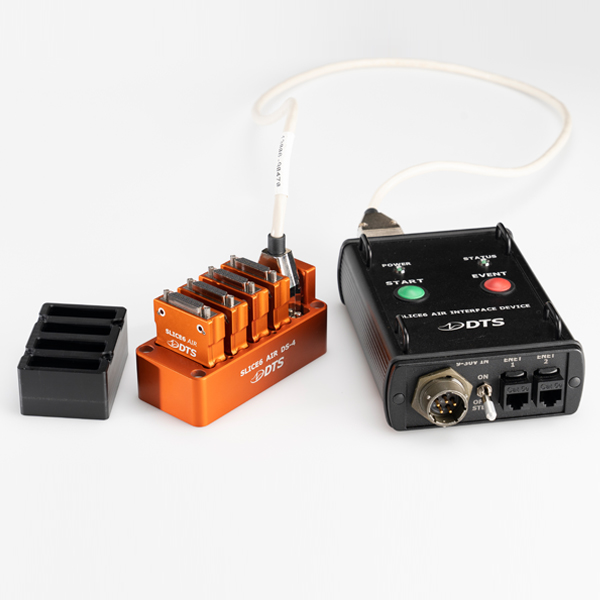

SLICE6 AIR Interface Device Cable Kit
SLICE6 AIR Interface Device Cable Kit allows users to connect and configure up to 10 SLICE6 AIR or SLICE6 AIR-BR modules for benchtop checkout and verification. The SLICE6 AIR Interface Device Cable Kit includes: SLICE6 AIR-BR Interface Device, Chain Module, S6A Chain Extension Cable, Ethernet Return Plug, Ethernet Cable, Serial Input Connector, and Power Supply.
SEE ACCESSORY OPTIONS →
