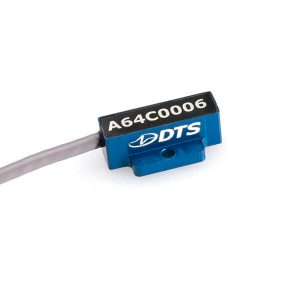

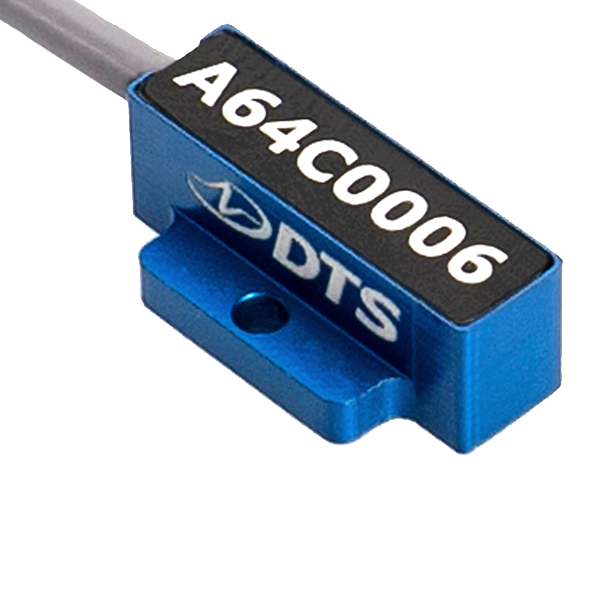

A64C ACCELEROMETER
The A64C is a rugged linear accelerometer in an industry standard enclosure. The low-profile MEMS sensor fits existing ATD mounting blocks and other small spaces. A64C is ideal for acceleration measurements for ATDs, headforms, legforms, automotive safety and in-flight testing.
A64C ACCELEROMETER
SPECIFICATIONS

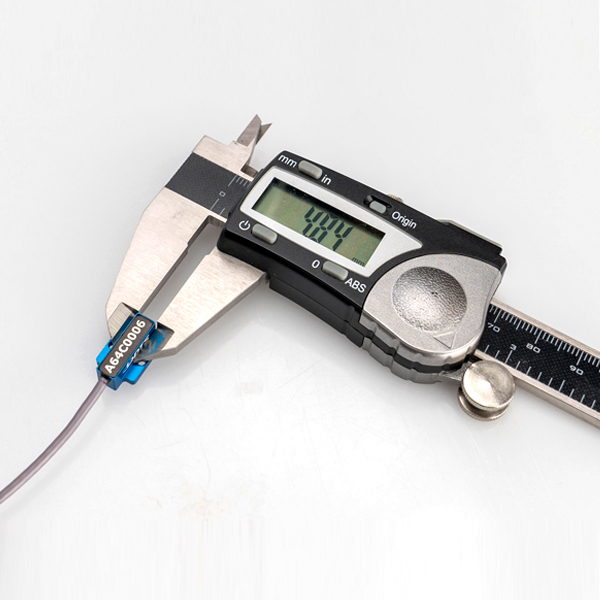

| Physical | 16.3 x 10.2 x 5.8 mm 1.5 g (without cable) |
| Features | Single axis, rugged aluminum enclosure |
| Range | Range: ±500 g |
| Bandwidth | 0-5000 Hz, DC response |
| Excitation | 4.9-14.0 VDC |
| Current | 2 mA nominal |
| Shock Rating | 10000 g |
| Environmental | -40°C to 85°C, IP67 |
| Performance | Meets SAE J211/J2570, ISO 6487, NHTSA & Euro NCAP recommended practices |
A64C ACCELEROMETER RESOURCES
FEATURES
FEATURES
|
High Performance
|
• Ultra-small, MEMS, uniaxis, linear accelerometer |
| • Low noise, high output: 3.75 mV/g (nominal) |
|
| • Measures acceleration up to ±500 g; shock-rated to 10000 g |
|
|
Versatile
|
• Shunt check compatible |
| • Temperature compensated |
|

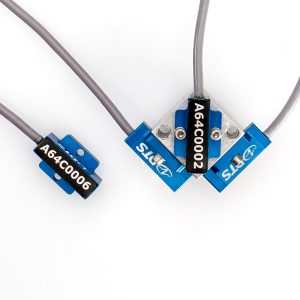

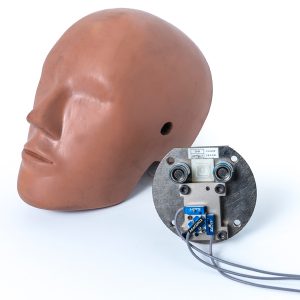

| • Fits standard mounting blocks for ATDs, Headforms, Flex and aPLI Legforms |
DATASHEET
DATASHEET

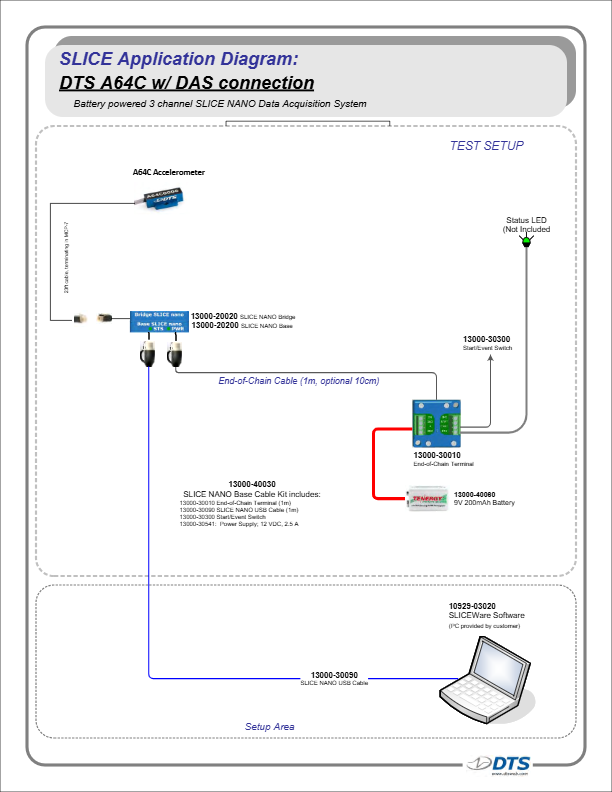

PRODUCT DOCUMENTATION
