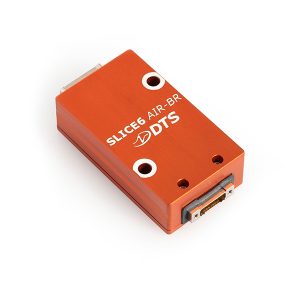

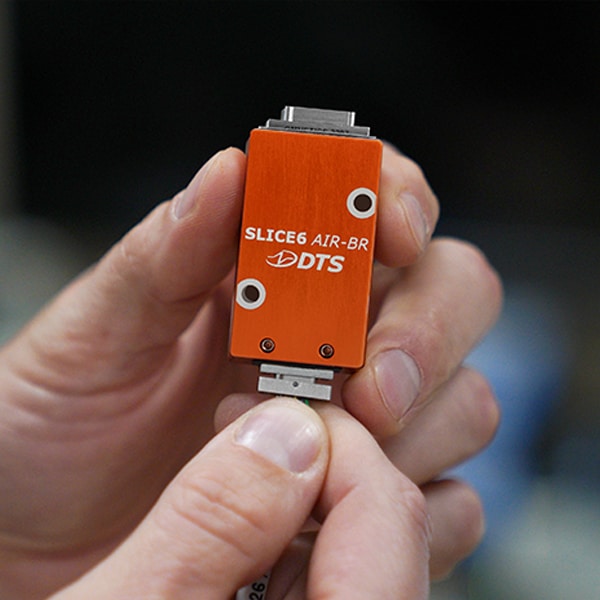

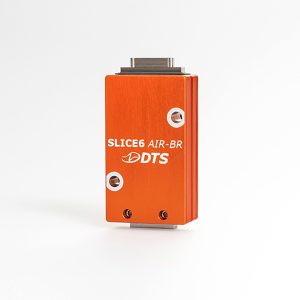

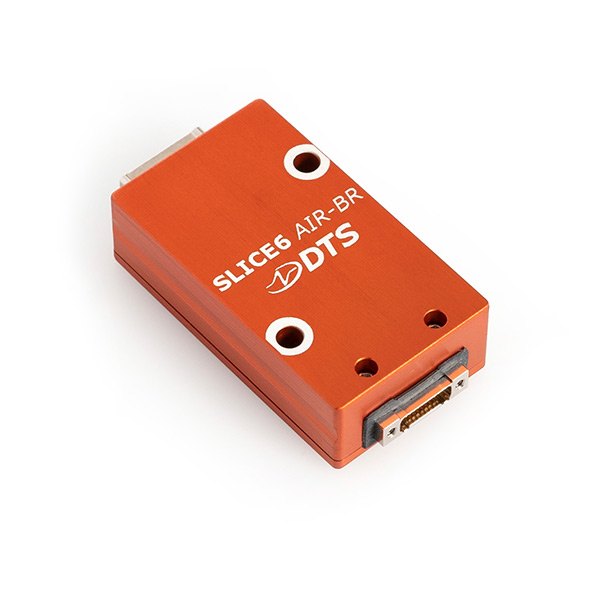

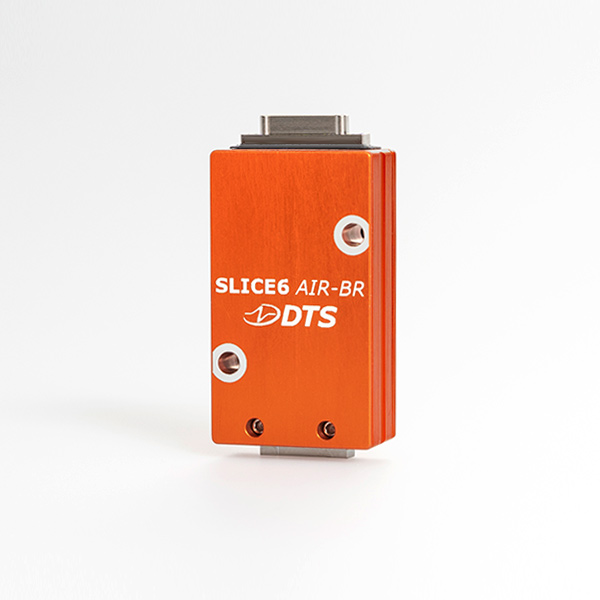

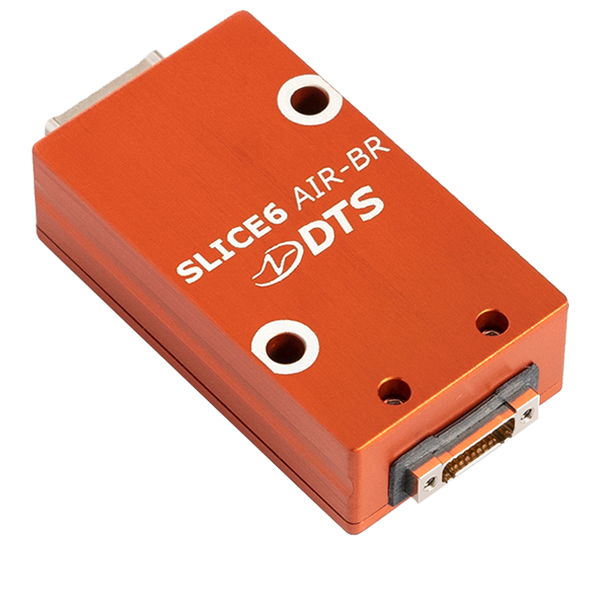

SLICE6 AIR-BR
Ultra-small Ethernet-based data acquisition unit with strain-based analog sensor support, onboard recording, and real-time streaming for airborne and onboard testing.
View Product Manual
Small Size
Rugged
Versatile
Onboard
Availability
Support
FEATURES

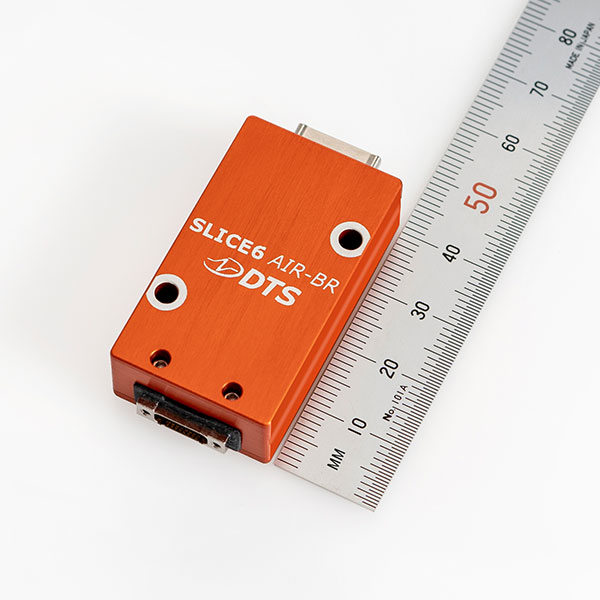

- Size: 24 x 42 x 12.5 mm, 25 grams
- Channels: 6-channel module; standalone, networked, or FTI-integrated deployments
- Record: 400k sps/channel, 16 GB non-volatile flash memory
- Stream: 20k sps/channel; IRIG 106 Chapter 10, IENA or TmNS
- Shock rating: 500 g
- Communication: 100M bps Ethernet
- Time Synchronization: IEEE 1588 PTPv2
- Environmental: -40 C to 80 C, IP64, MIL-STD-810G, and MIL-STD-461G
- Sensor support: Bridge, MEMS, voltage, thermocouple, RTD; does not support IEPE sensors
Highlights

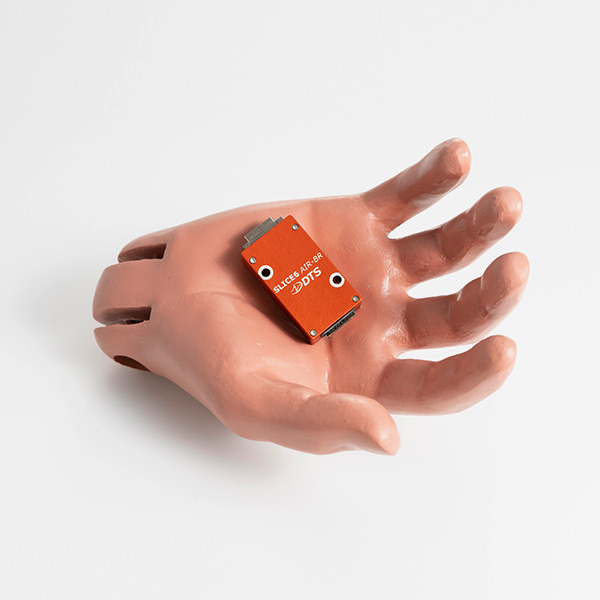

Ultra-Small Strain-Capable Package

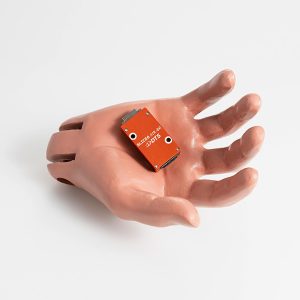

SLICE6 AIR-BR is designed for test applications with tight space and mass constraints. The compact size allows the data acquisition units to be positioned near the sensors, reducing cable length, installation time, and costs.
Precision Timing
IEEE 1588 PTPv2 timing and Ethernet networking make it practical to deploy multiple units across a test article while maintaining aligned time bases for correlation and system-level analysis.
Dual Streaming and Recording
SLICE6 AIR records to non-volatile flash memory, streams real-time, or both to support data security, access restrictions, high-risk test environments, or non-recoverable test articles.
Standalone, Network, or Integrate
SLICE6 AIR-BR data acquisition units are designed to work standalone, networked for high-channel count tests, or integrated into existing Ethernet-based FTI ecosystems.
Applications
SLICE6 AIR-BR fits dynamic programs that need compact, close-to-sensor instrumentation for strain-heavy or mixed analog measurements. It is well suited to embedded and airborne deployments where reliable timing, rugged packaging, and flexible data access are all important.
SOFTWARE
DataPRO
The ultimate DTS hardware control and data management software. Configurable for lowchannel count tests to high-channel count tests with multiple users and client-server-based systems.
- System setup, control, and configuration
- Real-time display and monitoring
- Sensor/channel configuration
- Data recording and review
- Advanced diagnostics and reports
- Automatic sensor assignment
DataPRO Highlights
- Offline test builder
- SQL database integration
- ISO MME & EQX data formats
- Multiple data view
Additional Software Options:
Application Programming Interface (API)
LabVIEW (Display Only)
IRIG Chapter 10/IENA/TmNS Streaming
- MODELS
- ACCESSORIES

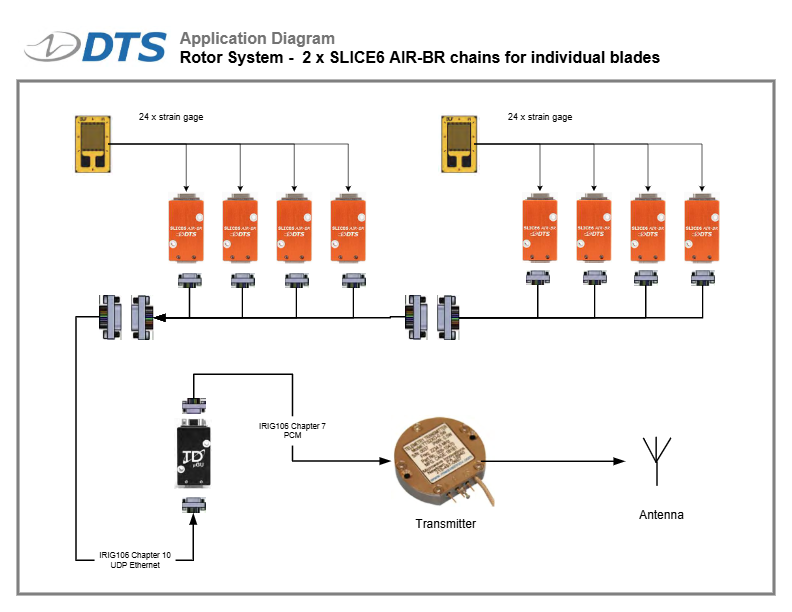

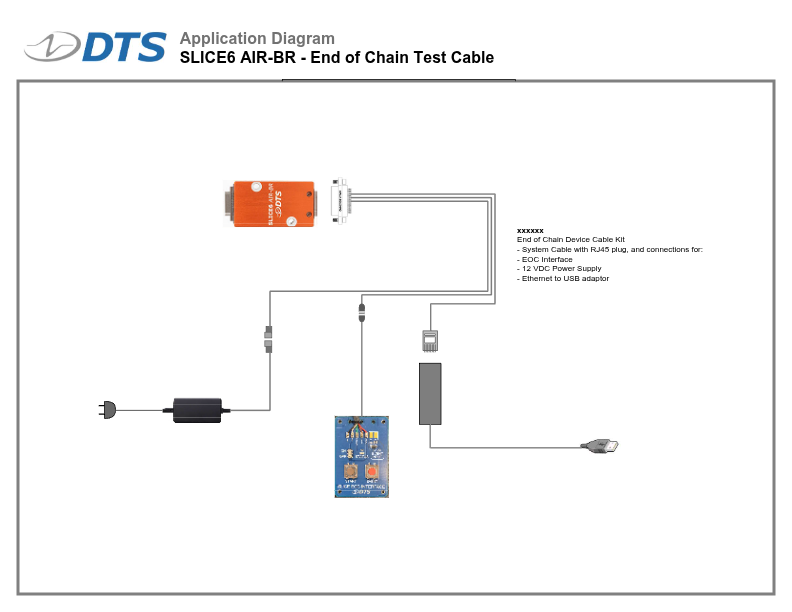

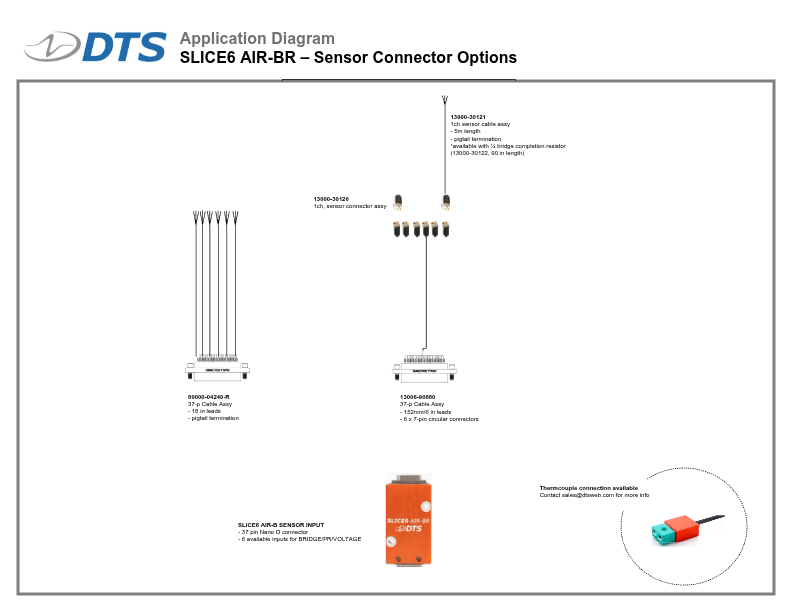

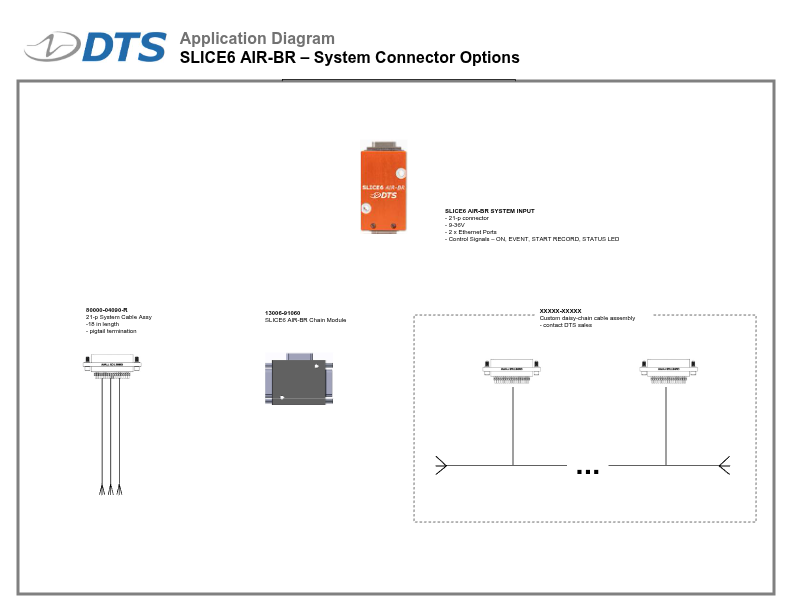

- APPLICATION DIAGRAMS
SLICE6 AIR-BR
SLICE6 AIR-BR is an ultra-compact 6-channel Ethernet-based data acquisition unit. SWaP-optimized for size, weight, and power, SLICE6 AIR features strain-based analog sensor support, real-time streaming, and/or onboard recording. SLICE6 AIR-BR is rugged and crashworthy.
SEE PRODUCT OPTIONS →

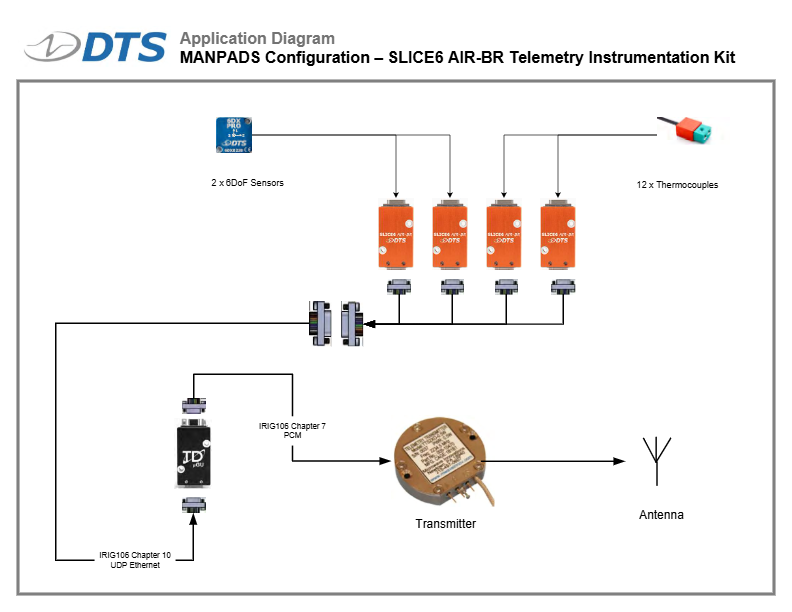

Thermocouple Adapters
Thermocouple Adapters offer a simple plug-n-play solution for integrating temperature data with other measurement signals when using DTS SLICE data acquisition systems. Supports Type K thermocouples. Available in two temperature range options: -100 to +400 °C; 0 to 1250 °C.
SEE ACCESSORY OPTIONS →
DataPRO Software
DataPRO Software is a powerful setup, control, and data viewing software for DTS acquisition systems. The intuitive user interface is designed to help test engineers create, control, and manage every aspect of a test.
SEE ACCESSORY OPTIONS →
Range Expanders
Range Expanders are an adapter cable that allow DTS data acquisition systems to safely record voltage signals exceeding the standard input range. Available in ±20 V, ±40 V, ±60 V and ±800 V ranges. Various connector options available (LEMO, Omnetics, Tajimi).
SEE ACCESSORY OPTIONS →

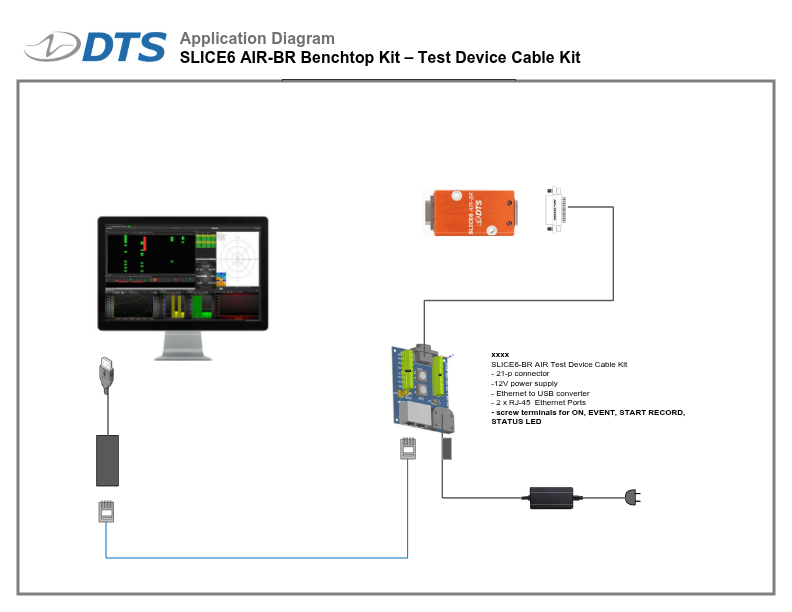

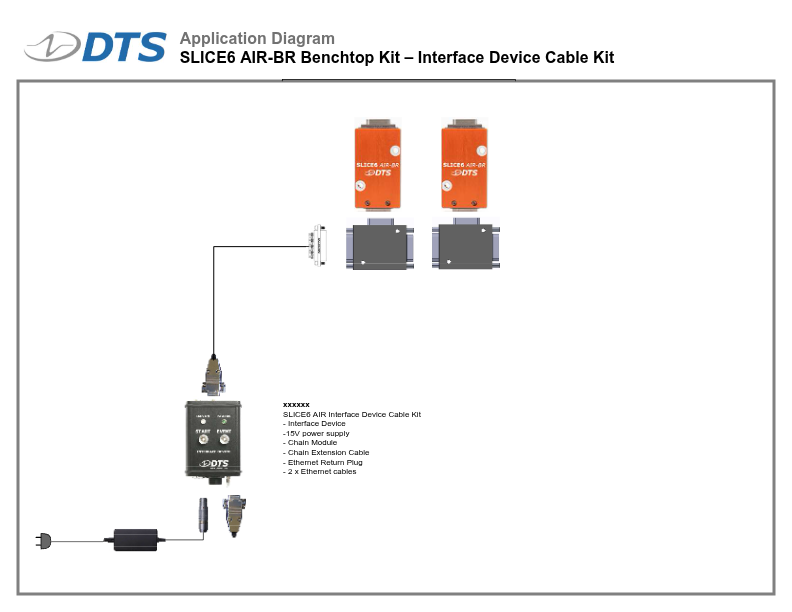

SLICE6 AIR Interface Device Cable Kit
SLICE6 AIR Interface Device Cable Kit allows users to connect and configure up to 10 SLICE6 AIR or SLICE6 AIR-BR modules for benchtop checkout and verification. The SLICE6 AIR Interface Device Cable Kit includes: SLICE6 AIR-BR Interface Device, Chain Module, S6A Chain Extension Cable, Ethernet Return Plug, Ethernet Cable, Serial Input Connector, and Power Supply.
SEE ACCESSORY OPTIONS →
