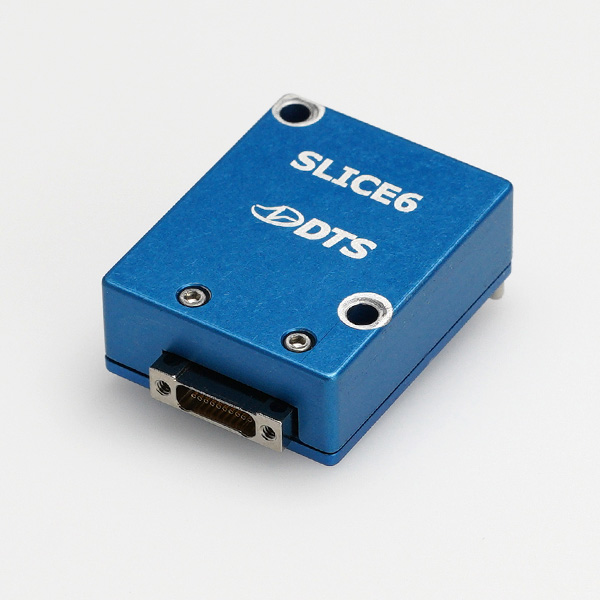

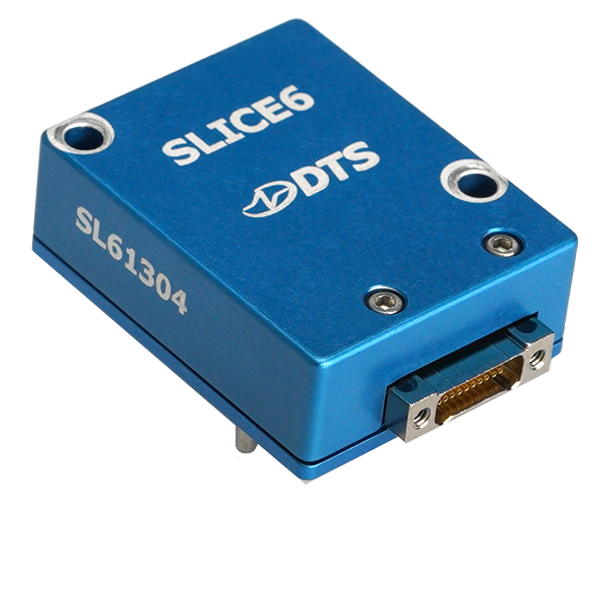

SLICE6 / SLICE6 HB
Miniature Ethernet-based data acquisition with precision timing for in-dummy and embedded high-channel-count tests.
View Product Manual

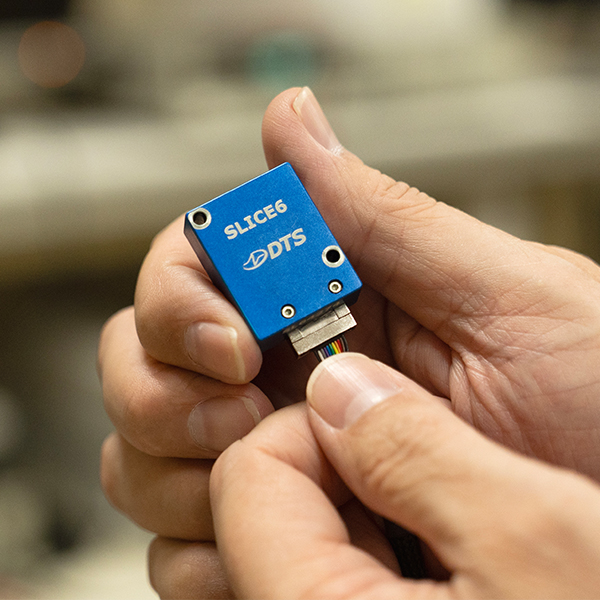

Small Size
Rugged
Versatile
Onboard
Availability
Support
FEATURES

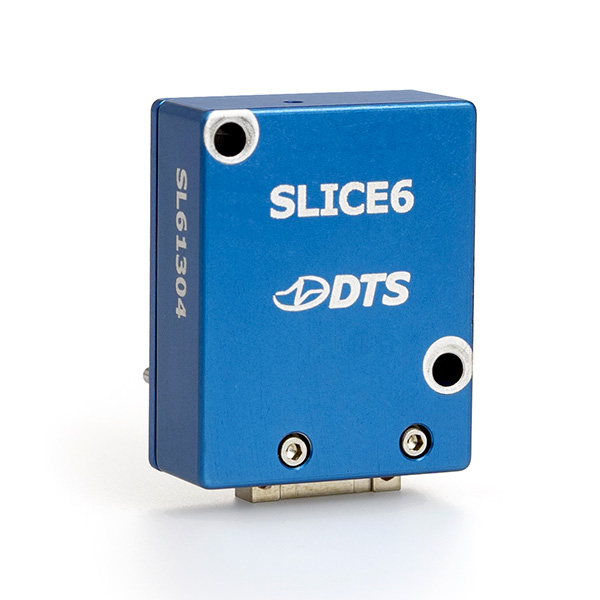

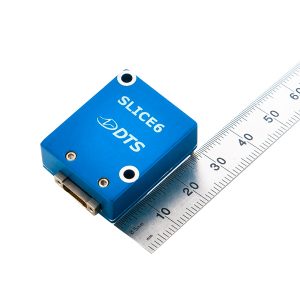

- Size: 24 × 30 × 10 mm, 28 grams

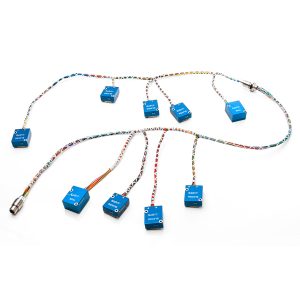

- Channels: 6-channel module, daisy-chain hundreds of channels
- Sampling rate: programmable up to 400k sps/channel
- Shock rating: 500 g
- Data storage: 16 GB non-volatile flash memory
- Communication: 100M bps Ethernet (unit-to-unit)
- Environmental: -40°C to +60°C, IP51, MIL-STD-810G
- Sensor support: full and half-bridge sensors, strain gauges, voltage input, thermocouples. Direct- mount options for load cells and 6DOF, plus high-bandwidth SLICE6 HB variant.
Highlights
Miniature Distributed DAQ

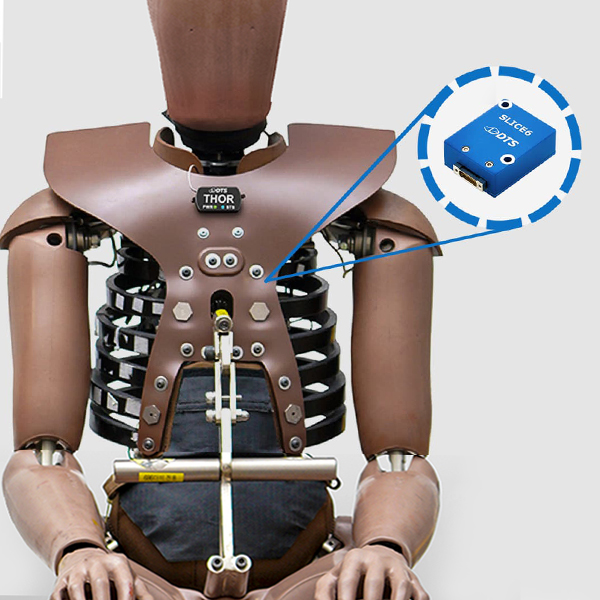

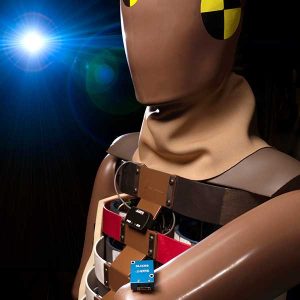

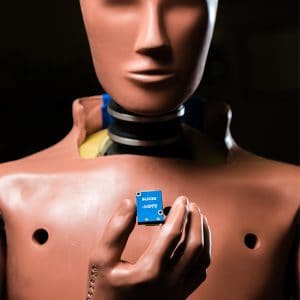

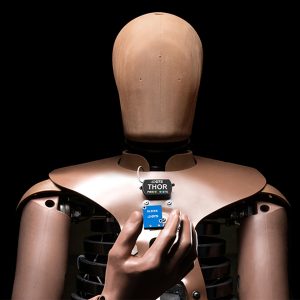

Small-size, low-mass data acquisition units designed to be directly integrated into ATDs and other confined measurement locations, offering flexible configuration options.
Precision Time Synchronization
Built-in IEEE 1588 PTPv2 support helps align large, distributed channel counts with precise timing across the system.

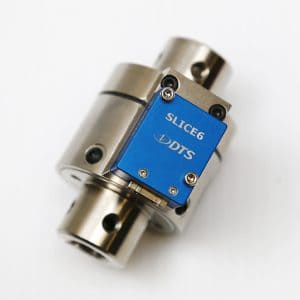

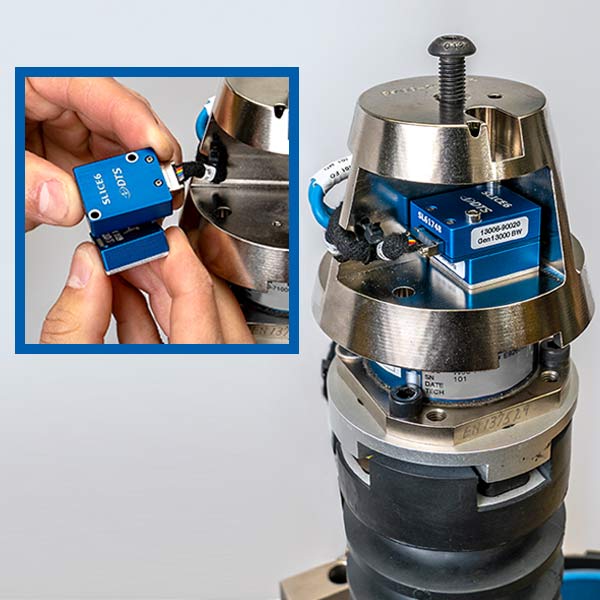

Direct-Mount Sensor Integration
Supports cable-free direct-mount configurations for load cells and 6DOF sensors, reducing complexity and setup time. Reduces in-dummy DAS cabling and sensors by up to 75%.
High-Bandwidth Variant

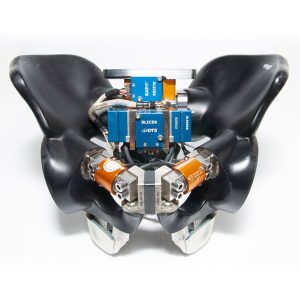

SLICE6 HB supports higher-bandwidth measurements for demanding military and injury biomechanics testing with the U.S. Army WIAMan (Warrior Injury Assessment Manikin) vertical-load ATD
Applications
SLICE6 is built for compact distributed measurements where timing accuracy, low mass, and close-to-
sensor placement are critical. Its Ethernet architecture reduces cabling while supporting precise
synchronization across large channel counts.
Applications include:
SOFTWARE
DataPRO
The ultimate DTS hardware control and data management software. Configurable for lowchannel count tests to high-channel count tests with multiple users and client-server-based systems.
- System setup, control, and configuration
- Real-time display and monitoring
- Sensor/channel configuration
- Data recording and review
- Advanced diagnostics and reports
- Automatic sensor assignment
DataPRO Highlights
- Offline test builder
- SQL database integration
- ISO MME & EQX data formats
- Multiple data view
Additional Software Options:
Application Programming Interface (API)

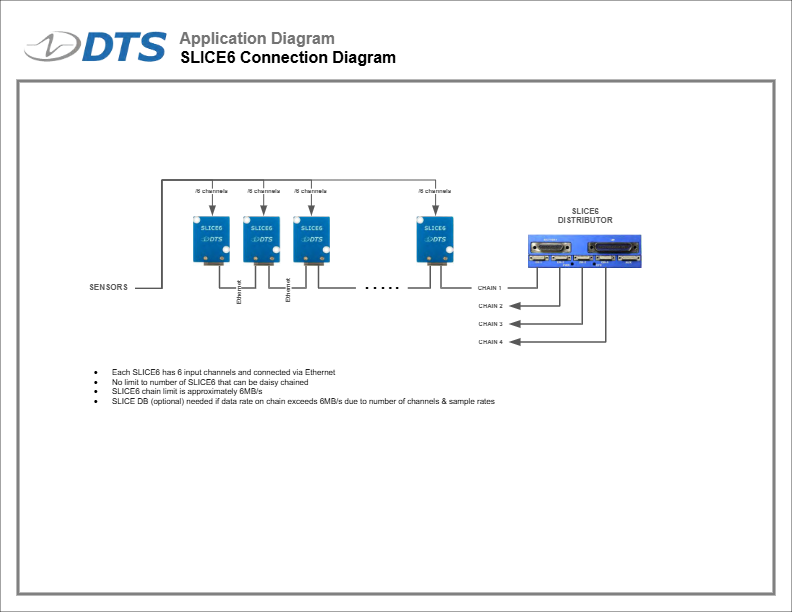

- APPLICATION DIAGRAMS
