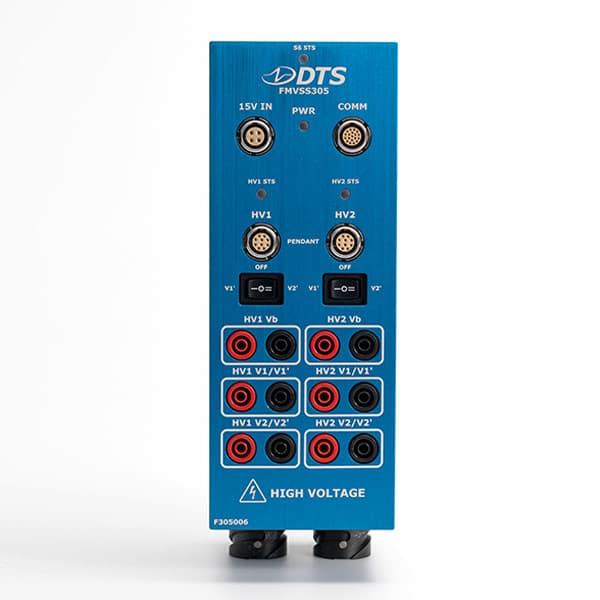

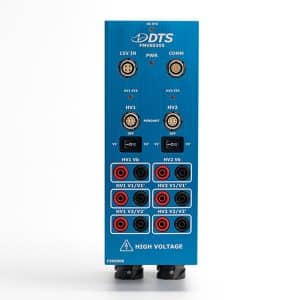

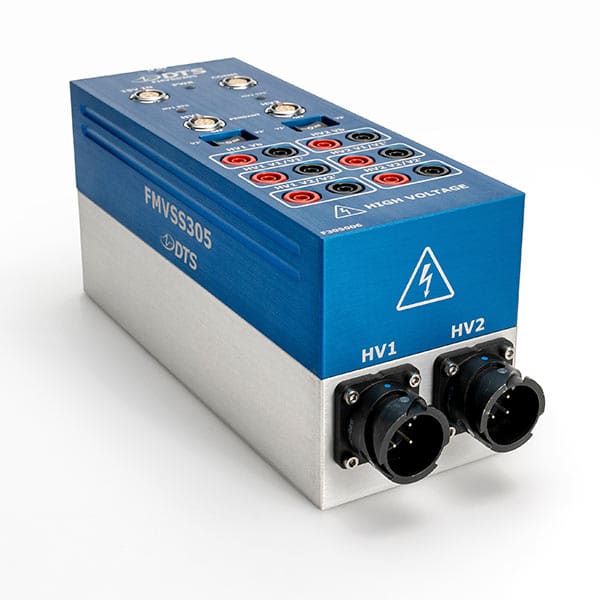

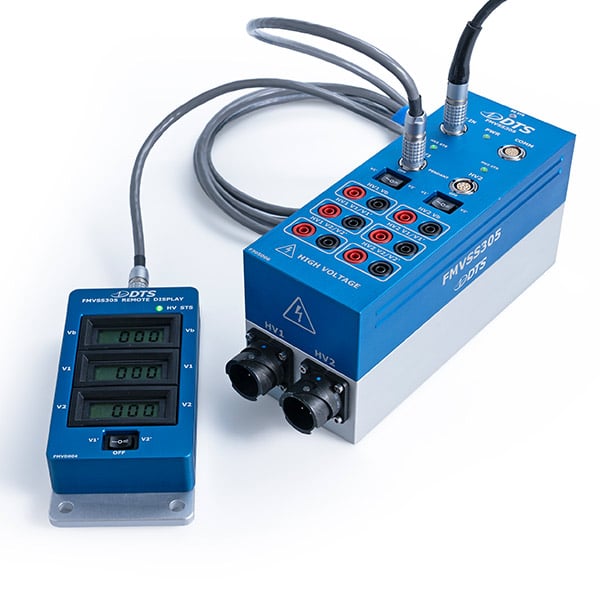

FMVSS305
Crashworthy high-voltage isolation recorder that safely captures battery and drive system voltages during EV and hybrid crash safety testing.
View Product Manual
Small Size
Rugged
Versatile
Onboard
Availability
Support
FEATURES

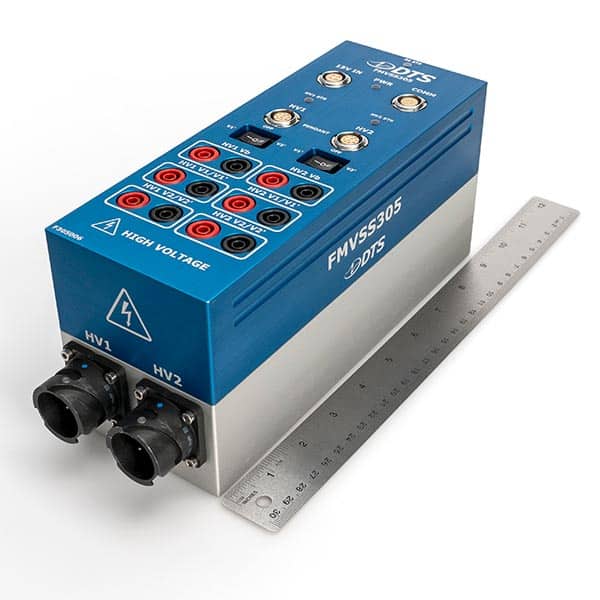

- Size: 262 x 90 x 110 mm, 2.7 kg
- Channels: 6-channels, built-in SLICE6 DAQ
- Shock rating: 100 g
- Data storage: 16 GB non-volatile flash memory
- Communication: Ethernet 10/100BaseT/Tx
- Environnemental: 10-40°C
- Input range: fully isolated up to +/-1,200 V
- LED status: HV inputs, system power, DAQ measurements
Highlights
High-Voltage Isolation
The FMVSS305 recorder measures battery and drive-system voltages through fully isolated inputs to safely capture critical electrical data during EV and hybrid testing.
Crashworthy Recording
The onboard recorder is engineered for dynamic events and writes data directly to nonvolatile flash memory, ensuring accurate and reliable data during destructive tests.
Standalone or Integrated
The FMVSS305 recorder operates as a self-contained measurement device or integrates with DTS data acquisition systems for voltage-isolation measurements within a complete crash test.
Compliance-Focused Workflow

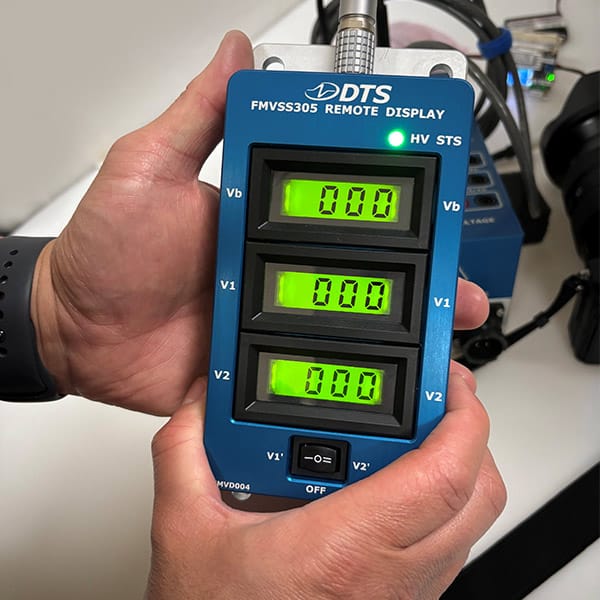

Manual test switches, status indicators, and DataPRO compatibility support a direct workflow for engineers validating high-voltage isolation requirements.
Applications

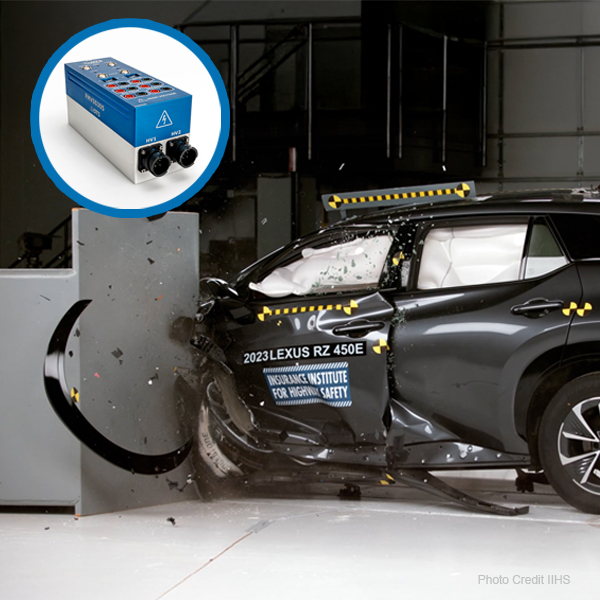

The DTS FMVSS305 recorder is FMVSS305-compliant for dynamic electric-vehicle safety testing where safe, reliable voltage measurement is essential. It fits test setups that need isolated battery and drive-system monitoring with onboard recording and straightforward integration into larger instrumentation packages.
Applications include:
SOFTWARE
DataPRO
The ultimate DTS hardware control and data management software. Configurable for lowchannel count tests to high-channel count tests with multiple users and client-server-based systems.
- System setup, control, and configuration
- Real-time display and monitoring
- Sensor/channel configuration
- Data recording and review
- Advanced diagnostics and reports
- Automatic sensor assignment
DataPRO Highlights
- Offline test builder
- SQL database integration
- ISO MME & EQX data formats
- Multiple data view
- MODELS

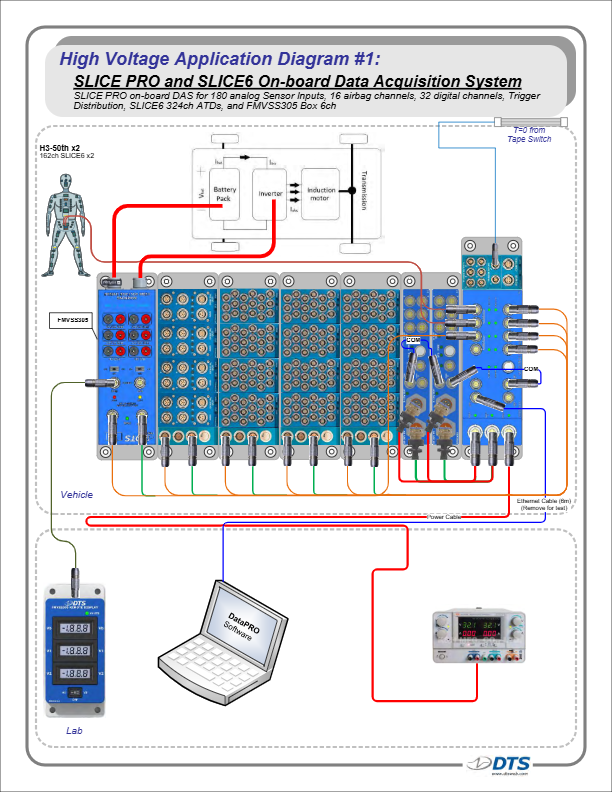

- APPLICATION DIAGRAMS
FMVSS305
FMVSS is a crashworthy, high-voltage recording device that provides a safe and reliable way to capture battery and drive system voltages for testing EV and hybrid vehicles. The FMVSS305 data acquisition system can operate standalone or with DTS SLICE data acquisition systems and software. FMVSS305 is rugged and crashworthy.
SEE PRODUCT OPTIONS →
