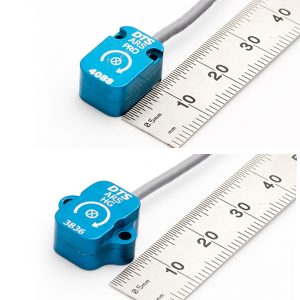

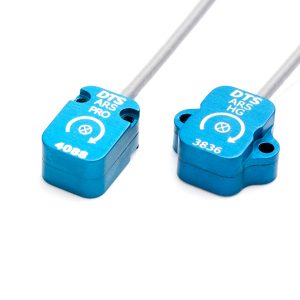

ARS PRO & ARS HG

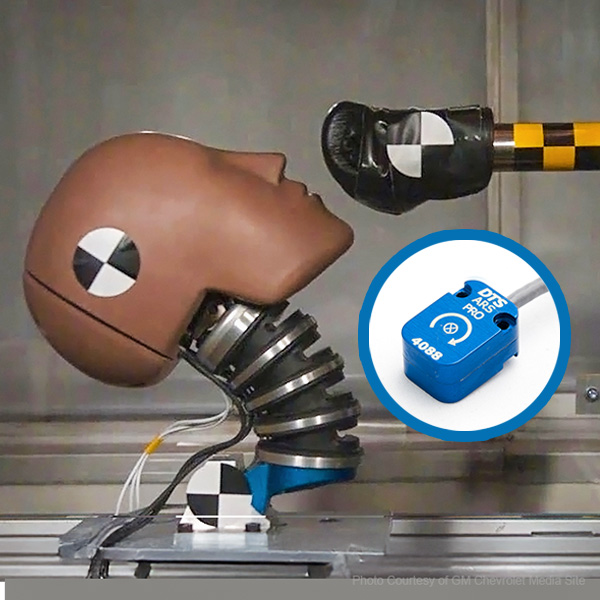

World’s smallest, ultra-high shock tolerant uniaxis ARS (angular rate sensors). The ARS PRO and ARS HG are designed to measure high rates of angular velocity in dynamic testing environments.
ARS PRO & ARS HG (Single Axis)
SPECIFICATIONS
| Physical | ARS PRO 7.6 x 10.2 x 14.6 mm, 2.2 g ARS HG 7.6 x 16.5 x 14.6 mm, 2.5 g |
| Features | Single axis, rugged aluminum enclosure |
| Range | Range Options: ±300, ±1500, ±8000, ±18000, ±50000 degrees/second |
| Bandwidth | Multiple bandwidth options |
| Excitation | 4.9-14.0 VDC |
| Current | 4 mA nominal |
| Shock Rating | 10000 g |
| Environmental | -40°C to 80°C, IP67 |
| Performance | Meets SAE J211, ISO 6487, NHTSA & FAA data acquisition requirements |
ARS PRO & ARS HG RESOURCES
FEATURES
FEATURES
|
High Performance
|
• Ultra-small, low mass, uniaxis sensor |
| • High shock tolerant | |
| • Ideal for high rate measurements | |
|
Versatile
|
• Multiple range and bandwidth options |
| • Optional Dallas ID and user-specified connector | |
| • Easily converts to a triaxial or six degrees of freedom sensor solution |
DATASHEET
ACCESSORIES
ACCESSORIES
CLICK FOR FULL SIZE IMAGE

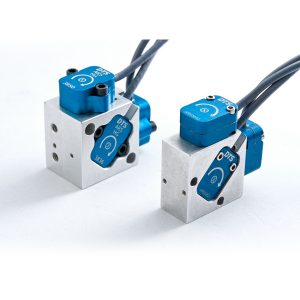

Triax Mounting Blocks
Aluminum mounting blocks make it easy to create a triaxial solution. Additional mounting holes support three Endevco 7264 or MSI 64 accelerometers to create a complete six degrees of freedom package. Two options: ARS PRO Block 21.6 x 21.6 x 10.9 mm (9.9 grams) or the ARS HG Block 21.6 x 21.6 x 16.8 mm (15.2 grams).
