IN-DUMMY DAS
Moving from offboard DAS to a DTS in-dummy DAS solution offers many benefits for testing with any anthropomorphic test device (ATD), crash test dummy, or test manikin. DTS in-dummy DAS systems are used for a variety of product development, safety testing, and injury biomechanics research. As a leader in the industry, DTS developed the first in-dummy data acquisition solution for a regulation crash test dummy.
IN-DUMMY DAS SOLUTIONS
Frontal Impact ATDs
SLICE6 integrated DAS solutions for THOR and Hybrid III
Side Impact ATDs
In-dummy DAS solutions for WorldSID, SID-IIs and ES-2
Autonomous Vehicle ATDs
SLICE6 in-dummy DAS solutions for THOR-AV
Vertical Load ATD
SLICE6 integrated solutions for U.S Army WIAMan blast manikin
Child ATDs
Ultra-compact SLICE6 solutions for the complete Q-Series and H3
Rear Impact ATDs
SLICE6 in-dummy Data Acquisition Solutions for BioRID-II
Pedestrian Safety
Embedded DAQ & sensors for headforms, aPLI & FLEX legforms
Free Motion Headform
Embedded DAQ & sensor solutions for headform testing
The Leader in Integrated In-Dummy DAS
DTS is a leading provider of in-dummy DAS solutions around the world. Our miniature SLICE6 data acquisition system is designed specifically for in-dummy testing and anthropomorphic test devices. DTS data acquisition solutions support the full family of ATDs including frontal impact, side impact, rear impact, underbody blast, child, in addition to pedestrian headforms and legforms. From new ATD builds to retrofitting an entire fleet of crash test dummies, upgrading to in-dummy DAS provides a wide range of benefits, including a significant reduction in test setup time and improved data quality.
#1 BENEFIT: Minimizes Cabling & Connectors
Embedding the DAS reduces in-dummy cabling by up to 75%, eliminating the mass and noise caused by long sensor cables. A single exit cable replaces the mass of bulky trailing umbilical cables that can affect dummy positioning and target weight. Embedded DAS also minimizes the potential points of failure created by all the cables and connectors inherent in offboard DAS.
#2 BENEFIT: Reduces Test Setup Time
Embedding the DAS inside the ATD means less prep time which helps keep test schedules on time and on track. Fewer cables increases data reliability and helps maintain proper dummy mass and center of gravity (CoG). SLICE6 DAS features built-in triaxial tilt sensor for easier dummy positioning, plus temperature logging.
#3 BENEFIT: Improves Data Quality
Eliminating connectors and trailing cables that can alter test dynamics means fewer issues and less noise for improved data quality. DTS SLICE6 Integration Kits can be customized to support your specific test requirements including Euro NCAP, US NCAP & Global NCAP configurations. DTS DataPRO software features an intuitive user interface to create, control, and manage, every aspect of a test.

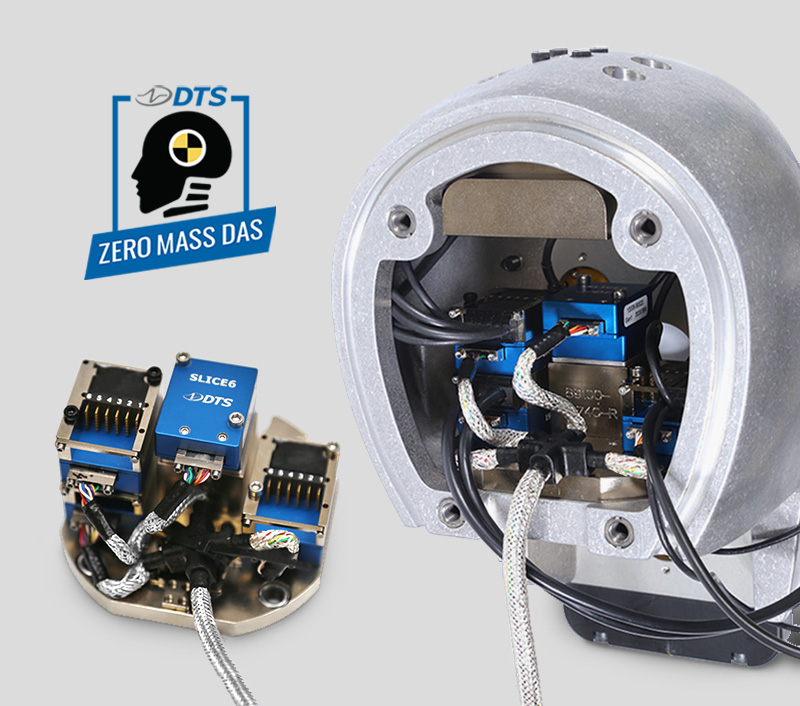

SLICE6 Integration Kits Available for Full Line of ATDs
From new ATDs or retrofits, DTS offers customized SLICE6 ATD Integration Kits for the complete family of anthropomorphic test devices (ATDs) and pedestrian safety testing forms.
SLICE6 ATD INTEGRATION KITS AVAILABLE FOR:
- THOR 5th/50th
- Hybrid III 5th/50th/95th
- WorldSID 5th/50th / SID-IIs / ES-2
- WIAMan
- Q6, Q10, H3-6, H3-10
- BioRID2
- aPLI/FLEX PLI Legforms
- Pedestrian Headforms
- Free Motion Headforms
SLICE6 In-Dummy DAS can be integrated by DTS experts or customer-installed. Contact sales@dtsweb.com today for a quote.
