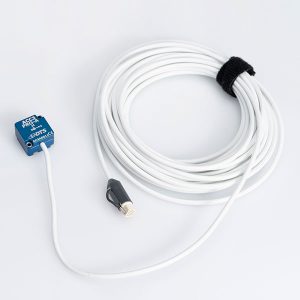

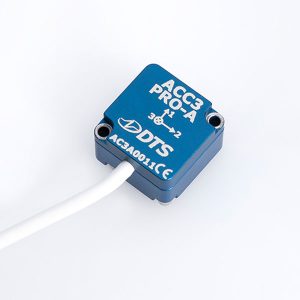

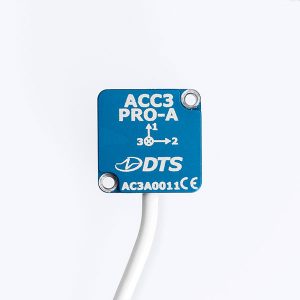

ACC3 PRO-A ACCELEROMETER

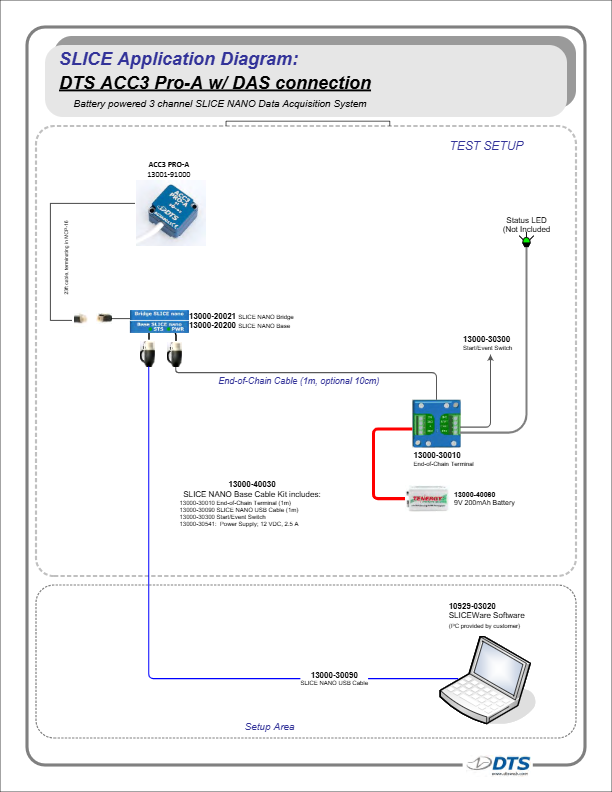

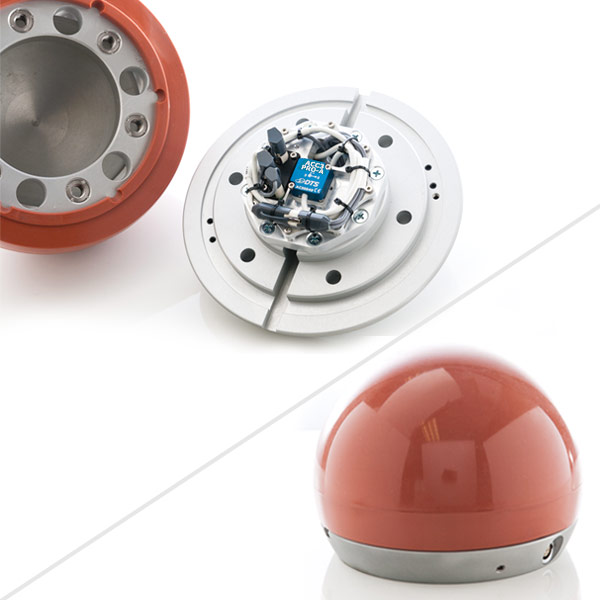

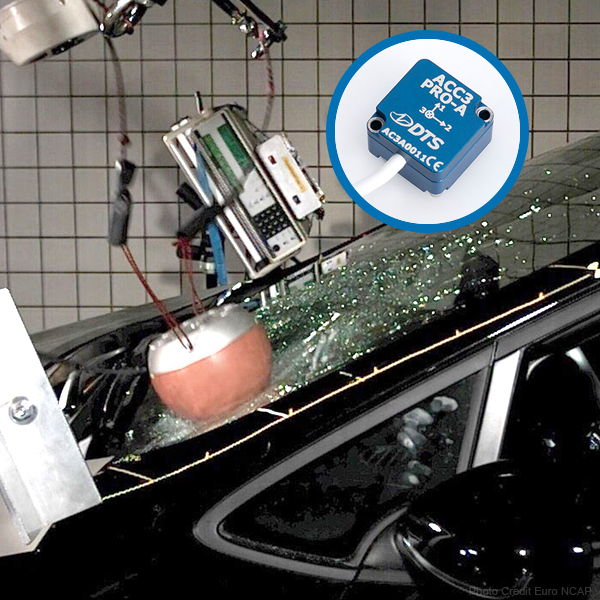

The ACC3 PRO-A is a triaxial linear accelerometer in a compact, rugged enclosure. The low-profile MEMS sensor is ideal for acceleration measurements for ATDs, headforms, legforms, automotive safety and in-flight testing. Pair with a triaxial angular rate sensor for a complete 6-degrees-of-freedom sensor package.
ACC3 PRO-A ACCELEROMETER
SPECIFICATIONS

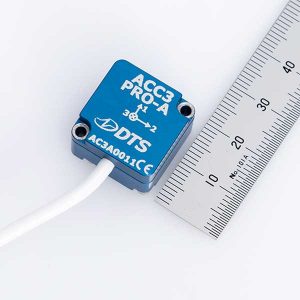

| Physical | 19 x 19 x 12.5 mm 10 g (without cable) |
| Features | Triaxial, rugged aluminum enclosure |
| Range | Range: ±500 g |
| Bandwidth | 0-5000 Hz, DC response |
| Excitation | 4.9-14.0 VDC |
| Current | 2 mA nominal |
| Shock Rating | 10000 g |
| Environmental | -40°C to 85°C, IP67 |
| Performance | Meets SAE J211/J2570, ISO 6487, NHTSA & Euro NCAP recommended practices |
ACC3 PRO-A ACCELEROMETER RESOURCES
FEATURES
FEATURES
|
High Performance
|
• Ultra-small, MEMS, triaxial linear accelerometer |
| • Low noise, high output: 3.75 mV/g (nominal) |
|
| • Measures acceleration up to ±500 g; shock-rated to 10000 g |
|
|
Versatile
|
• Shunt check compatible |
| • Temperature compensated |
|
| • Available adapter plate matches common mounting methods for variety of applications |
