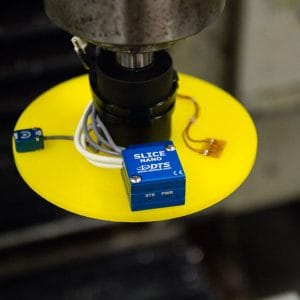

SLICE NANO
Ultra-compact modular data acquisition with integrated signal conditioning and onboard memory for dynamic test environments.
View Product Manual
Small Size
Rugged
Versatile
Onboard
Availability
Support
FEATURES
- Footprint: 26 × 31 mm miniature DAQ module
- Channels: configurable 3–24 ch. per stack, daisy-chain hundreds
- System scalability: daisy-chain stacks, hundreds of channels
- Sampling rate: 10 sps to 500k sps/channel
- Environmental: -40°C to +60°C
- Data Storage: 16 GB non-volatile flash storage
- Communication: USB interface with optional Ethernet connectivity
- Sensor support: acceleration, strain gauge, voltage, temperature, and other analog inputs
Highlights
Ultra-Compact Embedded DAQ
SLICE NANO features integrated signal conditioning in an ultra-small form factor, enabling placement inside confined test locations such as crash test dummies, vehicle structures, aerospace components, and experimental fixtures.

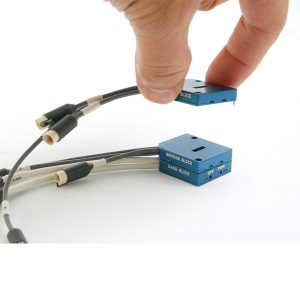

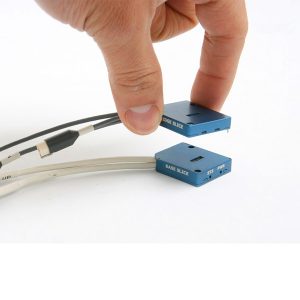

Modular Stack Architecture
SLICE NANO systems are configurable with a BASE module and stackable sensor module layers, allowing engineers to configure systems in 3-channel increments up to 24 channels per stack. Multiple stacks can be connected to create large, distributed measurement systems.
High-Speed Programmable Sampling
Each channel supports programmable sampling rates from 10 sps to 500k sps, enabling accurate capture of transient events such as crash pulses, shock events, and vibration signals.
Onboard Flash Data Recording
The system records directly to 16 GB onboard flash memory, enabling reliable standalone data capture during tests where tethered communication is not practical.
Applications
SLICE NANO is designed for short-duration, high-speed tests where package size and data quality both matter. Its compact architecture and standalone recording help reduce cable length, simplify setup, and support reliable close-to-sensor measurements in rugged environments
Applications include:
SOFTWARE
SLICEWare
Fast, intuitive setup, control, and data viewing software for SLICE hardware. Designed for efficient test execution with real-time visibility.
- System setup, control, and configuration
- Real-time display and monitoring
- Sensor/channel configuration
- Data recording and review
- Built-in diagnostics
- Automatic sensor assignment
SLICEWare Highlights
- Simple, fast setup workflow
- Optimized for smaller systems
DataPRO
The ultimate DTS hardware control and data management software. Configurable for lowchannel count tests to high-channel count tests with multiple users and client-server-based systems.
- System setup, control, and configuration
- Real-time display and monitoring
- Sensor/channel configuration
- Data recording and review
- Advanced diagnostics and reports
- Automatic sensor assignment
DataPRO Highlights
- Offline test builder
- SQL database integration
- ISO MME & EQX data formats
- Multiple data view
Additional Software Options:
Application Programming Interface (API)
- MODELS
- ACCESSORIES
- APPLICATION DIAGRAMS
SLICE NANO IEPE
SLICE NANO IEPE includes three (3) external sensor inputs that support IEPE (piezoelectric) sensors. SLICE NANO IEPE is rugged and crashworthy.
SEE PRODUCT OPTIONS →
SLICE NANO Bridge
SLICE NANO Bridge includes three (3) external sensor inputs that support full and half-bridge sensors, strain gauges, voltage input, thermocouples, and more. SLICE NANO Bridge is rugged and crashworthy.
SEE PRODUCT OPTIONS →
SLICE NANO Base+
SLICE NANO Base+ is the foundation of the SLICE NANO data acquisition system. It includes the microprocessor, memory, and control circuits. One Base+ module is required for every SLICE NANO stack. Each Base+ supports any combination of sensor layers, up to 24 channels per stack. SLICE NANO Base+ is rugged and crashworthy.
SEE PRODUCT OPTIONS →
Thermocouple Adapters
Thermocouple Adapters offer a simple plug-n-play solution for integrating temperature data with other measurement signals when using DTS SLICE data acquisition systems. Supports Type K thermocouples. Available in two temperature range options: -100 to +400 °C; 0 to 1250 °C.
SEE ACCESSORY OPTIONS →
SLICEWare Software
SLICEWare Software is an intuitive setup, control, and data viewing software for DTS data acquisition systems. SLICEWare software is designed to provide fast, easy-to-use tools for data collection.
SEE ACCESSORY OPTIONS →
DataPRO Software
DataPRO Software is a powerful setup, control, and data viewing software for DTS acquisition systems. The intuitive user interface is designed to help test engineers create, control, and manage every aspect of a test.
SEE ACCESSORY OPTIONS →
Range Expanders
Range Expanders are an adapter cable that allow DTS data acquisition systems to safely record voltage signals exceeding the standard input range. Available in ±20 V, ±40 V, ±60 V and ±800 V ranges. Various connector options available (LEMO, Omnetics, Tajimi).
SEE ACCESSORY OPTIONS →
SLICE IP68 Batteries
SLICE IP68 Power Pack is an external IP68-rated rechargeable battery pack available in 2200 mAH and 6600 mAh ratings. The SLICE IP68 data acquisition unit mounts directly to the SLICE IP8 Power Pack. SLICE IP68 Power Pack is rugged and crashworthy.
SEE ACCESSORY OPTIONS →
