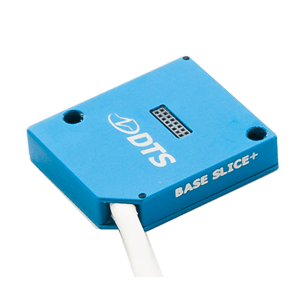

SLICE NANO Base+
SLICE NANO Base+ is the foundation of the SLICE NANO data acquisition system. It includes the microprocessor, memory, and control circuits. One Base+ module is required for every SLICE NANO stack. Each Base+ supports any combination of sensor layers, up to 24 channels per stack. A simple interface provides power, trigger, and communication signals to chain multiple SLICE stacks, or to connect to a PC for setup or downloading data. SLICE NANO stacks can be daisy-chained to accommodate higher-channel-count tests. SLICE NANO Base+ is rugged and crashworthy.
Model Options
| Part Number | Option Name |
|---|---|
| 13000-20200 | SLICE NANO Base+ (10 cm UP; 10 cm DOWN) |
| 13000-20206 | SLICE NANO Base+ (155 mm; 155 mm) |
| 13000-20209 | SLICE NANO Base+ (195 mm UP; 100 mm DOWN) |
| 13000-20202 | SLICE NANO Base+ (195 mm UP; 50 mm DOWN) |
| 13000-20208 | SLICE NANO Base+ (2 x 170 mm) |
| 13000-20230 | SLICE NANO Base+ (2 x 290 mm) |
| 13000-20231 | SLICE NANO Base+ (2 x 80 mm) |
| 13000-20204 | SLICE NANO Base+ (20 cm; 20 cm) |
| 13000-20205 | SLICE NANO Base+ (5 cm; 5 cm) |
| 13000-20201 | SLICE NANO Base+ (90 mm UP; 80 mm DOWN) |
| 13000-20203 | SLICE NANO Base+, 5000 g (10 cm UP; 10 cm DOWN) |
