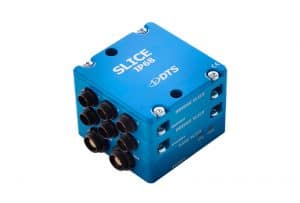

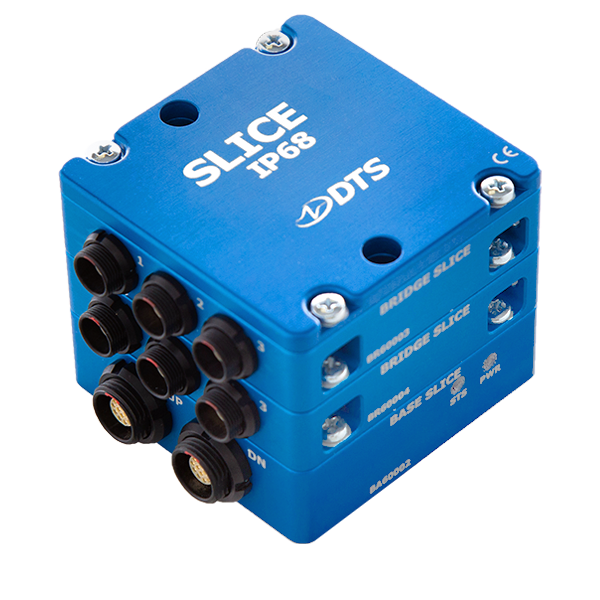

SLICE IP68
Waterproof modular onboard data acquisition system for harsh environments where water, dust, and rugged environments are factors.
View Product Manual
Rugged
Small Size
Versatile
Onboard
Availability
Support
FEATURES

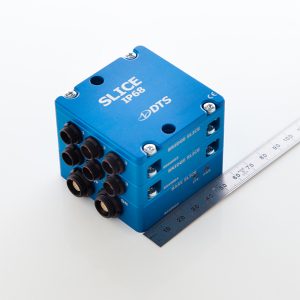

- Footprint: 60 × 60 mm footprint
- Channels: configurable 3–24 ch. per stack, daisy-chain hundreds
- Waterproof: IP68-rated connectors and enclosures
- Sampling rate: 10 sps to 500k sps/channel
- Shock rating: 100 g
- Data storage: 16 GB non-volatile flash memory
- USB communication with optional Ethernet connectivity
- Environmental: -40°C to +60°C, IP68, MIL-STD-810G protection
- Sensor support: bridge, accelerometer, angular rate, IEPE, strain, load, voltage, and temperature inputs
Highlights
IP68 Environmental Protection

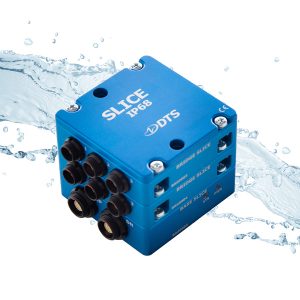

Designed for wet, dusty, and submerged conditions, the SLICE IP68 data acquisition system is rated for dust & water ingress (20 meters for up to 10 hours).
Modular Waterproof Architecture

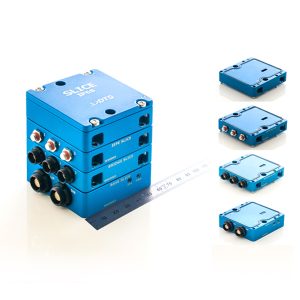

SLICE IP68 systems are configurable with a BASE module and stackable sensor module layers, allowing engineers to configure the channel mix needed while maintaining a rugged sealed platform. Multiple stacks can be daisy-chained for high-channel count tests.
Standalone Onboard Recording
Designed to embed in or on the test article, SLICE IP68 collects reliable data in harsh test environments where cabling, connectors, or external equipment are at risk from the elements.
Field-Ready Power Options
Optional IP68 power accessories support complete portable deployments for extended outdoor and remote testing.
Applications

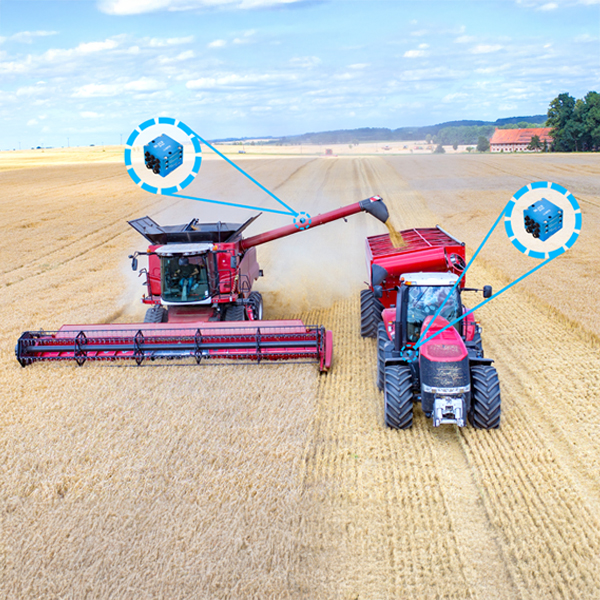

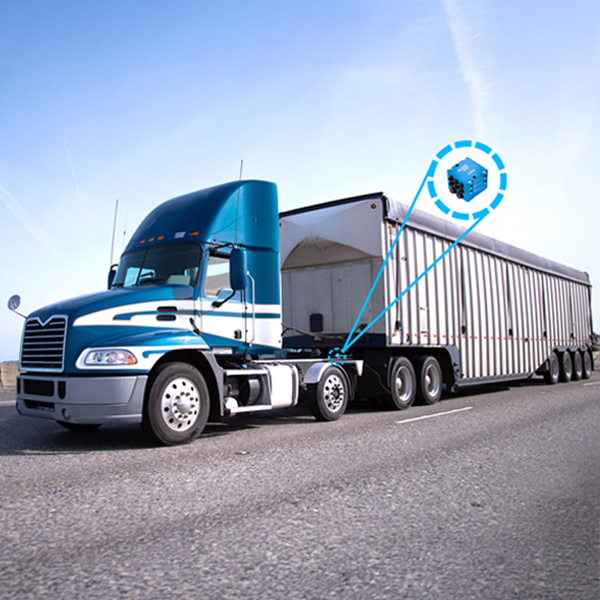

SLICE IP68 is built for field and outdoor testing where ingress protection matters as much as measurement quality. It brings onboard recording, flexible channel scaling, and rugged environmental performance to tests involving water, debris, and unpredictable test conditions.
Applications include:
SOFTWARE
SLICEWare
Fast, intuitive setup, control, and data viewing software for SLICE hardware. Designed for efficient test execution with real-time visibility.
- System setup, control, and configuration
- Real-time display and monitoring
- Sensor/channel configuration
- Data recording and review
- Built-in diagnostics
- Automatic sensor assignment
SLICEWare Highlights
- Simple, fast setup workflow
- Optimized for smaller systems
DataPRO
The ultimate DTS hardware control and data management software. Configurable for lowchannel count tests to high-channel count tests with multiple users and client-server-based systems.
- System setup, control, and configuration
- Real-time display and monitoring
- Sensor/channel configuration
- Data recording and review
- Advanced diagnostics and reports
- Automatic sensor assignment
DataPRO Highlights
- Offline test builder
- SQL database integration
- ISO MME & EQX data formats
- Multiple data view
Additional Software Options:
Application Programming Interface (API)
- MODELS
- ACCESSORIES

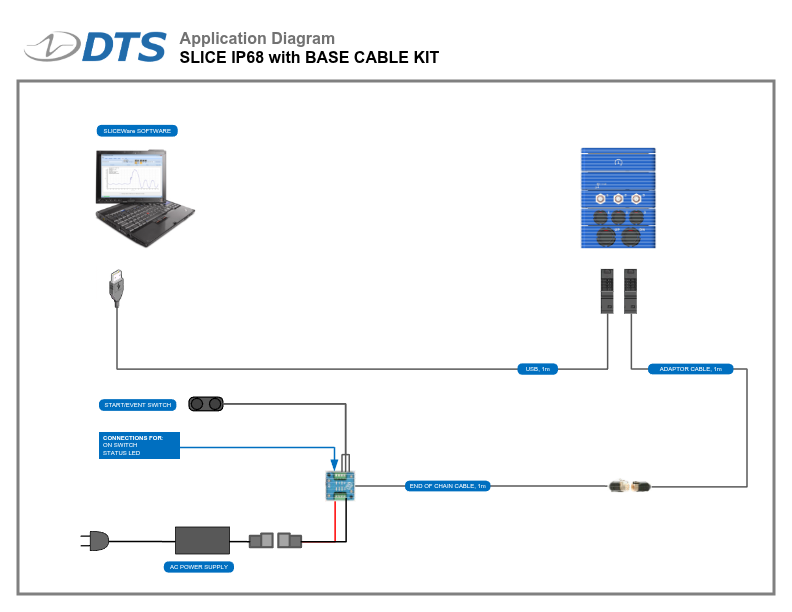

- APPLICATION DIAGRAMS
SLICE IP68 Base+
SLICE IP68 Base+ is the foundation of the SLICE IP68 data acquisition system. It includes the microprocessor, memory, and control circuits. One Base+ module is required for every SLICE IP68 stack. Each Base+ supports any combination of sensor layers, up to 24 channels per stack. SLICE IP68 Base+ is rugged and crashworthy.
SEE PRODUCT OPTIONS →
SLICE IP68 Bridge
SLICE IP68 Bridge includes three (3) external sensor inputs that support full and half-bridge sensors, strain gauges, voltage input, thermocouples, and more. SLICE IP68 Bridge is rugged and crashworthy.
SEE PRODUCT OPTIONS →
SLICE IP68 IEPE
SLICE IP68 IEPE includes three (3) external sensor inputs that support IEPE (piezoelectric) sensors. SLICE IP68 IEPE is rugged and crashworthy.
SEE PRODUCT OPTIONS →
SLICE IP68 Accel
SLICE IP68 Accel is a built-in sensor layer featuring three accelerometers. The triaxial sensor is available in multiple sensor ranges and bandwidths. SLICE IP68 Accel is rugged and crashworthy.
SEE PRODUCT OPTIONS →
SLICE IP68 ARS
SLICE IP68 ARS is a built-in sensor layer featuring three angular rate sensors. The triaxial sensor is available in multiple sensor ranges. SLICE IP68 ARS is rugged and crashworthy.
SEE PRODUCT OPTIONS →
Thermocouple Adapters
Thermocouple Adapters offer a simple plug-n-play solution for integrating temperature data with other measurement signals when using DTS SLICE data acquisition systems. Supports Type K thermocouples. Available in two temperature range options: -100 to +400 °C; 0 to 1250 °C.
SEE ACCESSORY OPTIONS →
SLICEWare Software
SLICEWare Software is an intuitive setup, control, and data viewing software for DTS data acquisition systems. SLICEWare software is designed to provide fast, easy-to-use tools for data collection.
SEE ACCESSORY OPTIONS →
DataPRO Software
DataPRO Software is a powerful setup, control, and data viewing software for DTS acquisition systems. The intuitive user interface is designed to help test engineers create, control, and manage every aspect of a test.
SEE ACCESSORY OPTIONS →
Range Expanders
Range Expanders are an adapter cable that allow DTS data acquisition systems to safely record voltage signals exceeding the standard input range. Available in ±20 V, ±40 V, ±60 V and ±800 V ranges. Various connector options available (LEMO, Omnetics, Tajimi).
SEE ACCESSORY OPTIONS →

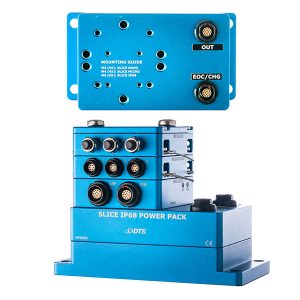

SLICE IP68 Battery Add Cable Kit
SLICE IP68 Battery Add Cable Kit includes all the components needed to connect the SLICE IP68 to the IP68 Power Pack and charge the DAS.
SEE ACCESSORY OPTIONS →
