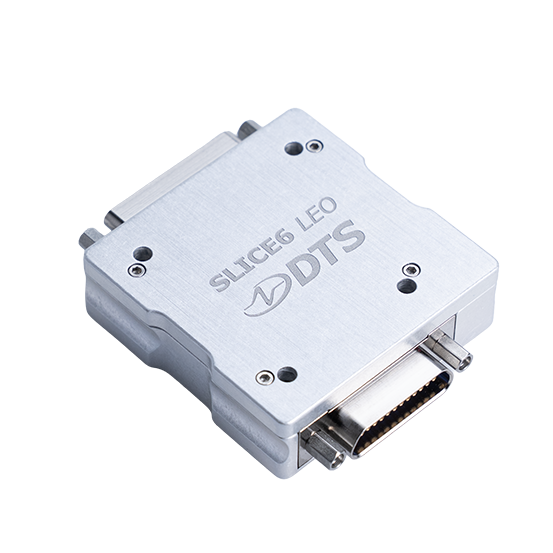

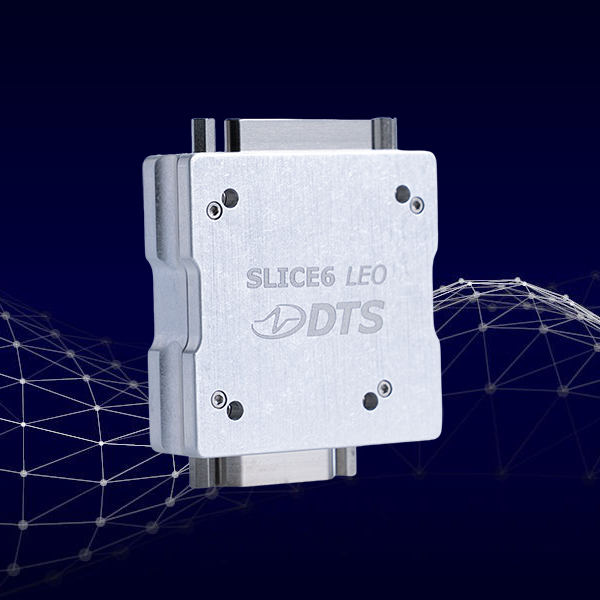

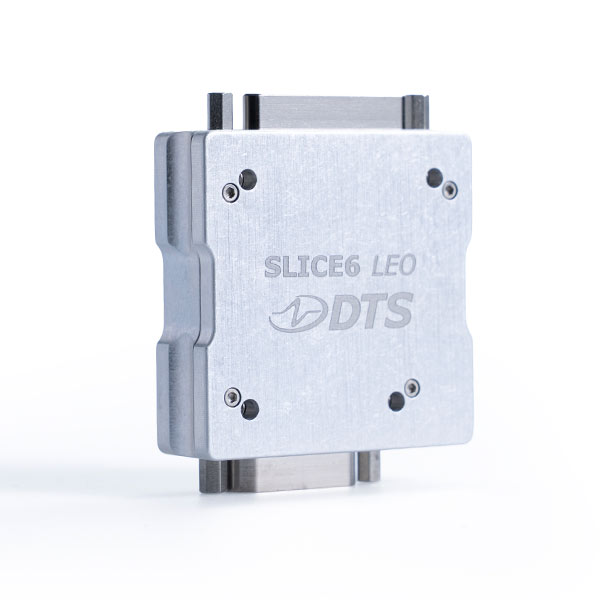

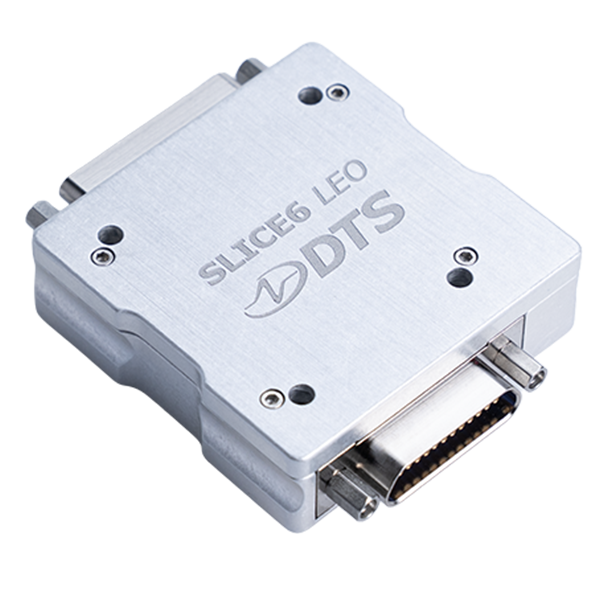

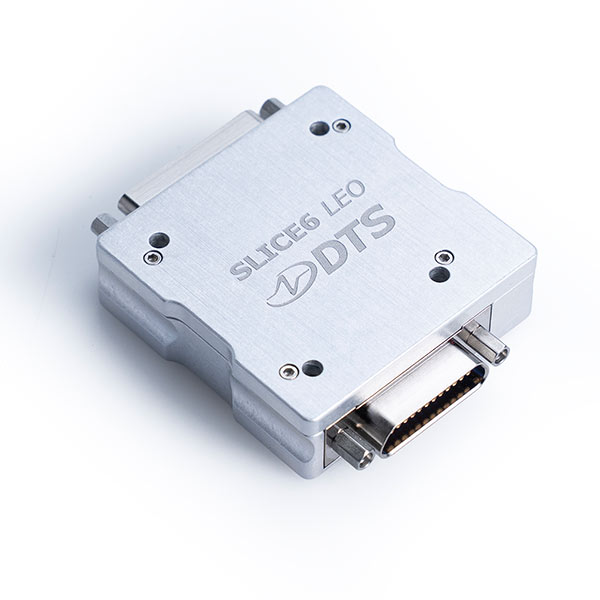

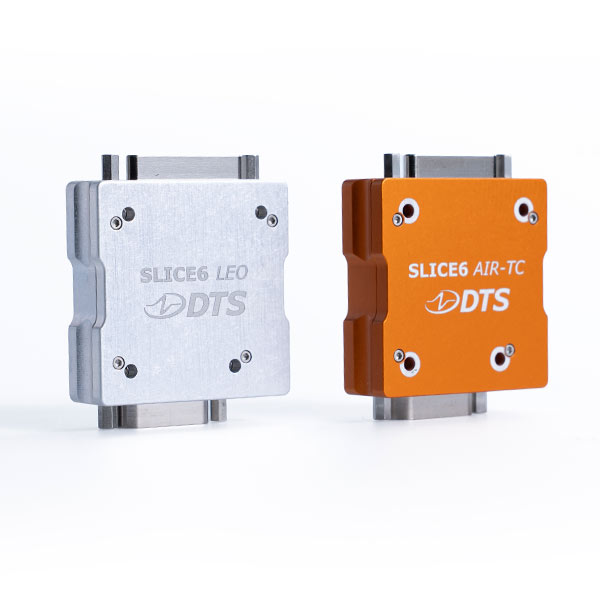

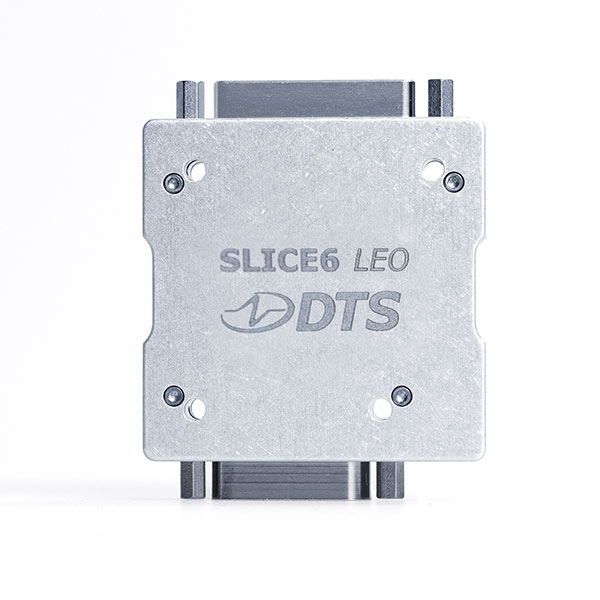

SLICE6 LEO
Radiation-tolerant miniature data acquisition with full analog sensor support for testing in low Earth orbit environments.
FEATURES
- Size: 42 × 52 × 13 mm, 50 grams
- Channels: 6-channel module; standalone, networked, or FTI-integrated deployments
- Record: 400k sps/channel, 16 GB non-volatile flash memory
- Stream: 20k sps/channel; IRIG 106 Chapter 10, IENA or TmNS
- UDP Support: Configurable to function as a UDP Ethernet recorder
- Shock rating: 500 g
- UART: RS232/422/485 serial data capture
- Communication: 100M bps Ethernet
- Time Synchronization: IEEE 1588 PTPv2, IRIG-B, and GPS/1PPS
- Environmental: -40°C to +80°C, MIL-STD ratings, protection for EMI, EMC, RFI
- Radiation Tolerance: 18 krad total ionizing dose

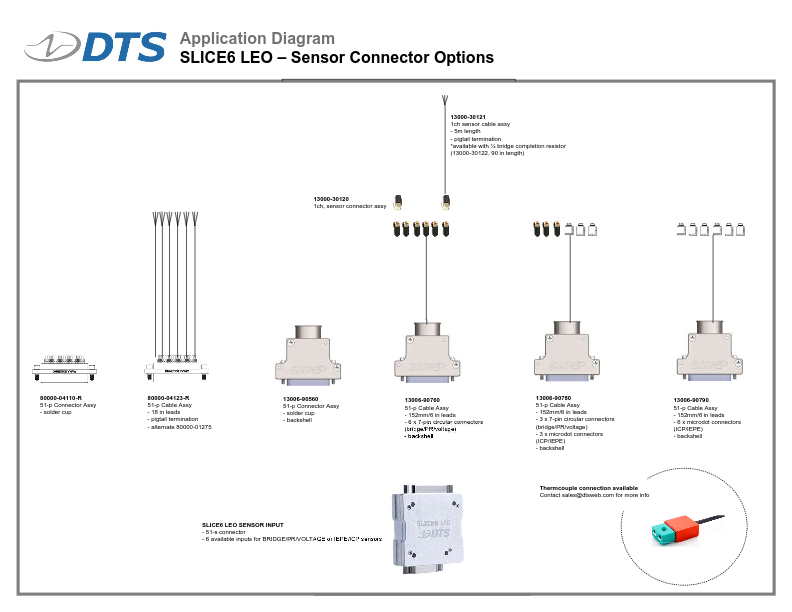

- Sensor support: Bridge, IEPE, MEMS, voltage, thermocouple, RTD, etc.
Radiation-Tolerant Spaceflight DAQ
SLICE6 LEO is engineered for low Earth orbit and spaceflight testing applications, delivering radiation-tolerant data acquisition
Compact Embedded Architecture
Its miniature form factor and low-mass design allow engineers to position the DAQ close to sensors, minimizing cabling, reducing installation complexity, and improving signal integrity.
Flexible Multi-Sensor Support
Universal analog signal conditioning supports bridge, IEPE, thermocouple, RTD, voltage, and serial sensor inputs, enabling a single DAQ platform to support a wide range of mission-critical testing.
Real-Time Streaming & Redundant Recording
Simultaneous real-time streaming and onboard recording provide reliable data capture for high-consequence testing, supporting IRIG 106 Chapter 10, IENA, and TmNS telemetry formats.
Applications
SLICE6 LEO supports aerospace and defense programs that require rugged, compact, radiation-tolerant data acquisition for onboard instrumentation and distributed sensor measurements. The system combines synchronized real-time streaming with onboard recording to support mission-critical testing in harsh, space-constrained environments.
Applications include:
- Low Earth Orbit Testing
- Satellite Monitoring
- Launch Vehicle Characterization
SOFTWARE
DataPRO
The ultimate DTS hardware control and data management software. Configurable for lowchannel count tests to high-channel count tests with multiple users and client-server-based systems.
- System setup, control, and configuration
- Real-time display and monitoring
- Sensor/channel configuration
- Data recording and review
- Advanced diagnostics and reports
- Automatic sensor assignment
DataPRO Highlights
- Offline test builder
- SQL database integration
- ISO MME & EQX data formats
- Multiple data view
Additional Software Options:
Application Programming Interface (API)
IRIG Chapter 10/IENA/TmNS Streaming
LabVIEW (Display Only)
- MODELS
- ACCESSORIES

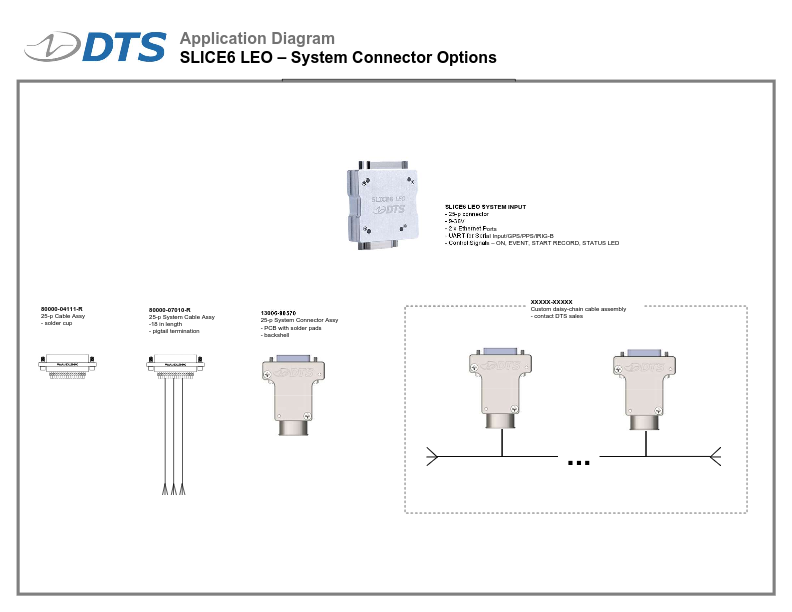

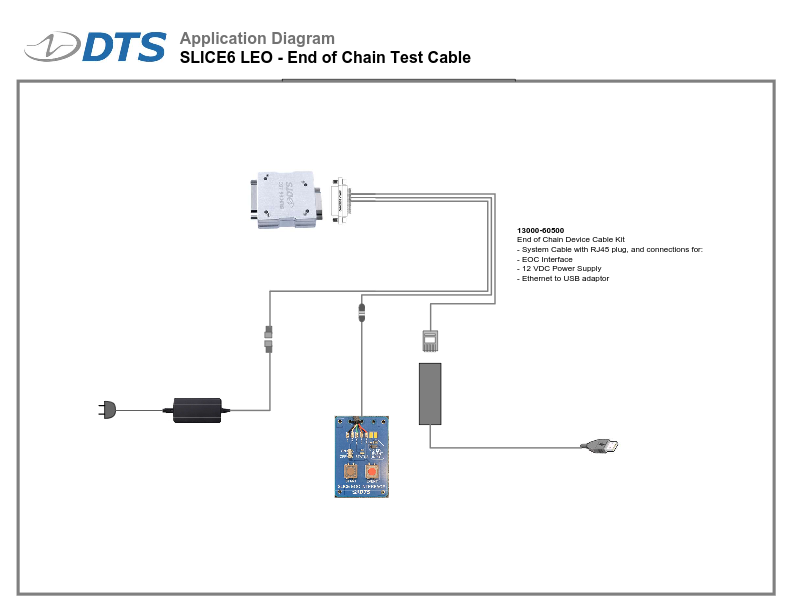

- APPLICATION DIAGRAMS

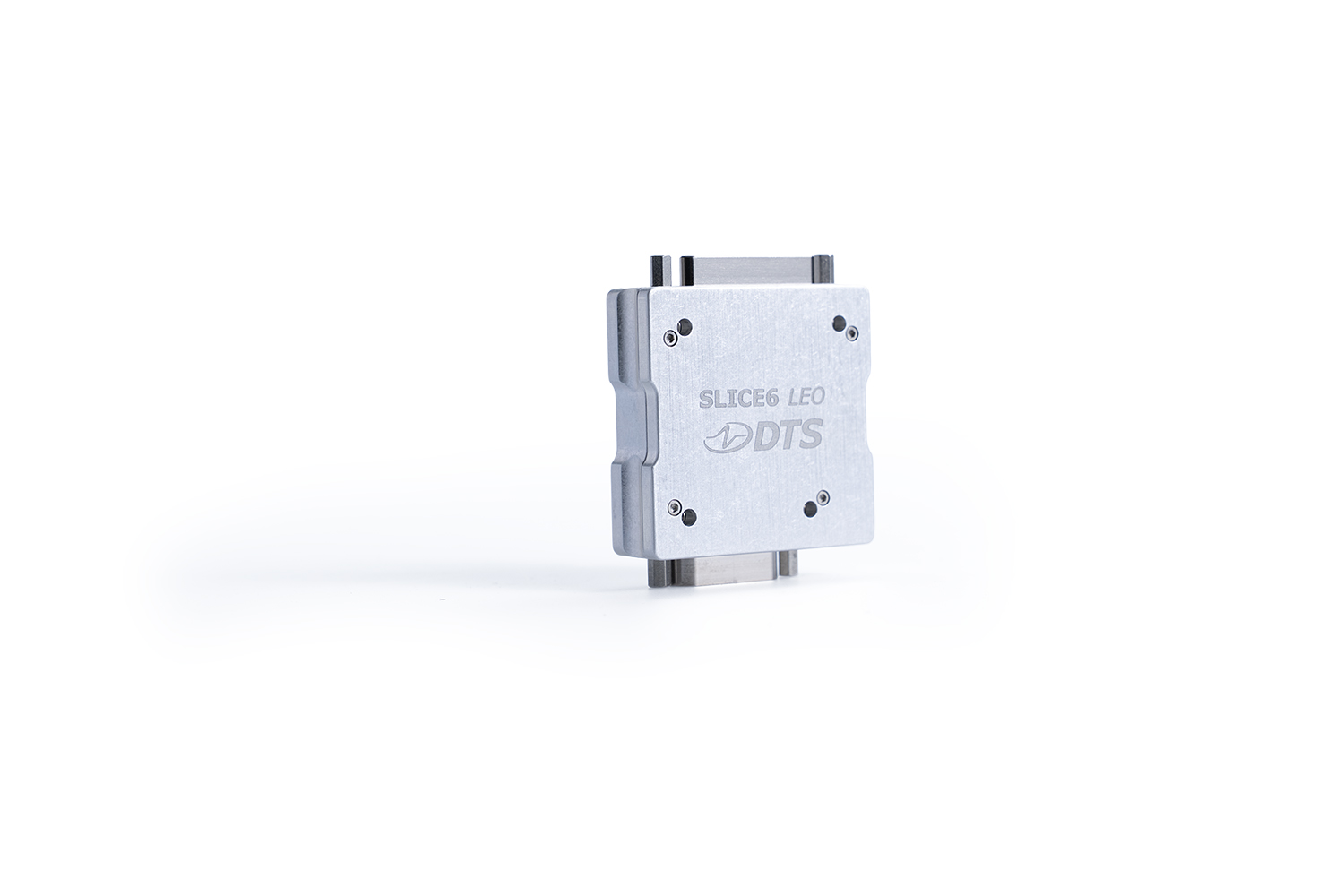

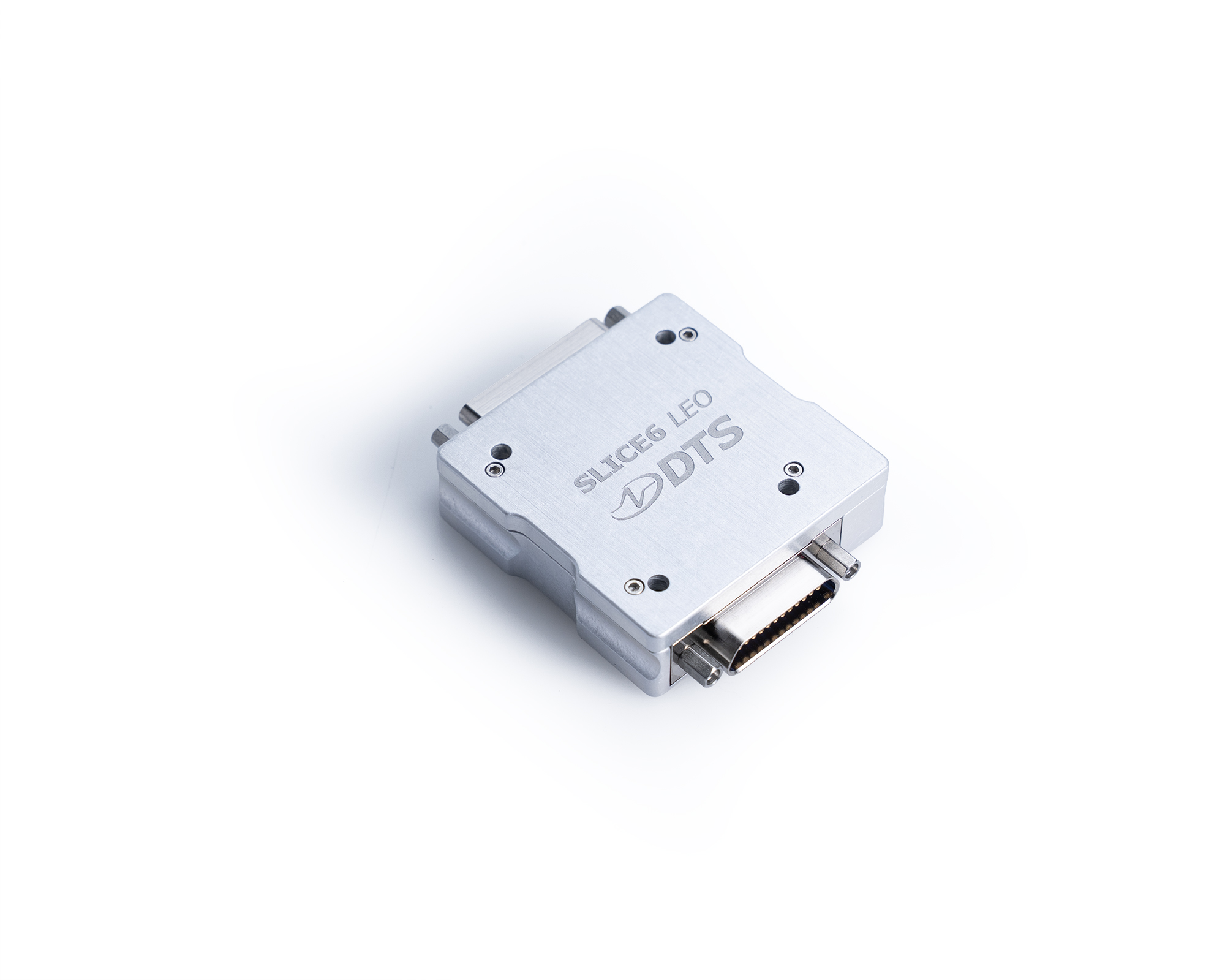

SLICE6 LEO
SLICE6 LEO is a compact 6-channel radiation-tolerant data acquisition unit for low Earth orbit applications. SWaP-optimized for size, weight, and power, SLICE6 LEO features universal analog sensor support, real-time streaming, and/or onboard recording.
SEE PRODUCT OPTIONS →
Thermocouple Adapters
Thermocouple Adapters offer a simple plug-n-play solution for integrating temperature data with other measurement signals when using DTS SLICE data acquisition systems. Supports Type K thermocouples. Available in two temperature range options: -100 to +400 °C; 0 to 1250 °C.
SEE ACCESSORY OPTIONS →

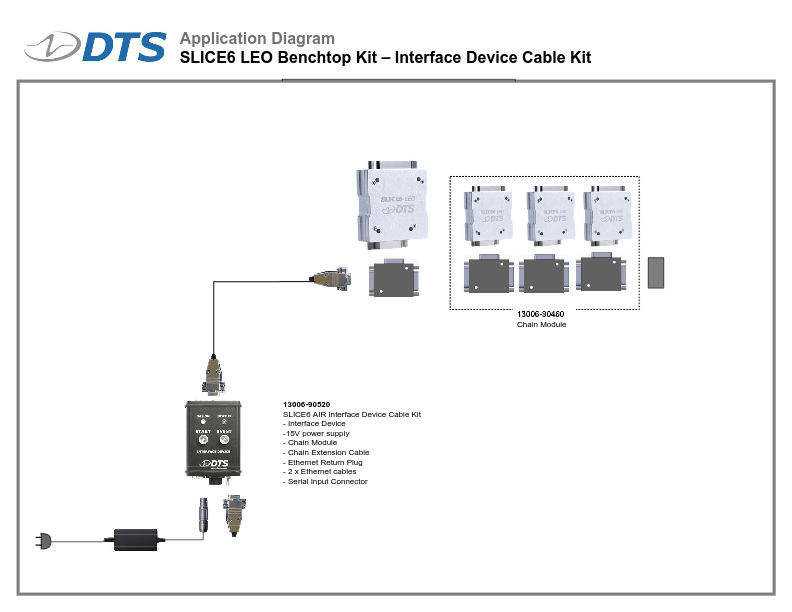

SLICE6 AIR Interface Device Cable Kit
SLICE6 AIR Interface Device Cable Kit allows users to connect and configure up to 10 SLICE6 AIR, SLICE6 AIR-BR, or SLICE6 LEO modules for benchtop checkout and verification. The SLICE6 AIR Interface Device Cable Kit includes: SLICE6 AIR-BR Interface Device, Chain Module, S6A Chain Extension Cable, Ethernet Return Plug, Ethernet Cable, Serial Input Connector, and Power Supply.
SEE ACCESSORY OPTIONS →

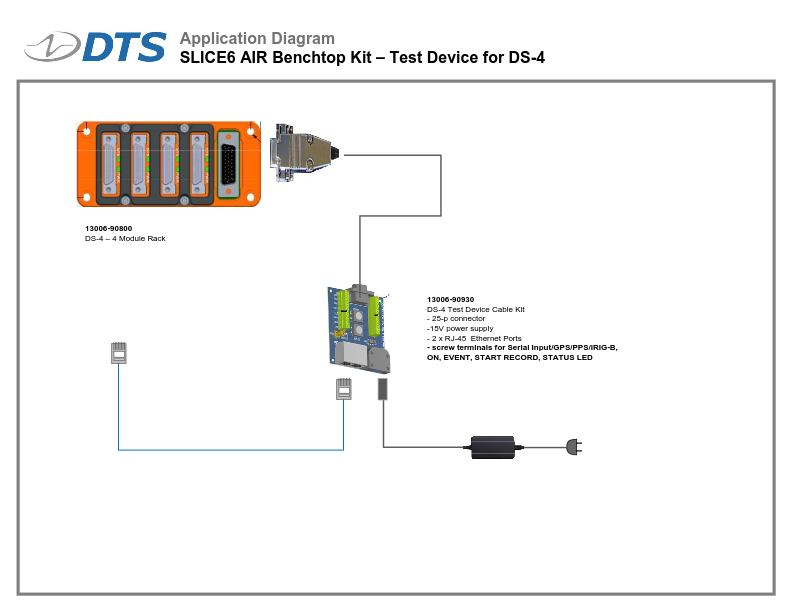

SLICE6 AIR/SLICE6 AIR-BR/TSR AIR Test Device
SLICE6 AIR/SLICE6 AIR-BR/TSR AIR Test Device connects directly to the system connector to support time synchronization (1588 PTPv2, IRIG-B, GPS/1PPS) and control onboard recording functions: • On/off switch • Start record • Event/T=0 • Status LED The SLICE6 AIR/SLICE6 AIR-BR/TSR AIR Test Device Kit includes: SLICE6 AIR Test Device and a Power Supply.
SEE ACCESSORY OPTIONS →
Range Expanders
Range Expanders are an adapter cable that allow DTS data acquisition systems to safely record voltage signals exceeding the standard input range. Available in ±20 V, ±40 V, ±60 V and ±800 V ranges. Various connector options available (LEMO, Omnetics, Tajimi).
SEE ACCESSORY OPTIONS →
