DDR – Dynamic Data Recorder

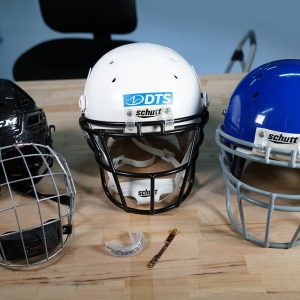

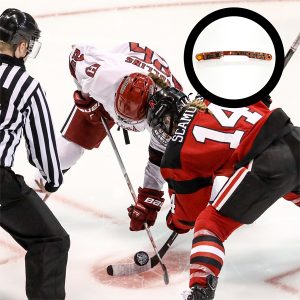

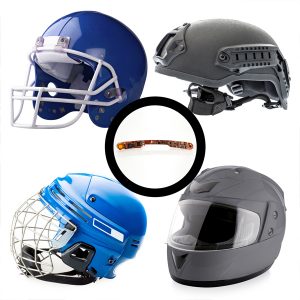

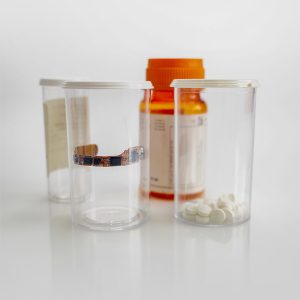

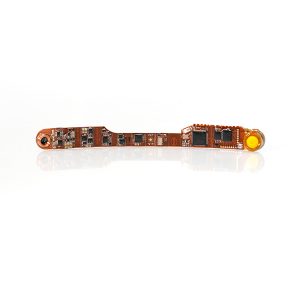

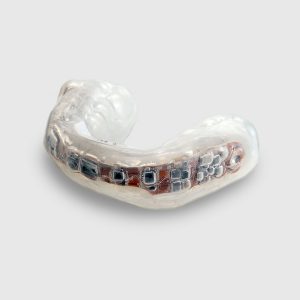

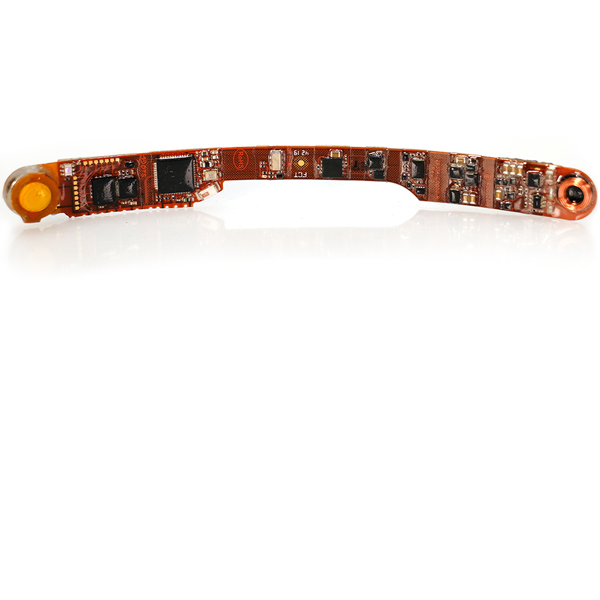

The DDR is ultra-small, ultra-low power 6DOF data logger with built-in sensors, memory and Bluetooth communication. The flexible DDR circuit is the World’s smallest 6DOF data logger and can be embedded in helmets & mouth guards for injury biomechanics safety testing or pill bottles for transit testing.
DDR – DYNAMIC DATA RECORDER
SPECIFICATIONS

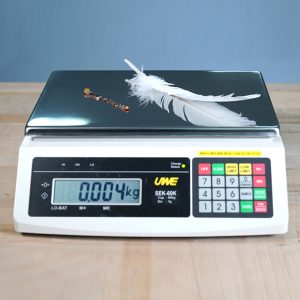

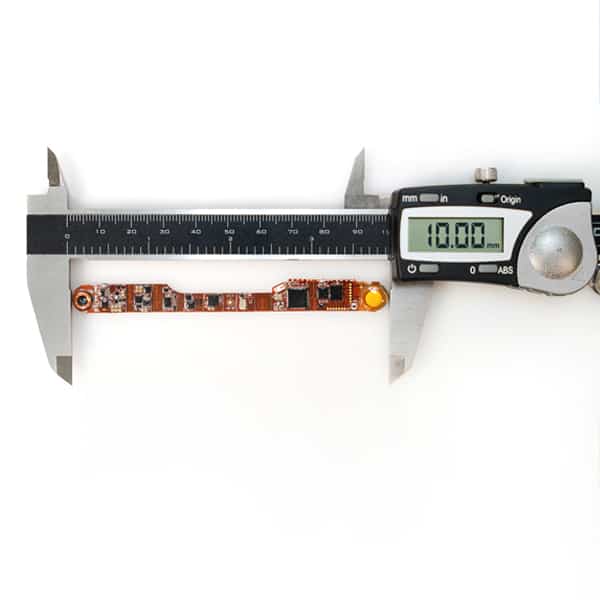

| Physical | 100 x 9 x 4.5 mm, 2.5 g |
| Features | Ultra-lightweight & low power, flexible circuit, inductive rechargeable battery |
| Sampling | 100 to 5500 samples per second/channel |
| Channels |
6 channels: 3-axis linear accelerometer, 3-axis angular accelerometer |
| Shock Rating | 10000 g operating/survivable |
| Data Storage | 8 Mb non-volatile: 100000 samples/channel |
| Communication | Bluetooth 4.0 to USB adapter |
| Environmental | -20°C to 60°C, IP67 |
| Software | DDR Control |
| Performance | Meets SAE J211, ISO 6487 data acquisition requirements |
DDR – DYNAMIC DATA RECORDER RESOURCES
FEATURES
FEATURES
|
Easy to Use
|
• Microprocessor, power, signal conditioning, flash memory |
| • Complete solution, includes data recorder and built-in sensors |
|

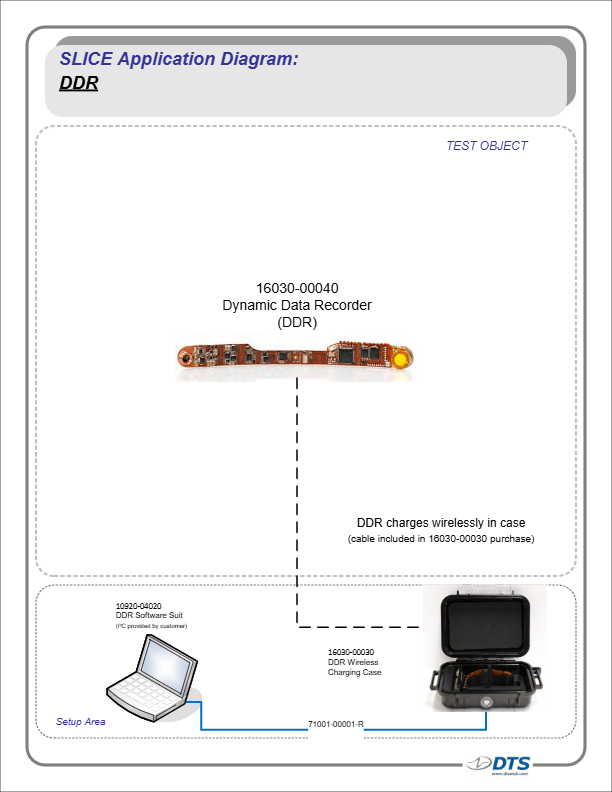

| • Bluetooth communication, wireless inductive charging | |
| • Flex circuit can be laid flat or curved around or in test article |
|
|
High Performance
|
• Non-volatile data memory; 100,000 samples per channel |
| • Logs time, temperature and date per event | |
| • High shock resistant | |
|
Configurable
|
• Programmable level trigger on each axis, automatically re-arms |
| • User configurable sampling rate and anti-alias filter |
|
| • Programmable event duration with pre-trigger data buffer |
|
|

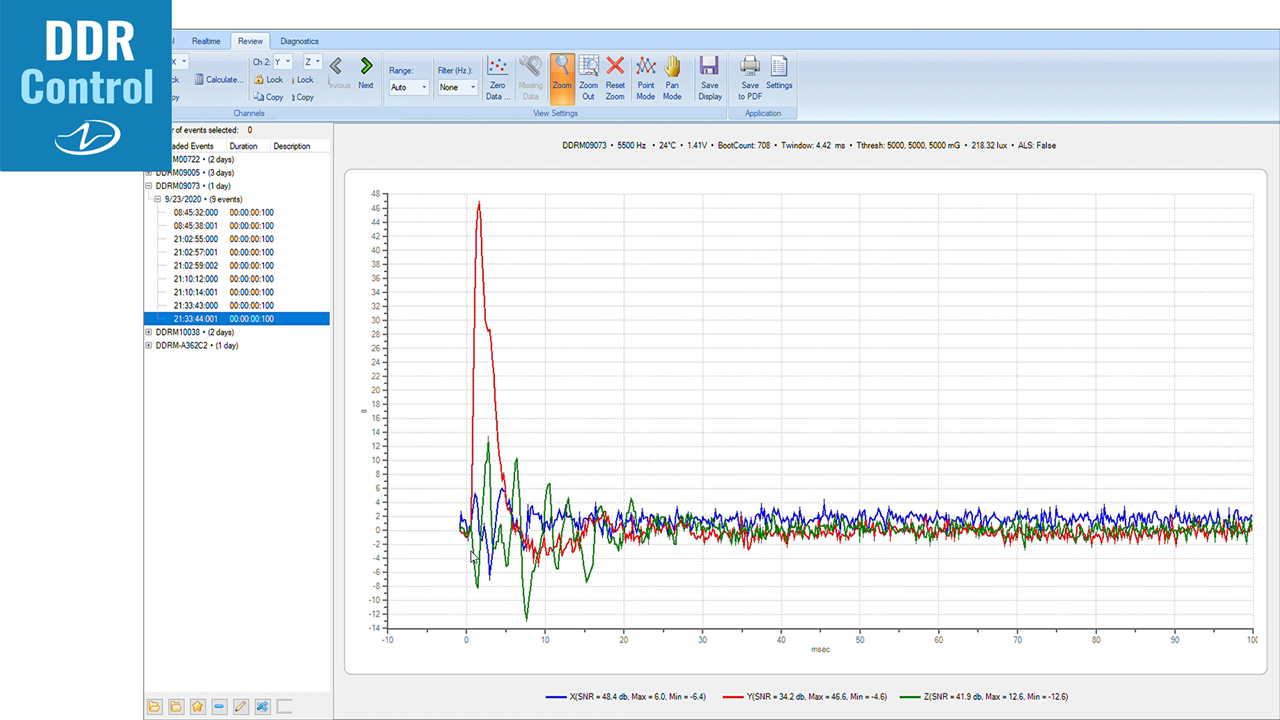

Simple Software
|
• Simple set-up, control and data viewing |
| • SAE filters, view multiple channels/test |
|
| • Multiple data export options |
