SLICE PRO SIM

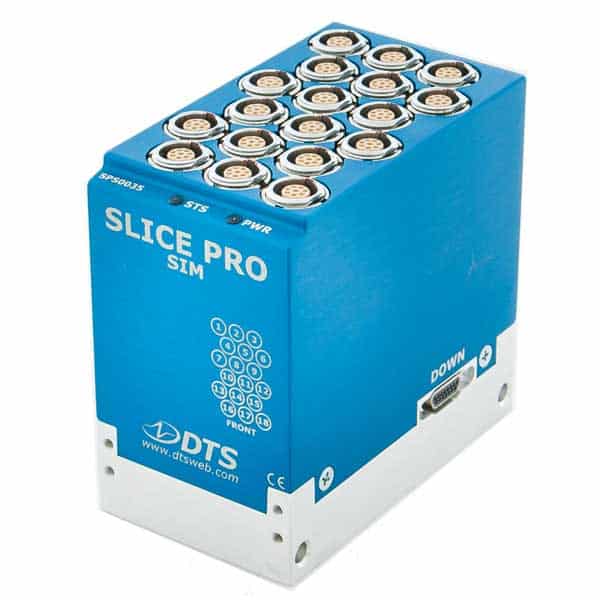

SLICE PRO SIM is a sensor input module for the modular SLICE PRO data acquisition system. The SLICE PRO SIM supports a variety of external sensor types and is available with 9 or 18 channels per module, and LEMO 1B or Tajimi connectors. The SLICE PRO SIM can be used as part of a SLICE PRO system or as a standalone unit. The SLICE PRO SIM is part of a compact and rugged data acquisition system for dynamic testing. SLICE PRO SIM is rugged and crashworthy.
Model Options
| Part Number | Option Name |
|---|---|
| 13018-7A121 | SLICE PRO SIM (18 ch); automotive, 120 ohm br (Option 21) |
| 13018-7A139 | SLICE PRO SIM (18 ch); automotive, 120 ohm br (Option 39) |
| 13018-7A142 | SLICE PRO SIM (18 ch); automotive, 120 ohm br (Option 42) |
| 13018-7A102 | SLICE PRO SIM (18 ch); automotive, 120 ohm br (Option A5) |
| 13018-7A321 | SLICE PRO SIM (18 ch); automotive, 350 ohm br (Option 21) |
| 13018-7A325 | SLICE PRO SIM (18 ch); automotive, 350 ohm br (Option 25) |
| 13018-7A339 | SLICE PRO SIM (18 ch); automotive, 350 ohm br (Option 39) |
| 13018-7A340 | SLICE PRO SIM (18 ch); automotive, 350 ohm br (Option 40) |
| 13018-7A342 | SLICE PRO SIM (18 ch); automotive, 350 ohm br (Option 42) |
| 13018-7A345 | SLICE PRO SIM (18 ch); automotive, 350 ohm br (Option 45) |
| 13018-7A350 | SLICE PRO SIM (18 ch); automotive, 350 ohm br (Option 50) |
| 13018-7A302 | SLICE PRO SIM (18 ch); automotive, 350 ohm br (Option A5) |
| 13018-7A309 | SLICE PRO SIM (18 ch); automotive, 350 ohm br(Opt 09) |
| 13018-7A356 | SLICE PRO SIM (18 ch); automotive, 350 ohm br(Opt 56) |
| 13018-7H121 | SLICE PRO SIM (18 ch); high bandwidth, 120 ohm br (Option 21) |
| 13018-7H139 | SLICE PRO SIM (18 ch); high bandwidth, 120 ohm br (Option 39) |
| 13018-7H142 | SLICE PRO SIM (18 ch); high bandwidth, 120 ohm br (Option 42) |
| 13018-7H321 | SLICE PRO SIM (18 ch); high bandwidth, 350 ohm br (Option 21) |
| 13018-7H339 | SLICE PRO SIM (18 ch); high bandwidth, 350 ohm br (Option 39) |
| 13018-7H345 | SLICE PRO SIM (18 ch); high bandwidth, 350 ohm br (Option 45) |
| 13018-7H346 | SLICE PRO SIM (18 ch); high bandwidth, 350 ohm br (Option 46) |
| 13018-7M121 | SLICE PRO SIM (18 ch); max bandwidth, 120 ohm br (Option 21) |
| 13018-7M139 | SLICE PRO SIM (18 ch); max bandwidth, 120 ohm br (Option 39) |
| 13018-7M339 | SLICE PRO SIM (18 ch); max bandwidth, 350 ohm br (Option 39) |
| 13018-7M342 | SLICE PRO SIM (18 ch); max bandwidth, 350 ohm br (Option 42) |
| 13018-7M302 | SLICE PRO SIM (18 ch); max bandwidth, 350 ohm br (Option A5) |
| 13009-7A121 | SLICE PRO SIM (9 ch); automotive, 120 ohm br (Option 21) |
| 13009-7A102 | SLICE PRO SIM (9 ch); automotive, 120 ohm br (Option A5) |
| 13009-7A339 | SLICE PRO SIM (9 ch); automotive, 350 ohm br (Option 39) |
| 13009-7A342 | SLICE PRO SIM (9 ch); automotive, 350 ohm br (Option 42) |
| 13009-7A302 | SLICE PRO SIM (9 ch); automotive, 350 ohm br (Option A5) |
| 13009-7A304 | SLICE PRO SIM (9 ch); automotive, 350 ohm br (Option E) |
| 13009-7H140 | SLICE PRO SIM (9 ch); high bandwidth, 120 ohm br (Option 40) |
| 13009-7H345 | SLICE PRO SIM (9 ch); high bandwidth, 350 ohm br (Option 45) |
| 13009-7M121 | SLICE PRO SIM (9 ch); max bandwidth, 120 ohm br (Option 21) |
| 13009-7M139 | SLICE PRO SIM (9 ch); max bandwidth, 120 ohm br (Option 39) |
| 13009-7M339 | SLICE PRO SIM (9 ch); max bandwidth, 350 ohm br (Option 39) |
| 13009-7M347 | SLICE PRO SIM (9 ch); max bandwidth, 350 ohm br (Option 47) |
