HELICOPTER DROP TESTING
HELICOPTER DROP TESTING
STRUCTURAL ANALYSIS & OCCUPANT SAFETY, FULL-SCALE DROP TESTS
Testing Challenges:
- Full-scale fuselage drop test
- Complicated high-channel count tests
- Mix of structural measurements & ATDs for occupant safety
- Onboard DAQ solutions with long sensor cable runs
- Time-consuming and costly
- Reliable data collection in destructive tests
- Synchronizing power, triggering, communication, & cameras
DTS Key Features:
- Rugged, crashworthy DTS data acquisition solutions
- Flexible configurations, in-dummy DAS & offboard DAS
- Full sensor support: bridge, IEPE, MEMS, strain, load, voltage, temperature, and more
- Onboard recording, data writes to non-volatile flash memory
- Powerful set-up, control, and data viewing software
- Experts in dynamic safety testing and injury biomechanics

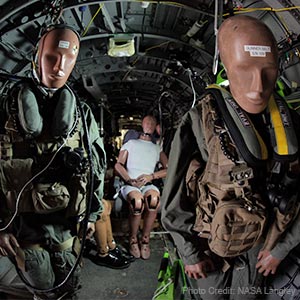

DID YOU KNOW? (Images shown above) NNASA’s Langley Landing & Impact Research (LANDIR) facility used DTS solutions to capture critical data during a full-scale drop test of a 45-foot CH-46E Sea Knight Marine helicopter. The helicopter was dropped from 9 meters at 48 km/h, with over 350 sensor channels, 13 instrumented crash test dummies, additional non-instrumented ATDs, and 40 high-speed cameras collecting precise impact data.
DTS ADVANCED MEASUREMENT SOLUTIONS - MINIATURE | RUGGED | HIGH-SPEED
RECOMMENDED DTS PRODUCTS FOR HELICOPTER DROP TESTING
SLICE PRO
TSR 6DXP
SLICE NANO
SLICE MICRO
