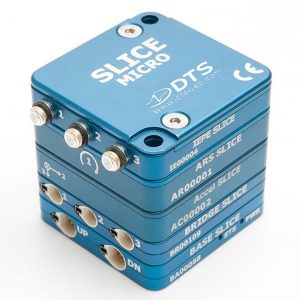

SLICE MICRO
Compact modular data acquisition with built-in connectors, integrated signal conditioning, and onboard memory for demanding dynamic test environments.
View Product Manual
Small Size
Rugged
Versatile
Onboard
Availability
Support
FEATURES
- Footprint: 42 × 42 mm footprint with built-in connectors
- Channels: configurable 3–24 ch. per stack, daisy-chain hundreds
- Sampling rate: 10 sps to 500k sps/channel
- Shock rating: 500 g
- Environmental: -40°C to +60°C, IP51, MIL-STD-810G
- Data Storage:16 GB non-volatile flash memory
- Communication: USB interface with optional Ethernet connectivity
- Sensor support: bridge, accelerometer, angular rate, IEPE, strain, load, voltage, and temperature inputs
Highlights

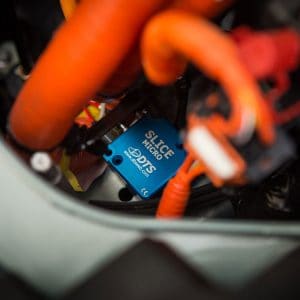

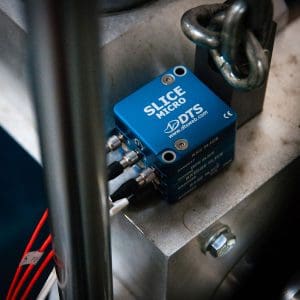

Compact Rugged Package

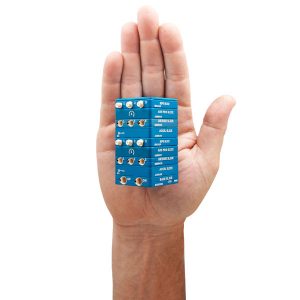

SLICE MICRO combines small size with built-in connectors, making it easier to deploy in harsh tests without altering the test dynamics.

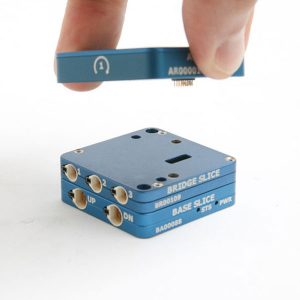

Scalable Channel Architecture
SLICE MICRO systems are configurable with a BASE module and stackable sensor module layers, allowing engineers to configure systems in 3-channel increments up to 24 channels per stack. Multiple stacks can be connected to create large, distributed measurement systems.
Flexible Sensor Support
Broad analog sensor compatibility allows test engineers greater freedom to configure systems around measurement requirements rather than the hardware.
Standalone Data Capture
Direct-to-flash recording supports untethered acquisition during destructive, remote, or difficult-to-access tests.
Applications
SLICE MICRO fits dynamic test programs that require rugged, connectorized packaging while retaining the benefits of a miniature onboard DAQ. It supports a wide range of sensors, shortens cable runs, and enables reliable standalone recording in harsh conditions.
Applications include:
SOFTWARE
SLICEWare
Fast, intuitive setup, control, and data viewing software for SLICE hardware. Designed for efficient test execution with real-time visibility.
- System setup, control, and configuration
- Real-time display and monitoring
- Sensor/channel configuration
- Data recording and review
- Built-in diagnostics
- Automatic sensor assignment
SLICEWare Highlights
- Simple, fast setup workflow
- Optimized for smaller systems
DataPRO
The ultimate DTS hardware control and data management software. Configurable for lowchannel count tests to high-channel count tests with multiple users and client-server-based systems.
- System setup, control, and configuration
- Real-time display and monitoring
- Sensor/channel configuration
- Data recording and review
- Advanced diagnostics and reports
- Automatic sensor assignment
DataPRO Highlights
- Offline test builder
- SQL database integration
- ISO MME & EQX data formats
- Multiple data view
Additional Software Options:
Application Programming Interface (API)
- MODELS
- ACCESSORIES

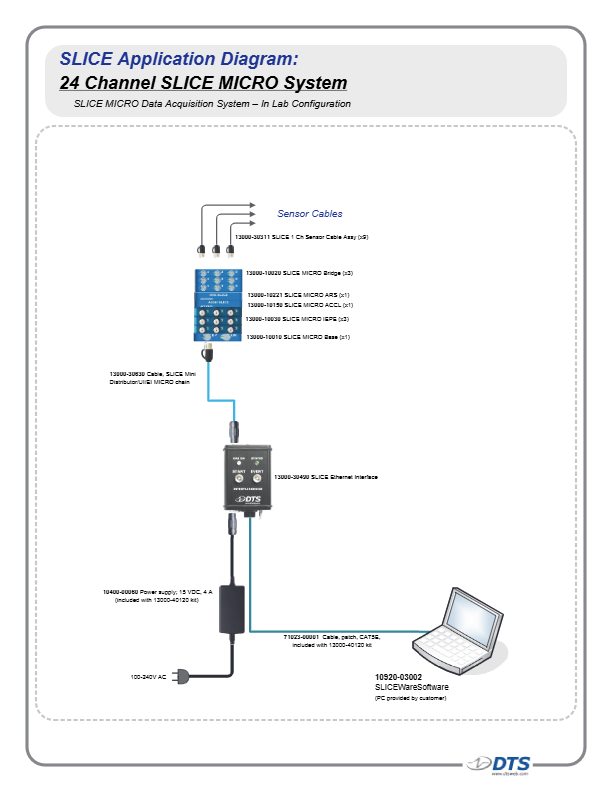

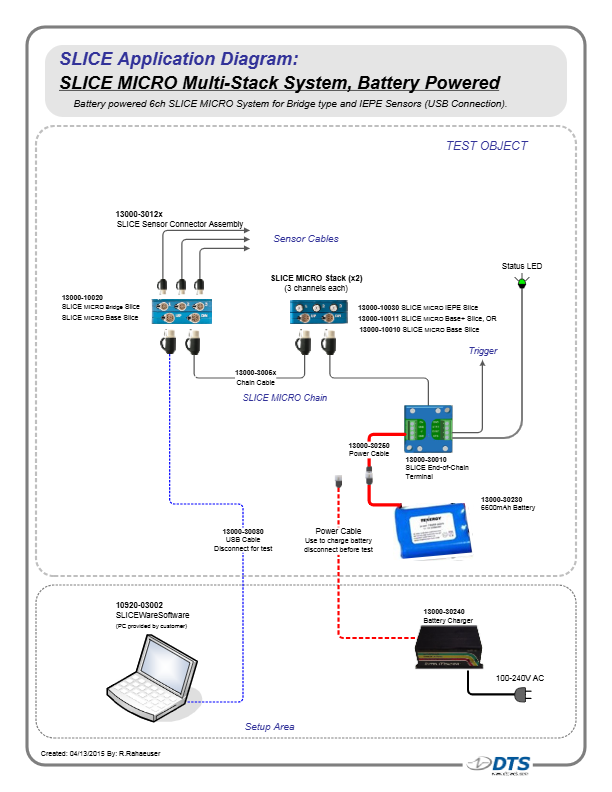

- APPLICATION DIAGRAMS
SLICE MICRO Base+
SLICE MICRO Base+ is the foundation of the SLICE MICRO data acquisition system. It includes the microprocessor, memory, and control circuits. One Base+ module is required for every SLICE MICRO stack. Each Base+ supports any combination of sensor layers, up to 24 channels per stack. SLICE MICRO Base+ is rugged and crashworthy.
SEE PRODUCT OPTIONS →
SLICE MICRO Bridge
SLICE MICRO Bridge includes three (3) external sensor inputs that support full and half-bridge sensors, strain gauges, voltage input, thermocouples, and more. SLICE MICRO Bridge is rugged and crashworthy.
SEE PRODUCT OPTIONS →
SLICE MICRO IEPE
SLICE MICRO IEPE includes three (3) external sensor inputs that support IEPE (piezoelectric) sensors. SLICE MICRO IEPE is rugged and crashworthy.
SEE PRODUCT OPTIONS →
SLICE MICRO Accel
SLICE MICRO Accel is a built-in sensor layer featuring three accelerometers. The triaxial sensor is available in multiple sensor ranges and bandwidths. SLICE MICRO Accel is rugged and crashworthy.
SEE PRODUCT OPTIONS →
SLICE MICRO ARS
SLICE MICRO ARS is a built-in sensor layer featuring three angular rate sensors. The triaxial sensor is available in multiple sensor ranges. SLICE MICRO ARS is rugged and crashworthy.
SEE PRODUCT OPTIONS →
Thermocouple Adapters
Thermocouple Adapters offer a simple plug-n-play solution for integrating temperature data with other measurement signals when using DTS SLICE data acquisition systems. Supports Type K thermocouples. Available in two temperature range options: -100 to +400 °C; 0 to 1250 °C.
SEE ACCESSORY OPTIONS →
SLICEWare Software
SLICEWare Software is an intuitive setup, control, and data viewing software for DTS data acquisition systems. SLICEWare software is designed to provide fast, easy-to-use tools for data collection.
SEE ACCESSORY OPTIONS →
DataPRO Software
DataPRO Software is a powerful setup, control, and data viewing software for DTS acquisition systems. The intuitive user interface is designed to help test engineers create, control, and manage every aspect of a test.
SEE ACCESSORY OPTIONS →
Range Expanders
Range Expanders are an adapter cable that allow DTS data acquisition systems to safely record voltage signals exceeding the standard input range. Available in ±20 V, ±40 V, ±60 V and ±800 V ranges. Various connector options available (LEMO, Omnetics, Tajimi).
SEE ACCESSORY OPTIONS →
SLICE IP68 Batteries
SLICE IP68 Power Pack is an external IP68-rated rechargeable battery pack available in 2200 mAH and 6600 mAh ratings. The SLICE IP68 data acquisition unit mounts directly to the SLICE IP8 Power Pack. SLICE IP68 Power Pack is rugged and crashworthy.
SEE ACCESSORY OPTIONS →
